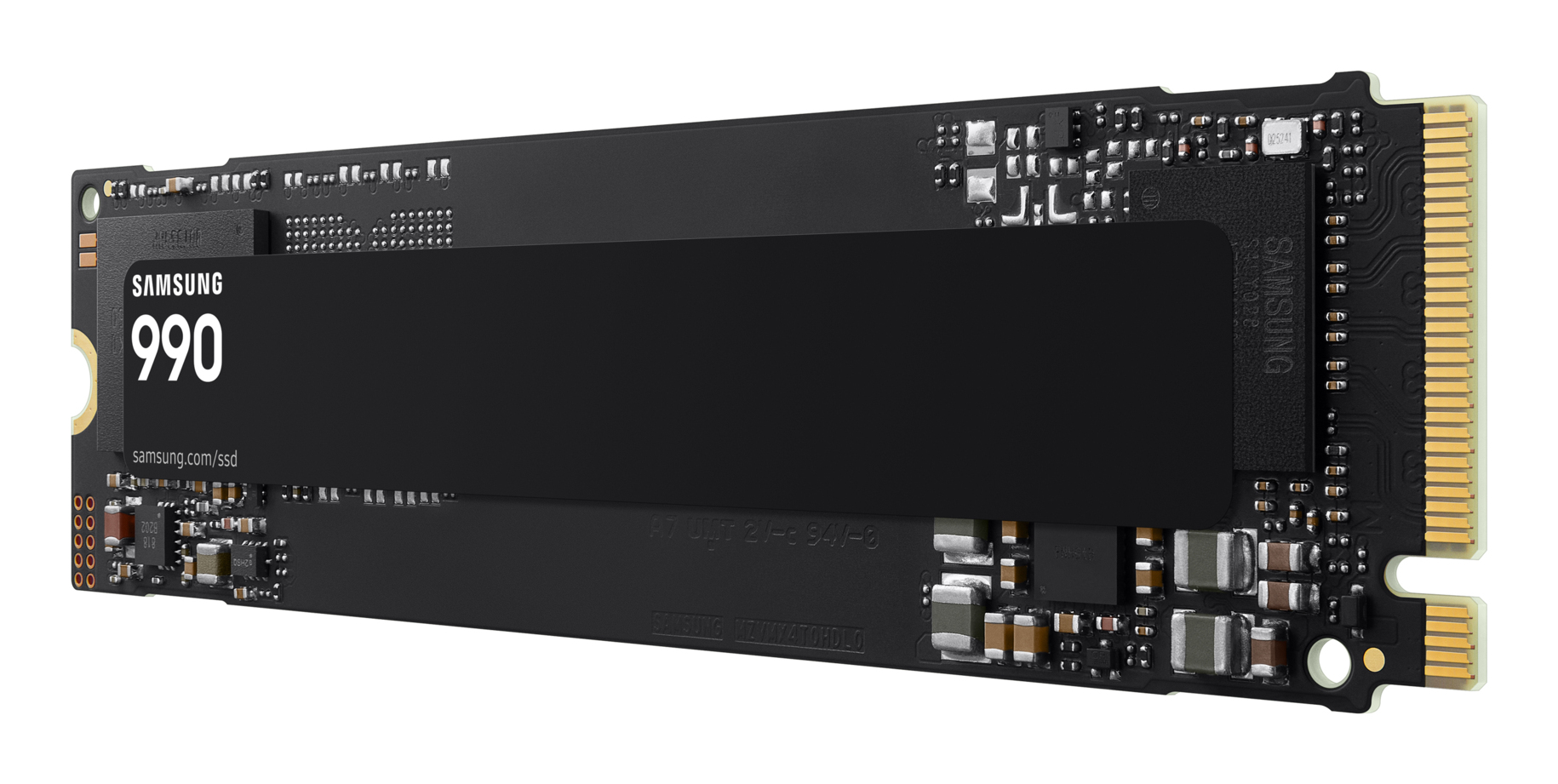

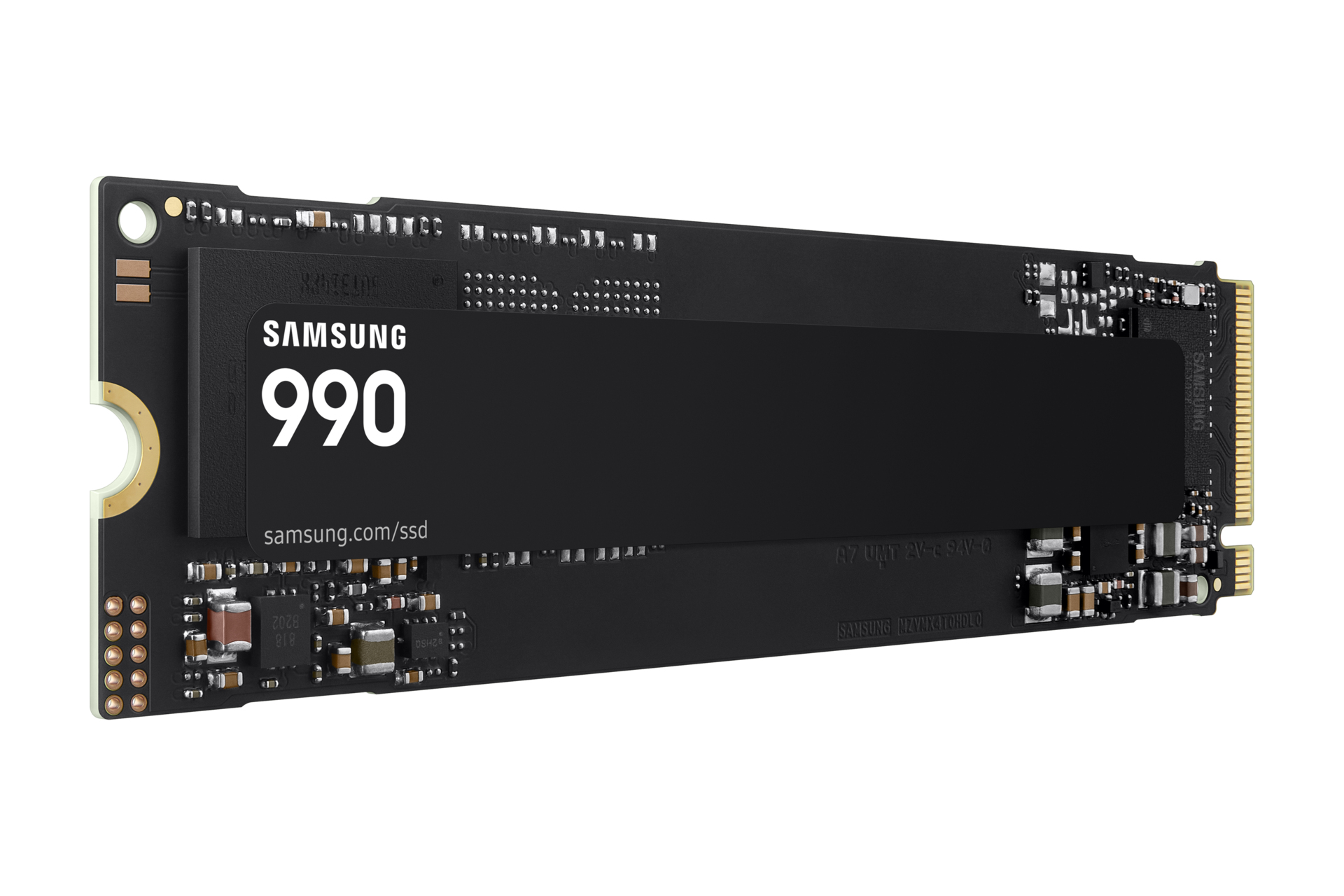

990 SSD PCIe
4.0x4 NVMe M.2
Model 990Part no. MZ-V9V2T0B/AMEAN 198957280801
31 specifications
- Storage2 TB
- ConnectivityPCI Express 4.0
- Operating voltage3.3 V
- Width80.2 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 2 TB
- Connectivity
- PCI Express 4.0
- Operating voltage
- 3.3 V
- Width
- 80.2 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Samsung
- Category
- Internal Solid State Drive
- Model
- 990
- Part numbers
- MZ-V9V2T0B/AM, MZ-V9V2T0BW, MZ-V9V1T0BW, MZ-V9V1T0B/AM
- EAN / UPC
- 198957280801, 8806099020705, 8806099020699, 198957280818
- Also known as
- Samsung 990 SSD PCIe 4.0x4 NVMe M.2
Specifications
31 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 2.0 |
| Memory type | V-NAND |
| Component for | PC |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES, TCG Opal 2.0 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 7250 MB/s |
| Write speed | 6450 MB/s |
| Random read (4KB) | 850000 IOPS |
| Random write (4KB) | 1200000 IOPS |
| PCI Express interface data lanes | x4 |
| DevSlp (device sleep) support | Yes |
| PCI Express CEM revision | 4.0 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (read) | 4.3 W |
| Power consumption (write) | 3.8 W |
| Power consumption (idle) | 0.055 W |
| Power consumption DevSlp (device sleep) | 3 mW |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80.2 mm |
| Depth | 2.38 mm |
| Height | 22.1 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1500 G |
