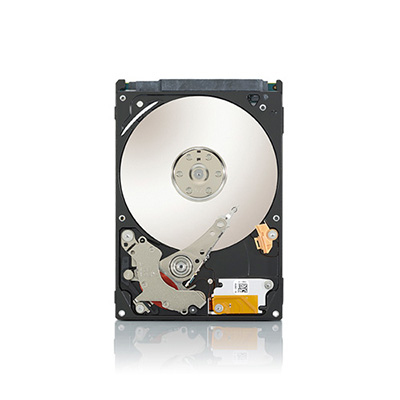

Surveillance HDD, 5TB
Model Surveillance HDD, 5TBPart no. ST5000VX0001EAN 8592978031442
19 specifications
- Storage5 TB
- ConnectivitySerial ATA III
- TypeHDD
- Weight780 g
- Power consumption (typical)8 W
- Operating temperature (T-T)5 - 60 °C
Overview
- Storage
- 5 TB
- Connectivity
- Serial ATA III
- Type
- HDD
- Weight
- 780 g
- Power consumption (typical)
- 8 W
- Operating temperature (T-T)
- 5 - 60 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- Surveillance HDD, 5TB
- Part number
- ST5000VX0001
- EAN / UPC
- 8592978031442, 763649064108, 809396065835, 4053162539143 +4 more
- Also known as
- Seagate SV35 Series Surveillance HDD, 5TB internal hard drive 128 MB 3.5" Serial ATA III
Specifications
19 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 5 TB |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | Surveillance system |
| Storage drive buffer size | 128 MB |
| Bytes per sector | 4096 |
| Start/stop cycles | 300000 |
| Mean time between failures (MTBF) | 1000000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 8 W |
| Power consumption (standby) | 0.5 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 1.8 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 780 g |
