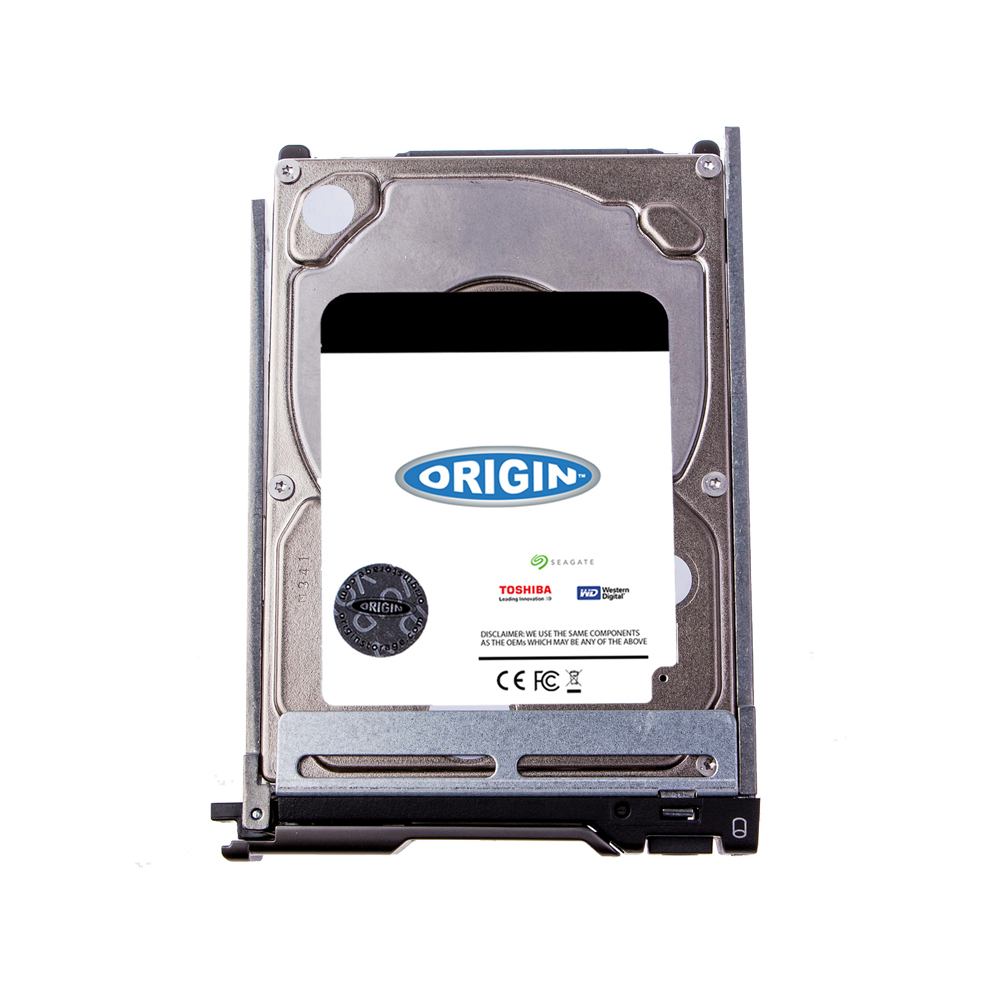

1TB 7.2K PE M520/M620/M820
2.5in Nearline SATA H/S HD Kit
Model DELL-1000NLSA/7-S15EAN 5054484572107
48 specifications
- Storage1 TB
- ConnectivityNL-SATA
- TypeHDD
- Weight320 g
- Power consumption (idle)3.31 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 1 TB
- Connectivity
- NL-SATA
- Type
- HDD
- Weight
- 320 g
- Power consumption (idle)
- 3.31 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Origin Storage
- Category
- Internal Hard Drive
- Model
- DELL-1000NLSA/7-S15
- Part number
- DELL-1000NLSA/7-S15
- EAN / UPC
- 5054484572107, 5055146596394
- Also known as
- Origin Storage 1TB 7.2K PE M520/M620/M820 2.5in Nearline SATA H/S HD Kit
Specifications
48 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 1 TB |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| Interface | NL-SATA |
| Type | HDD |
| Component for | Server/workstation |
| Hot-swap | No |
| Storage drive buffer size | 64 MB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 115 MiB/s |
| HDD number of cylinders | 16383 |
| HDD number of heads | 16 |
| Read seek time | 7.5 ms |
| Write seek time | 8.5 ms |
| Full stroke seek time | 18.08 ms |
| Track to track seek time | 0.44 ms |
| Average latency | 4.16 ms |
| 24/7 operation | No |
| Bytes per sector | 512 |
| Refurbished | No |
| Mean time between failures (MTBF) | 1400000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (idle) | 3.31 W |
| Power consumption (read) | 5.21 W |
| Power consumption (write) | 6 W |
| Operating voltage | 5 V |
| Start-up current | 18.35 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 0.5 G |
| Non-operating vibration | 3 G |
| Operating altitude | -61 - 3048 m |
| Non-operating altitude | -61 - 12210 m |
| Operating shock | 70 G |
| Non-operating shock | 400 G |
Packaging content
| Specification | Value |
|---|---|
| Storage drive adapter included | No |
| Storage drive caddy included | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70.1 mm |
| Depth | 100.5 mm |
| Height | 15 mm |
| Weight | 320 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Drive ready time | 20 s |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Compatible products | Dell PE M520/M620/M820 |
