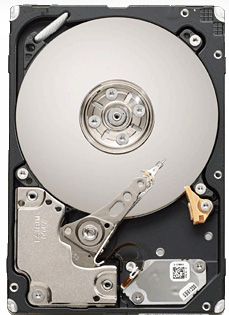

Savvio ST9600204FC-RF internal hard drive
600 GB 10000 RPM 16 MB 2.5" SAS
Model ST9600204FC-RF
30 specifications
- Storage600 GB
- ConnectivitySAS
- TypeHDD
- Weight208 g
- Power consumption (typical)4.6 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 600 GB
- Connectivity
- SAS
- Type
- HDD
- Weight
- 208 g
- Power consumption (typical)
- 4.6 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST9600204FC-RF
- Part number
- ST9600204FC-RF
- Also known as
- Seagate Savvio ST9600204FC-RF internal hard drive 600 GB 10000 RPM 16 MB 2.5" SAS
Specifications
30 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 600 GB |
| HDD speed | 10000 RPM |
| HDD size | 2.5" |
| Interface | SAS |
| Type | HDD |
| Storage drive buffer size | 16 MB |
| HDD number of heads | 6 |
| Read seek time | 3.89 ms |
| Write seek time | 4.54 ms |
| Average latency | 3 ms |
| Refurbished | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4.6 W |
| Operating voltage | 5 V |
| Start-up current | 0.78 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating vibration | 0.5 G |
| Non-operating vibration | 3 G |
| Operating shock | 40 G |
| Non-operating shock | 400 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100.2 mm |
| Height | 14.8 mm |
| Weight | 208 g |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 4 Gbit/s |
| Disks included quantity | 3 pc(s) |
| Fibre Channel | Yes |
| Internal | Yes |
| Dimensions (W x D x H) (imperial) | 69.8 x 100.2 x 14.8 mm (2.75 x 3.94 x 0.583") |
| Weight (imperial) | 0.227 kg (0.5 lbs) |
