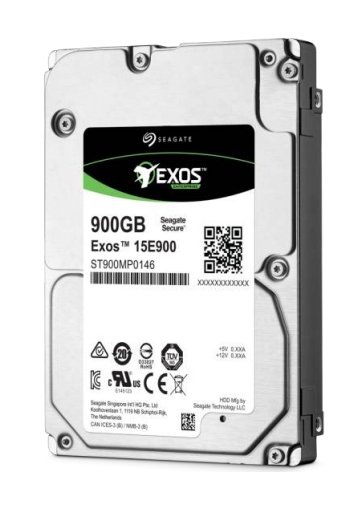

Enterprise ST900MP0166 internal hard drive
900 GB 15000 RPM 256 MB 2.5" SAS
Model ST900MP0166
29 specifications
- Storage900 GB
- ConnectivitySAS
- TypeHDD
- Weight218 g
- Power consumption (typical)7.6 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 900 GB
- Connectivity
- SAS
- Type
- HDD
- Weight
- 218 g
- Power consumption (typical)
- 7.6 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST900MP0166
- Part number
- ST900MP0166
- Also known as
- Seagate Enterprise ST900MP0166 internal hard drive 900 GB 15000 RPM 256 MB 2.5" SAS
Specifications
29 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 900 GB |
| HDD speed | 15000 RPM |
| HDD size | 2.5" |
| Interface | SAS |
| Type | HDD |
| Component for | Server/workstation |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 12 Gbit/s |
| HDD sustained transfer rate | 315 MiB/s |
| HDD number of heads | 6 |
| Average latency | 2 ms |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.6 W |
| Power consumption (idle) | 5.7 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 0.45 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 0.5 G |
| Non-operating vibration | 2.4 G |
| Operating shock | 40 G |
| Non-operating shock | 400 G |
Technical details
| Specification | Value |
|---|---|
| Doesn't contain | Halogen |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69.8 mm |
| Depth | 100.5 mm |
| Height | 15 mm |
| Weight | 218 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet | 60 pc(s) |
Other features
| Specification | Value |
|---|---|
| Certification | UL/cUL 60950-1, EN 60950-1 |
