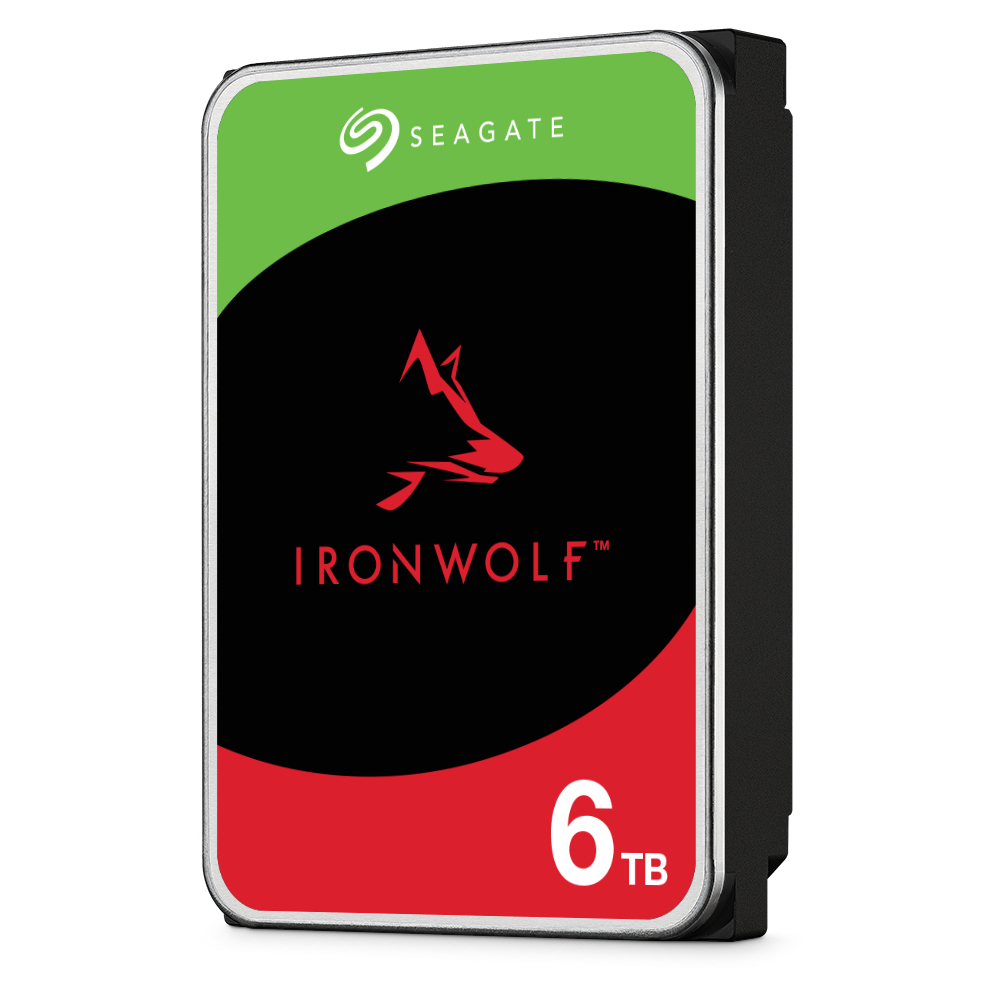

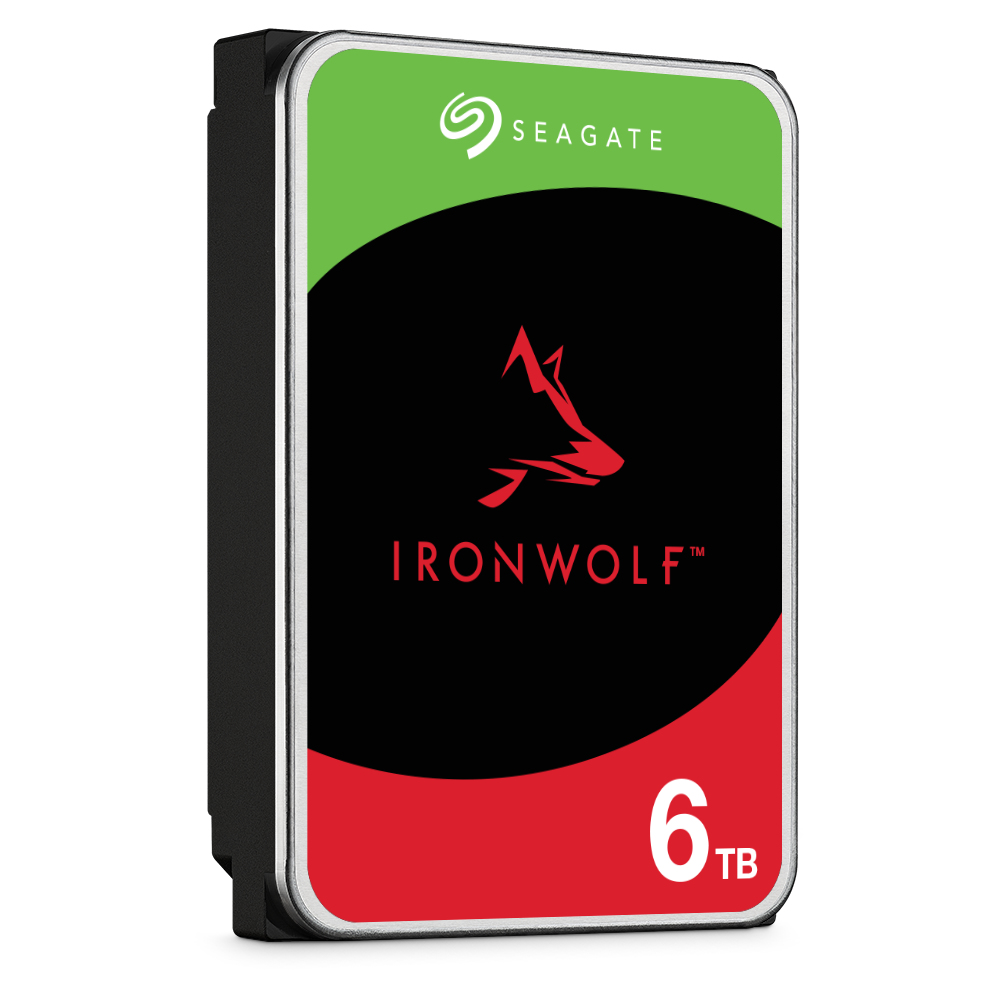

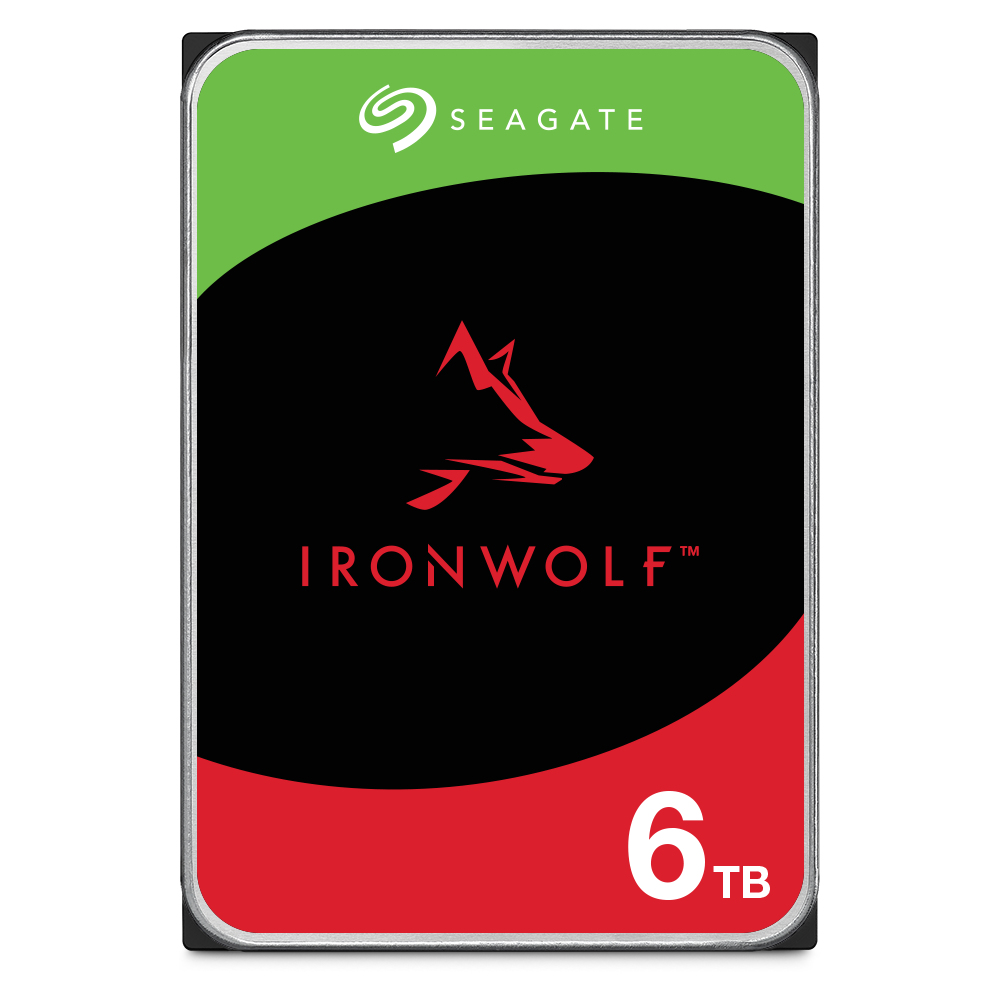

IronWolf ST6000VN001_2ER internal hard drive
6 TB 5400 RPM 256 MB 2.5" Serial ATA III
Model ST6000VN001_2EREAN 8719706013819
35 specifications
- Storage6 TB
- ConnectivitySerial ATA III
- Noise2.7 dB
- TypeHDD
- Weight610 g
- Power consumption (typical)5.3 W
Overview
- Storage
- 6 TB
- Connectivity
- Serial ATA III
- Noise
- 2.7 dB
- Type
- HDD
- Weight
- 610 g
- Power consumption (typical)
- 5.3 W
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST6000VN001_2ER
- Part number
- ST6000VN001_2ER
- EAN / UPC
- 8719706013819
- Also known as
- Seagate IronWolf ST6000VN001_2ER internal hard drive 6 TB 5400 RPM 256 MB 2.5" Serial ATA III
Specifications
35 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 6 TB |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | NAS |
| Hot-swap | No |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 190 MiB/s |
| HDD number of heads | 8 |
| Average latency | 6 ms |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^14 bits read |
| Error Recovery Control (ERC) | Yes |
| Rotational Vibration (RV) sensors | Yes |
| Start/stop cycles | 600000 |
| Workload rate limit | 180 TB/year |
| Noise level (idle) | 2.7 dB |
| Mean time between failures (MTBF) | 1000000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5.3 W |
| Power consumption (idle) | 3.4 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 12 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating shock | 70 G |
| Non-operating shock | 250 G |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 610 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
