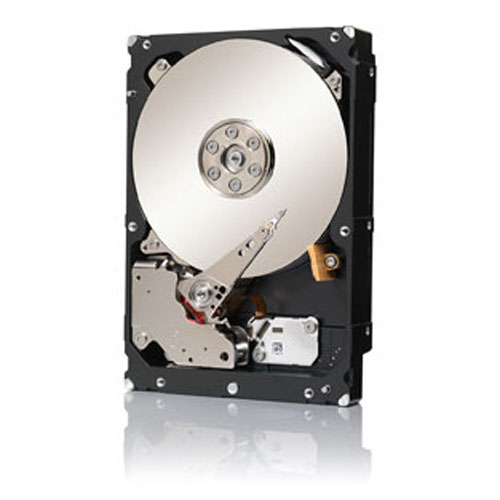

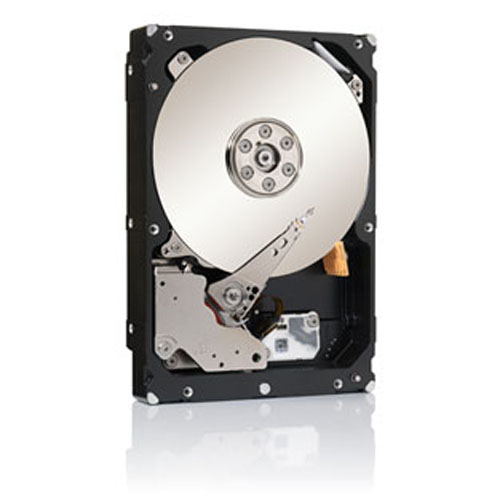

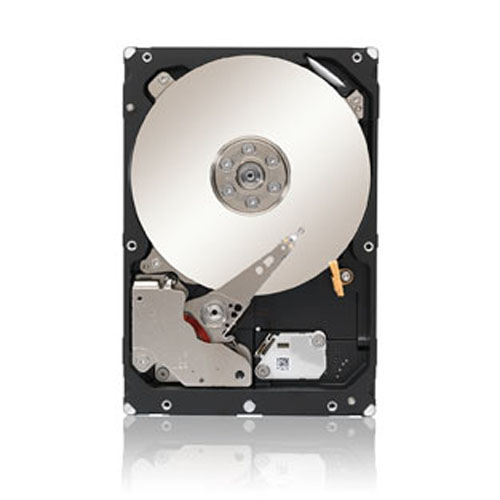

Constellation ST4000NM003 internal hard drive
4 TB 7200 RPM 128 MB 3.5" Serial ATA III
Model ST4000NM003
24 specifications
- Storage4 TB
- ConnectivitySerial ATA III
- Weight700 g
- Power consumption (typical)11.27 W
- Operating temperature (T-T)5 - 60 °C
- Width101.8 mm
Overview
- Storage
- 4 TB
- Connectivity
- Serial ATA III
- Weight
- 700 g
- Power consumption (typical)
- 11.27 W
- Operating temperature (T-T)
- 5 - 60 °C
- Width
- 101.8 mm
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST4000NM003
- Part number
- ST4000NM003
- Also known as
- Seagate Constellation ST4000NM003 internal hard drive 4 TB 7200 RPM 128 MB 3.5" Serial ATA III
Specifications
24 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 4 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Component for | NAS |
| Storage drive buffer size | 128 MB |
| Average latency | 4.16 ms |
| Bytes per sector | 512 |
| Mean time between failures (MTBF) | 1400000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 11.27 W |
| Power consumption (idle) | 6.73 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Non-operating vibration | 0.25 G |
| Operating shock | 70 G |
| Non-operating shock | 300 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 700 g |
Other features
| Specification | Value |
|---|---|
| Power requirements | +12V & +5V |
| Data transfer rate | 6 Gbit/s |
| Internal | Yes |
