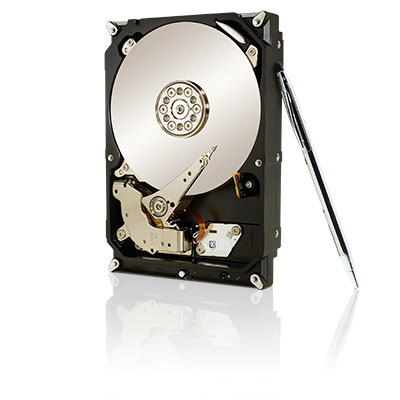

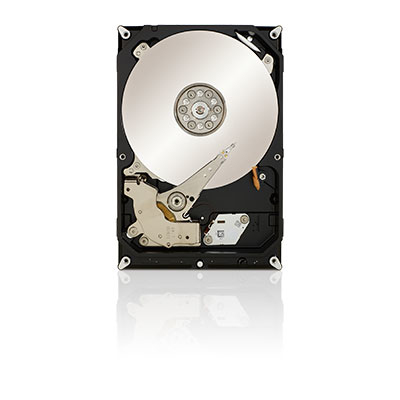

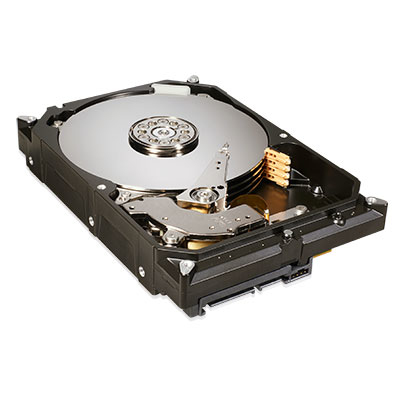

Desktop SSHD ST4000DX001 internal hard drive
4 TB 64 MB 3.5" Serial ATA III
Model ST4000DX001Part no. ST4000DX001-RFBEAN 5715063280317
19 specifications
- Storage4 TB
- ConnectivitySerial ATA III
- TypeHybrid-HDD
- Weight610 g
- Power consumption (typical)7.5 W
- Operating temperature (T-T)0 - 60 °C
Overview
- Storage
- 4 TB
- Connectivity
- Serial ATA III
- Type
- Hybrid-HDD
- Weight
- 610 g
- Power consumption (typical)
- 7.5 W
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST4000DX001
- Part number
- ST4000DX001-RFB
- EAN / UPC
- 5715063280317
- Also known as
- Seagate Desktop SSHD ST4000DX001 internal hard drive 4 TB 64 MB 3.5" Serial ATA III
Specifications
19 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 4 TB |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | Hybrid-HDD |
| Storage drive buffer size | 64 MB |
| HDD number of heads | 8 |
| Read seek time | 12 ms |
| Write seek time | 12 ms |
| Start/stop cycles | 300000 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.5 W |
| Power consumption (standby) | 0.75 W |
| Power consumption (idle) | 6.2 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 610 g |
