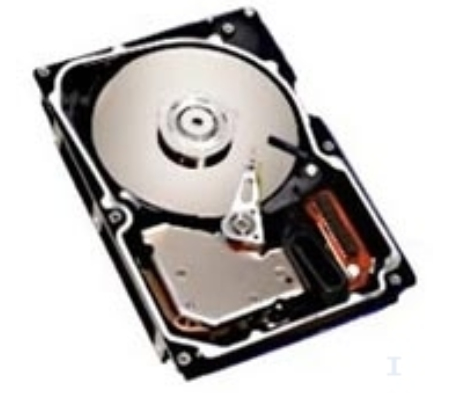

Cheetah ST373307FC internal hard drive
73.4 GB 10000 RPM 8 MB 3.5" Fibre Channel
Model ST373307FCPart no. ST373307FC-RFB
30 specifications
- Storage73.4 GB
- ConnectivityFibre Channel
- TypeHDD
- Weight734 g
- Power consumption (idle)7.9 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 73.4 GB
- Connectivity
- Fibre Channel
- Type
- HDD
- Weight
- 734 g
- Power consumption (idle)
- 7.9 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST373307FC
- Part number
- ST373307FC-RFB
- Also known as
- Seagate Cheetah ST373307FC internal hard drive 73.4 GB 10000 RPM 8 MB 3.5" Fibre Channel
Specifications
30 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 73.4 GB |
| HDD speed | 10000 RPM |
| HDD size | 3.5" |
| Interface | Fibre Channel |
| Type | HDD |
| Component for | Server/workstation |
| Storage drive buffer size | 8 MB |
| HDD number of heads | 2 |
| Read seek time | 4.7 ms |
| Write seek time | 5.2 ms |
| Track to track seek time | 0.3 ms |
| Average latency | 2.99 ms |
| Mean time between failures (MTBF) | 1200000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (idle) | 7.9 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 0.97 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 0.5 G |
| Non-operating vibration | 5 G |
| Operating altitude | -304.8 - 3048 m |
| Non-operating altitude | -304.8 - 12192 m |
| Operating shock | 25 G |
| Non-operating shock | 225 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 146.1 mm |
| Height | 25.4 mm |
| Weight | 734 g |
