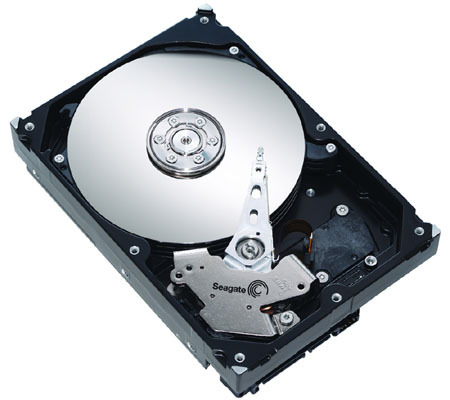

Desktop HDD ST3500620SS internal hard drive
500 GB 7200 RPM 16 MB SAS
Model ST3500620SSPart no. ST3500620SS-RFB
21 specifications
- Storage500 GB
- ConnectivitySAS
- TypeHDD
- Weight543 g
- Power consumption (typical)12.5 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 500 GB
- Connectivity
- SAS
- Type
- HDD
- Weight
- 543 g
- Power consumption (typical)
- 12.5 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST3500620SS
- Part number
- ST3500620SS-RFB
- Also known as
- Seagate Desktop HDD ST3500620SS internal hard drive 500 GB 7200 RPM 16 MB SAS
Specifications
21 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 500 GB |
| HDD speed | 7200 RPM |
| Interface | SAS |
| Type | HDD |
| Component for | Server/workstation |
| Storage drive buffer size | 16 MB |
| Read seek time | 8.5 ms |
| Write seek time | 9.5 ms |
| Average latency | 4.16 ms |
| Mean time between failures (MTBF) | 1200000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12.5 W |
| Power consumption (idle) | 9 W |
| Start-up current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating shock | 63 G |
| Non-operating shock | 300 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 543 g |
