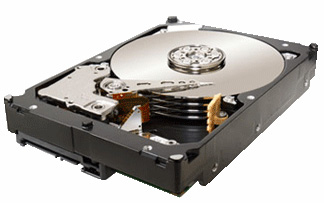

Constellation ST3500414SS internal hard drive
500 GB 7200 RPM 16 MB 3.5"
Model ST3500414SSPart no. ST3500414SS-RFBEAN 5704174021537
19 specifications
- Storage500 GB
- Weight610 g
- Power consumption (typical)10.4 W
- Operating temperature (T-T)5 - 60 °C
- Width101.6 mm
Overview
- Storage
- 500 GB
- Weight
- 610 g
- Power consumption (typical)
- 10.4 W
- Operating temperature (T-T)
- 5 - 60 °C
- Width
- 101.6 mm
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST3500414SS
- Part number
- ST3500414SS-RFB
- EAN / UPC
- 5704174021537
- Also known as
- Seagate Constellation ST3500414SS internal hard drive 500 GB 7200 RPM 16 MB 3.5"
Specifications
19 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 500 GB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Storage drive buffer size | 16 MB |
| Read seek time | 8.5 ms |
| Write seek time | 9.5 ms |
| Track to track seek time | 0.5 ms |
| Average latency | 4.16 ms |
| Mean time between failures (MTBF) | 1200000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10.4 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 1.89 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 610 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
