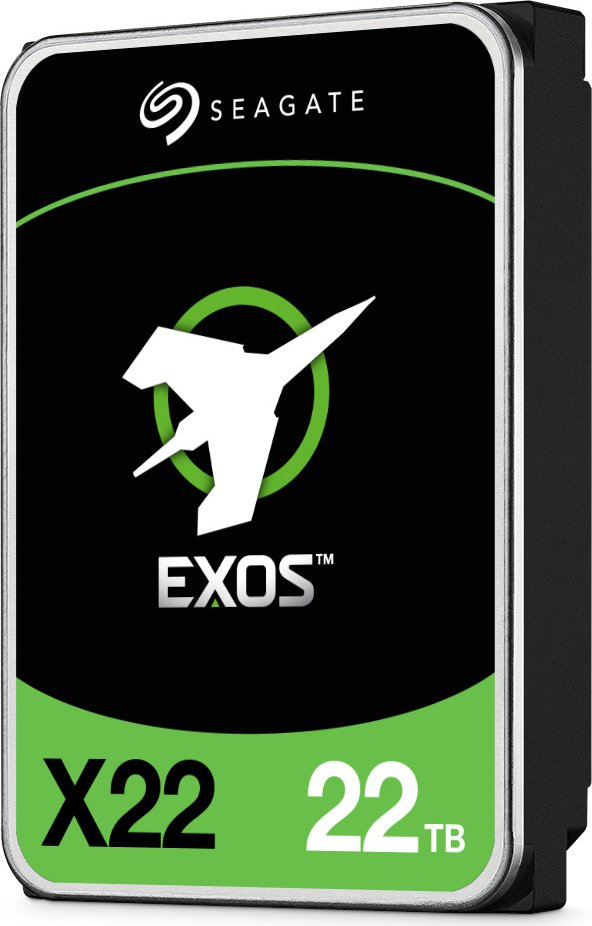

ST22000NM000E internal hard drive
22 TB 7200 RPM 512 MB 3.5" SAS
Model ST22000NM000EEAN 763649171042
22 specifications
- Storage22 TB
- ConnectivitySAS
- TypeHDD
- Weight680 g
- Power consumption (typical)5.5 W
- Operating temperature (T-T)10 - 60 °C
Overview
- Storage
- 22 TB
- Connectivity
- SAS
- Type
- HDD
- Weight
- 680 g
- Power consumption (typical)
- 5.5 W
- Operating temperature (T-T)
- 10 - 60 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST22000NM000E
- Part numbers
- ST22000NM000E, ST22000NM000E-20PK
- EAN / UPC
- 763649171042, 8719706428088
- Also known as
- Seagate ST22000NM000E internal hard drive 22 TB 7200 RPM 512 MB 3.5" SAS
Specifications
22 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 22 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | SAS |
| Type | HDD |
| Component for | Server/workstation |
| Storage drive buffer size | 512 MB |
| Average latency | 4.16 ms |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Rotational Vibration (RV) sensors | Yes |
| Mean time to failure (MTTF) | 2500000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5.5 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 60 °C |
| Non-operating vibration | 2.27 G |
| Operating shock | 40 G |
| Non-operating shock | 200 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 680 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
