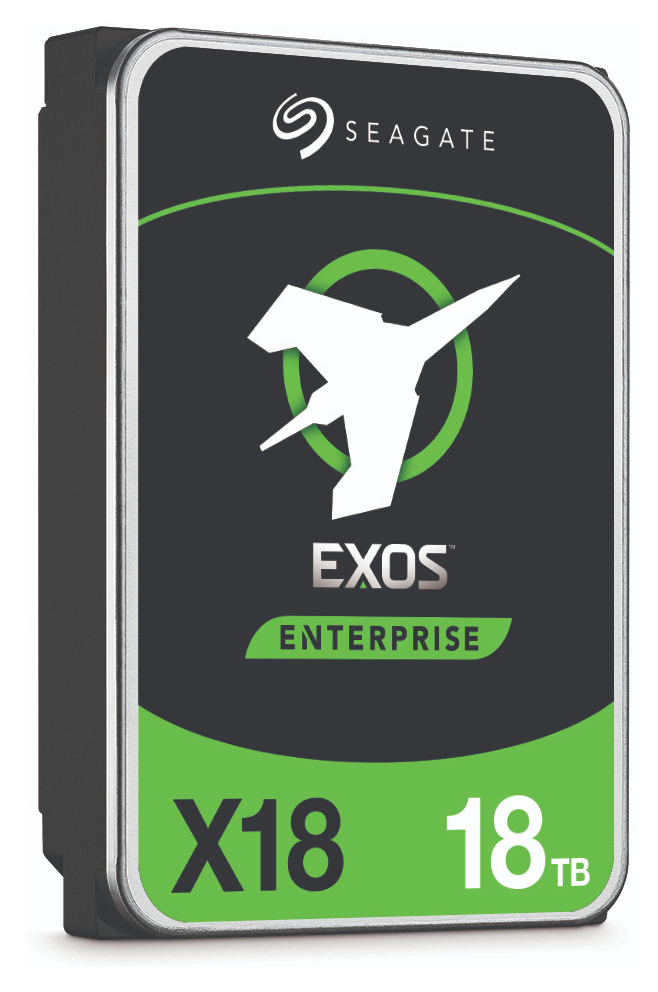

Enterprise ST18000NM004J internal hard drive
18 TB 7200 RPM 256 MB 3.5" SAS
Model ST18000NM004JEAN 763649138915
27 specifications
- Storage18 TB
- ConnectivitySAS
- TypeHDD
- Weight670 g
- Power consumption (idle)5.8 W
- Operating temperature (T-T)5 - 60 °C
Overview
- Storage
- 18 TB
- Connectivity
- SAS
- Type
- HDD
- Weight
- 670 g
- Power consumption (idle)
- 5.8 W
- Operating temperature (T-T)
- 5 - 60 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST18000NM004J
- Part numbers
- ST18000NM004J, ST18000NM004J-20PK
- EAN / UPC
- 763649138915, 3807000009920, 8719706020480
- Also known as
- Seagate Enterprise ST18000NM004J internal hard drive 18 TB 7200 RPM 256 MB 3.5" SAS
Specifications
27 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 18 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | SAS |
| Type | HDD |
| Component for | Disk array |
| Hot-swap | Yes |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 12 Gbit/s |
| HDD sustained transfer rate | 258 MiB/s |
| HDD average transfer rate | 270 MB/s |
| Average latency | 4.16 ms |
| Rotational Vibration (RV) sensors | Yes |
| Mean time between failures (MTBF) | 2500000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (idle) | 5.8 W |
| Power consumption (read) | 9.9 W |
| Power consumption (write) | 7 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 60 °C |
| Non-operating vibration | 2.27 G |
| Operating shock | 50 G |
| Non-operating shock | 200 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 670 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
