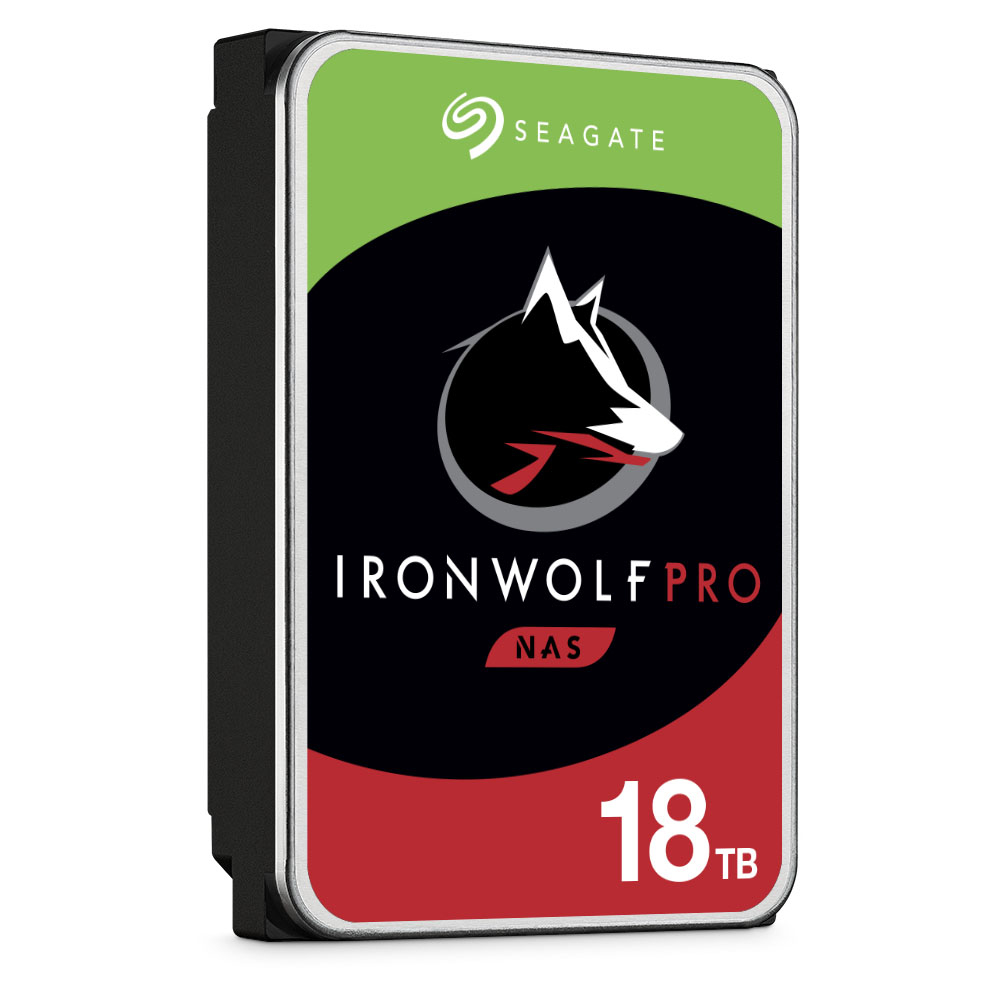

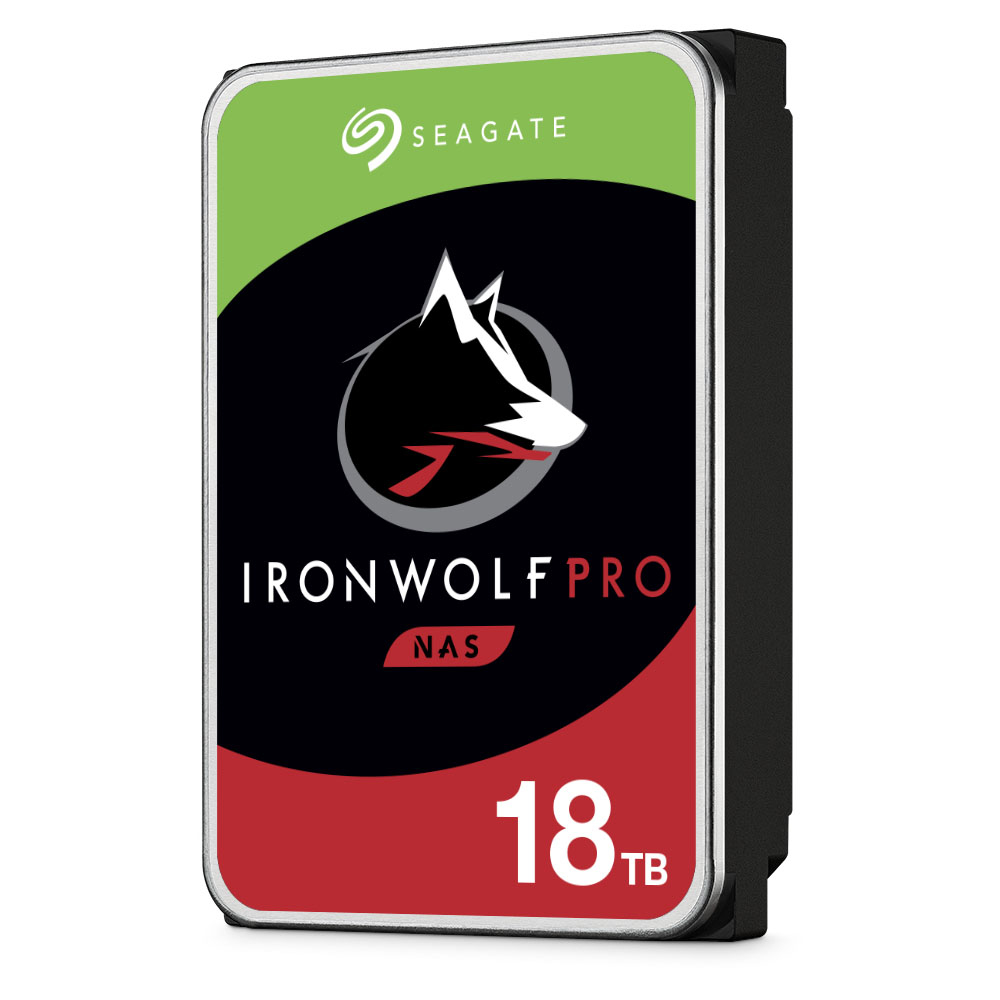

IronWolf Pro ST18000NE000 internal hard drive
18 TB 7200 RPM 256 MB 3.5" Serial ATA III
Model ST18000NE000Part no. ST18000NE000-20PKEAN 8719706026789
30 specifications
- Storage18 TB
- ConnectivitySerial ATA III
- TypeHDD
- Weight670 g
- Power consumption (typical)8 W
- Operating temperature (T-T)5 - 65 °C
Overview
- Storage
- 18 TB
- Connectivity
- Serial ATA III
- Type
- HDD
- Weight
- 670 g
- Power consumption (typical)
- 8 W
- Operating temperature (T-T)
- 5 - 65 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST18000NE000
- Part numbers
- ST18000NE000-20PK, ST18000NE000
- EAN / UPC
- 8719706026789, 763649146248, 5415247262558, 5715063003602 +2 more
- Also known as
- Seagate IronWolf Pro ST18000NE000 internal hard drive 18 TB 7200 RPM 256 MB 3.5" Serial ATA III
Specifications
30 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 18 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | NAS |
| Hot-swap | Yes |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD average transfer rate | 300 MB/s |
| Access time | 4.16 ms |
| Rotational Vibration (RV) sensors | Yes |
| Workload rate limit | 300 TB/year |
| Mean time between failures (MTBF) | 1200000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 8 W |
| Power consumption (standby) | 1.25 W |
| Power consumption (PowerSave) | 1 W |
| Power consumption (idle) | 5.2 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating vibration | 2.27 G |
| Operating shock | 50 G |
| Non-operating shock | 200 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 670 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
