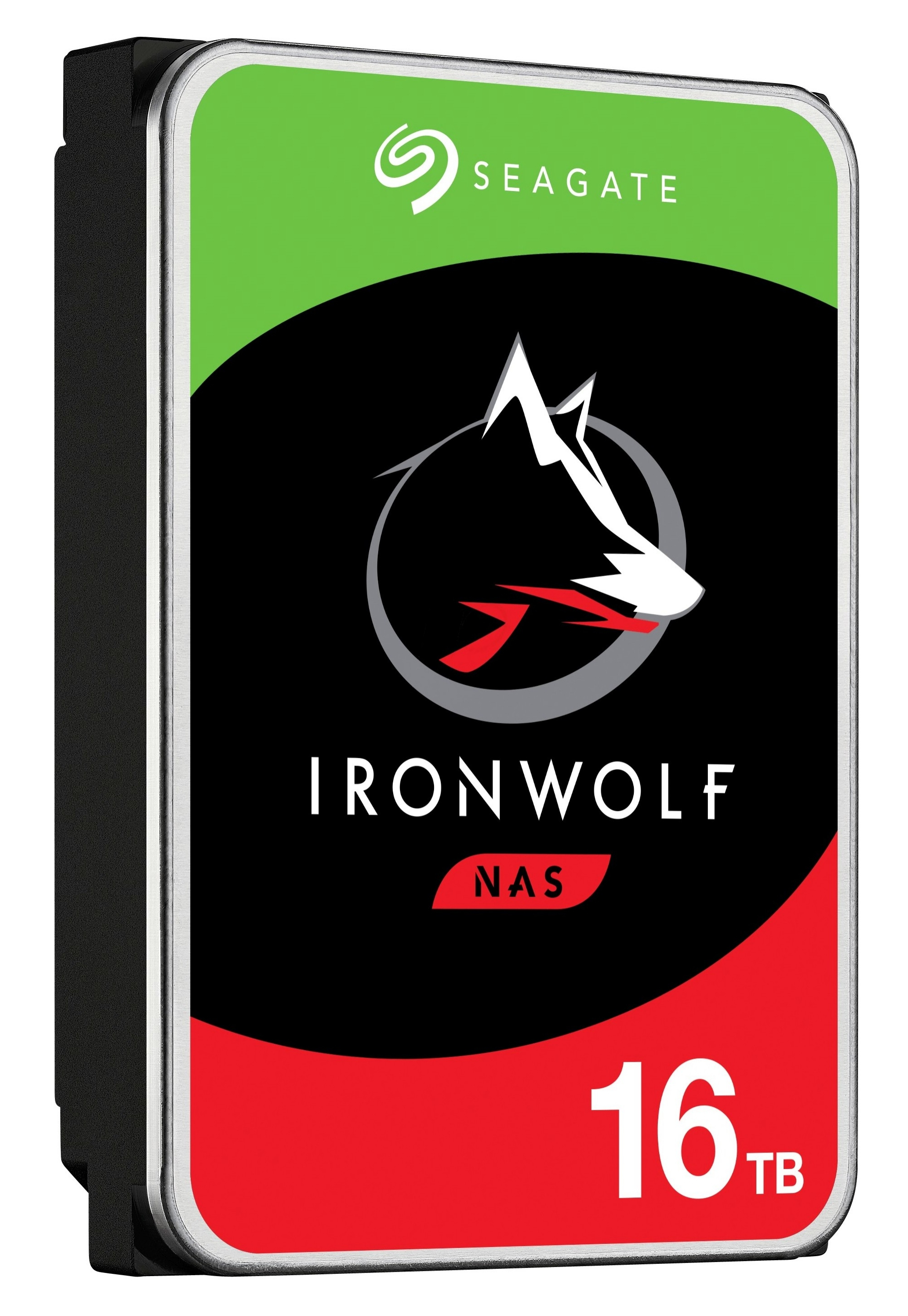

IronWolf ST16000VN001 internal hard drive
16 TB 7200 RPM 256 MB 3.5" Serial ATA III
Model ST16000VN001Part no. ST16000VN001-20PKEAN 8719706008686
30 specifications
- Storage16 TB
- ConnectivitySerial ATA III
- TypeHDD
- Weight690 g
- Power consumption (typical)7.9 W
- Operating temperature (T-T)5 - 70 °C
Overview
- Storage
- 16 TB
- Connectivity
- Serial ATA III
- Type
- HDD
- Weight
- 690 g
- Power consumption (typical)
- 7.9 W
- Operating temperature (T-T)
- 5 - 70 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST16000VN001
- Part numbers
- ST16000VN001-20PK, ST16000VN001
- EAN / UPC
- 8719706008686, 763649069028, 763649124277, 5706998938145 +2 more
- Also known as
- Seagate IronWolf ST16000VN001 internal hard drive 16 TB 7200 RPM 256 MB 3.5" Serial ATA III
Specifications
30 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 16 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | NAS |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 6 Gbit/s |
| Start/stop cycles | 600000 |
| Workload rate limit | 180 TB/year |
| Mean time between failures (MTBF) | 1000000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.9 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (off) | 0.8 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 1.8 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating altitude | -304.8 - 12192 m |
| Operating shock | 70 G |
| Non-operating shock | 250 G |
Technical details
| Specification | Value |
|---|---|
| Doesn't contain | Halogen |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 690 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Certification | CE |
