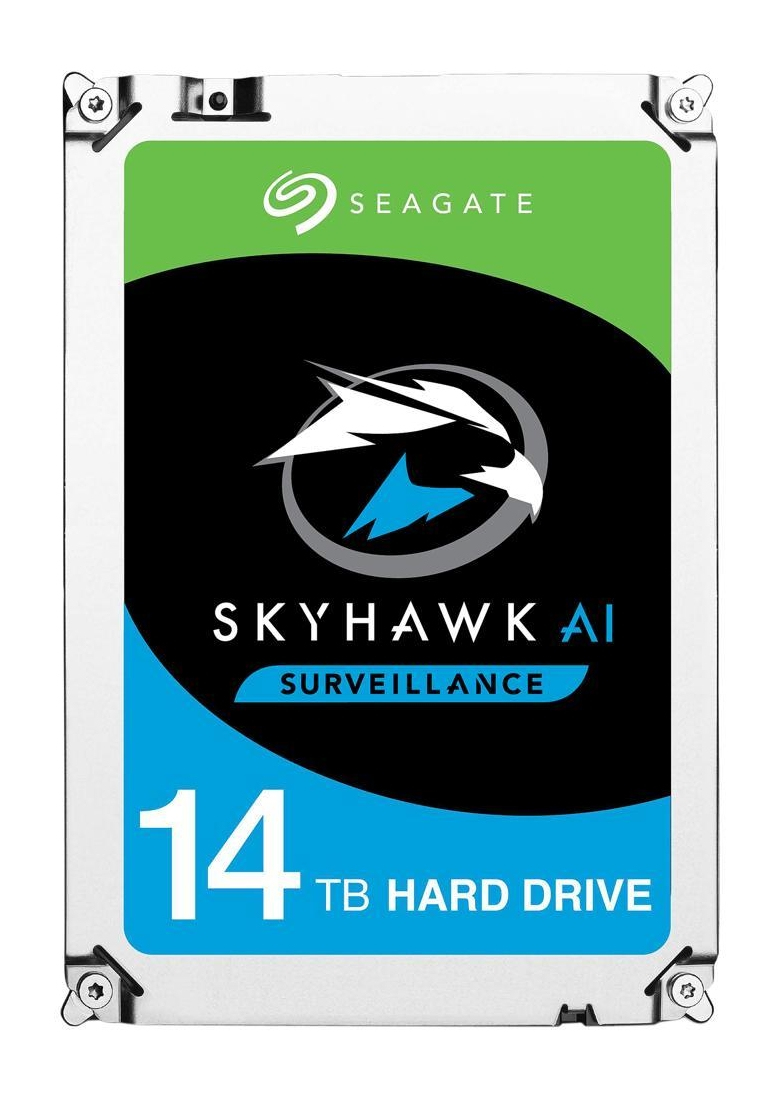

ST14000VE0008 internal hard drive
14 TB 256 MB 3.5" Serial ATA III
Model ST14000VE0008Part no. ST14000VE0008-DCEAN 5704174018162
27 specifications
- Storage14 TB
- ConnectivitySerial ATA III
- TypeHDD
- Weight690 g
- Power consumption (typical)6.9 W
- Operating temperature (T-T)5 - 70 °C
Overview
- Storage
- 14 TB
- Connectivity
- Serial ATA III
- Type
- HDD
- Weight
- 690 g
- Power consumption (typical)
- 6.9 W
- Operating temperature (T-T)
- 5 - 70 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST14000VE0008
- Part number
- ST14000VE0008-DC
- EAN / UPC
- 5704174018162
- Also known as
- Seagate ST14000VE0008 internal hard drive 14 TB 256 MB 3.5" Serial ATA III
Specifications
27 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 14 TB |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | Surveillance system |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 250 MiB/s |
| Start/stop cycles | 300000 |
| Mean time between failures (MTBF) | 2000000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6.9 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 1.2 W |
| Power consumption (idle) | 4.9 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 1.8 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating altitude | -304.8 - 12192 m |
Packaging content
| Specification | Value |
|---|---|
| Storage drive adapter included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 690 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
