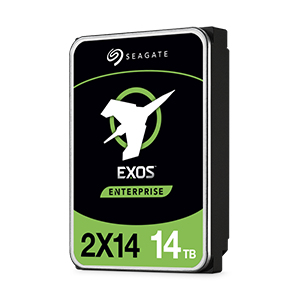

Enterprise ST14000NM0081 internal hard drive
14 TB 256 MB 3.5" SAS
Model ST14000NM0081EAN 7330381120565
28 specifications
- Storage14 TB
- ConnectivitySAS
- TypeHDD
- Weight685 g
- Power consumption (idle)7.2 W
- Operating temperature (T-T)5 - 60 °C
Overview
- Storage
- 14 TB
- Connectivity
- SAS
- Type
- HDD
- Weight
- 685 g
- Power consumption (idle)
- 7.2 W
- Operating temperature (T-T)
- 5 - 60 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST14000NM0081
- Part number
- ST14000NM0081
- EAN / UPC
- 7330381120565, 8719706026918
- Also known as
- Seagate Enterprise ST14000NM0081 internal hard drive 14 TB 256 MB 3.5" SAS
Specifications
28 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 14 TB |
| HDD size | 3.5" |
| Interface | SAS |
| Type | HDD |
| Component for | Surveillance system |
| Hot-swap | Yes |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 12 Gbit/s |
| HDD sustained transfer rate | 500 MiB/s |
| HDD average transfer rate | 524 MB/s |
| Average latency | 4.16 ms |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Rotational Vibration (RV) sensors | Yes |
| 24/7 operation | Yes |
| Mean time between failures (MTBF) | 2500000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (idle) | 7.2 W |
| Power consumption (read) | 13.5 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 60 °C |
| Non-operating vibration | 2.27 G |
| Operating shock | 50 G |
| Non-operating shock | 100 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 26.1 mm |
| Height | 147 mm |
| Weight | 685 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
