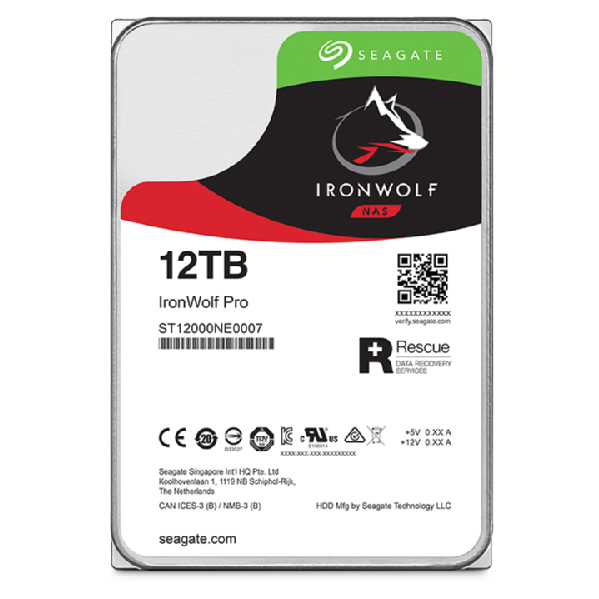

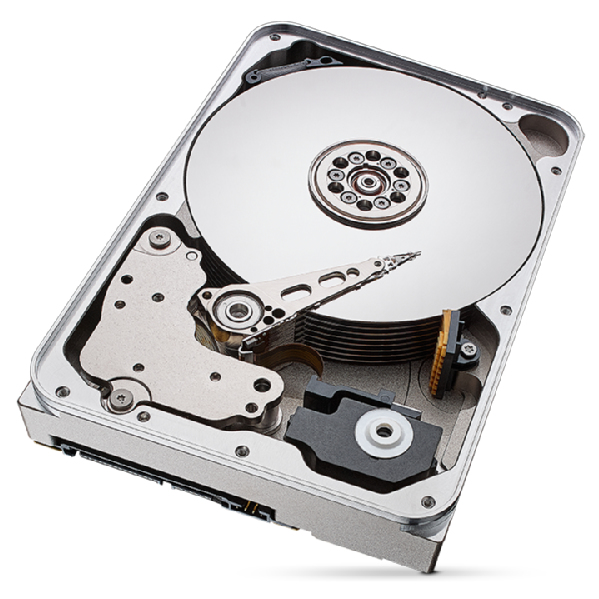

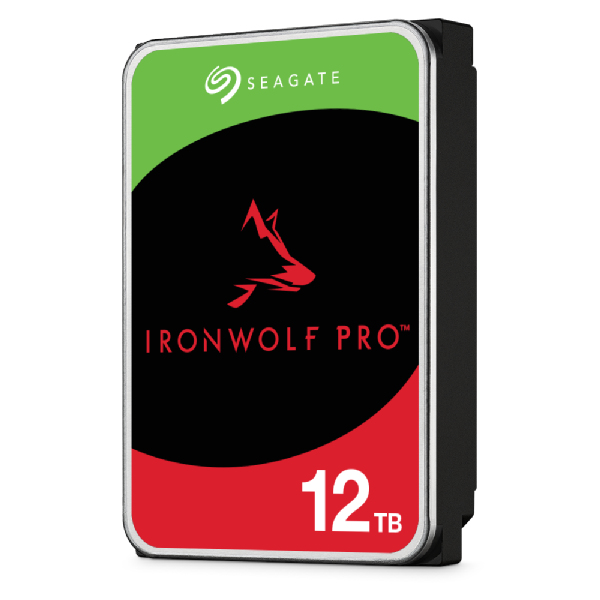

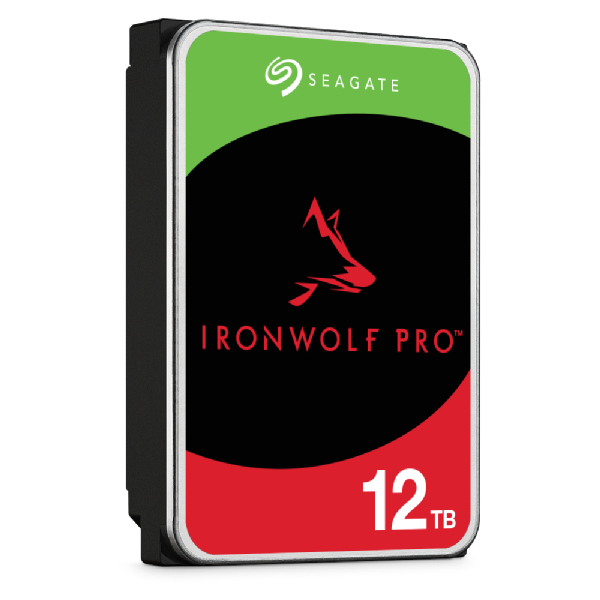

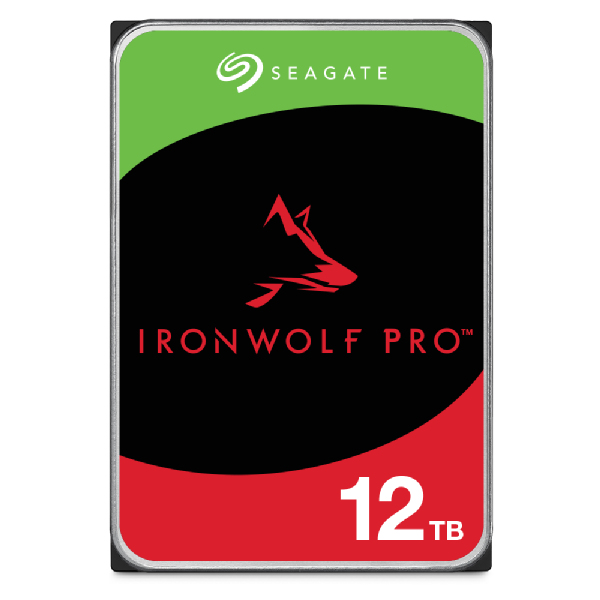

IronWolf Pro ST12000NT001 internal hard drive
12 TB 7200 RPM 256 MB 3.5" Serial ATA III
Model ST12000NT001Part no. ST12000NT001_2EAN 8719706432825
29 specifications
- Storage12 TB
- ConnectivitySerial ATA III
- Noise20 dB
- TypeHDD
- Weight670 g
- Power consumption (typical)7.8 W
Overview
- Storage
- 12 TB
- Connectivity
- Serial ATA III
- Noise
- 20 dB
- Type
- HDD
- Weight
- 670 g
- Power consumption (typical)
- 7.8 W
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST12000NT001
- Part numbers
- ST12000NT001_2, ST12000NT001, ST12000NT001_8, ST12000NT001_4, ST12000NT001_6
- EAN / UPC
- 8719706432825, 763649176290, 3807000012913, 5415247304111 +2 more
- Also known as
- Seagate IronWolf Pro ST12000NT001 internal hard drive 12 TB 7200 RPM 256 MB 3.5" Serial ATA III
Specifications
29 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 12 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | NAS |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 270 MiB/s |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Rotational Vibration (RV) sensors | Yes |
| Workload rate limit | 550 TB/year |
| Noise level (idle) | 20 dB |
| Mean time between failures (MTBF) | 2500000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.8 W |
| Power consumption (standby) | 1 W |
| Power consumption (off) | 1 W |
| Power consumption (idle) | 5 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Non-operating vibration | 2.27 G |
| Operating shock | 50 G |
| Non-operating shock | 200 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 670 g |
