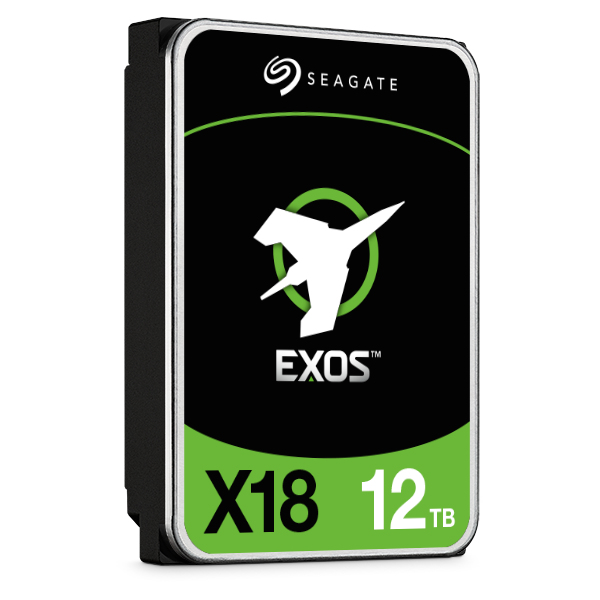

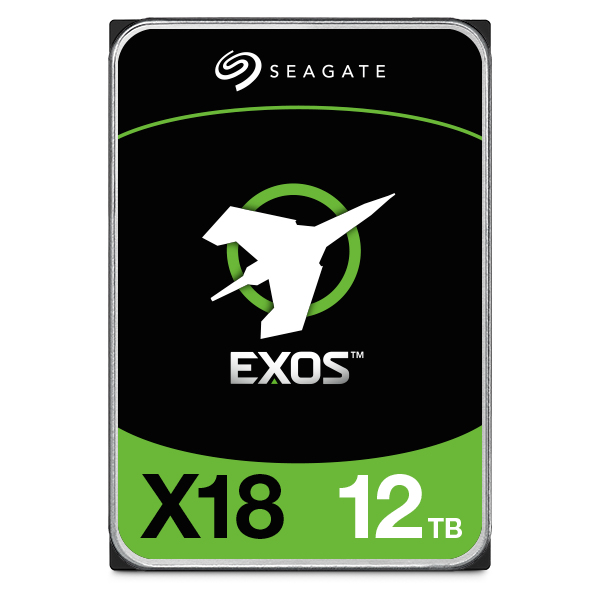

Enterprise ST12000NM000J internal hard drive
12 TB 7200 RPM 256 MB 3.5" Serial ATA III
Model ST12000NM000JPart no. ST12000NM000J-20PKEAN 8719706020718
28 specifications
- Storage12 TB
- ConnectivitySerial ATA III
- TypeHDD
- Weight650 g
- Power consumption (idle)4.4 W
- Operating temperature (T-T)5 - 60 °C
Overview
- Storage
- 12 TB
- Connectivity
- Serial ATA III
- Type
- HDD
- Weight
- 650 g
- Power consumption (idle)
- 4.4 W
- Operating temperature (T-T)
- 5 - 60 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST12000NM000J
- Part numbers
- ST12000NM000J-20PK, ST12000NM000J
- EAN / UPC
- 8719706020718, 763649139141, 5715063118801, 7612392924654 +1 more
- Also known as
- Seagate Enterprise ST12000NM000J internal hard drive 12 TB 7200 RPM 256 MB 3.5" Serial ATA III
Specifications
28 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 12 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | Disk array |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 258 MiB/s |
| Average latency | 4.16 ms |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Rotational Vibration (RV) sensors | Yes |
| 24/7 operation | Yes |
| Mean time between failures (MTBF) | 2500000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (idle) | 4.4 W |
| Power consumption (read) | 8.6 W |
| Power consumption (write) | 5.8 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 60 °C |
| Non-operating vibration | 2.27 G |
| Operating shock | 50 G |
| Non-operating shock | 200 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 650 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
