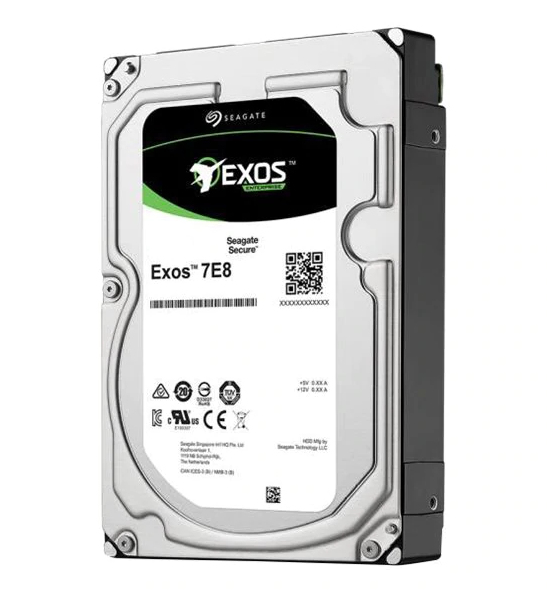

Enterprise ST1000NM000A internal hard drive
1 TB 7200 RPM 256 MB 3.5" Serial ATA
Model ST1000NM000AEAN 763649120576
31 specifications
- Storage1 TB
- ConnectivitySerial ATA
- TypeHDD
- Weight620 g
- Power consumption (typical)9.91 W
- Operating temperature (T-T)5 - 60 °C
Overview
- Storage
- 1 TB
- Connectivity
- Serial ATA
- Type
- HDD
- Weight
- 620 g
- Power consumption (typical)
- 9.91 W
- Operating temperature (T-T)
- 5 - 60 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST1000NM000A
- Part number
- ST1000NM000A
- EAN / UPC
- 763649120576, 5415247253129, 8592978244880, 8719706015615
- Also known as
- Seagate Enterprise ST1000NM000A internal hard drive 1 TB 7200 RPM 256 MB 3.5" Serial ATA
Specifications
31 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 1 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA |
| Type | HDD |
| Component for | Server/workstation |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 215 MiB/s |
| HDD average transfer rate | 225 MB/s |
| HDD number of heads | 2 |
| Average latency | 4.16 ms |
| Bytes per sector | 512 |
| Mean time between failures (MTBF) | 2000000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 9.91 W |
| Power consumption (idle) | 4.48 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 5 G |
| Non-operating vibration | 5 G |
| Operating shock | 70 G |
| Non-operating shock | 300 G |
Packaging content
| Specification | Value |
|---|---|
| Storage drive adapter included | No |
| Manual | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 620 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
