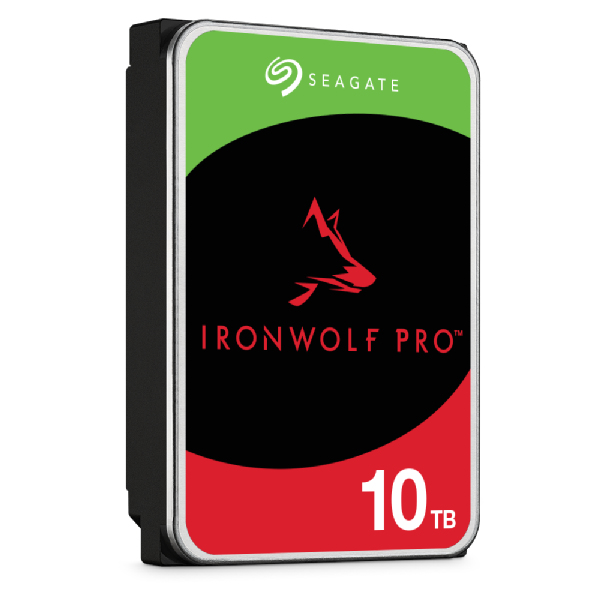

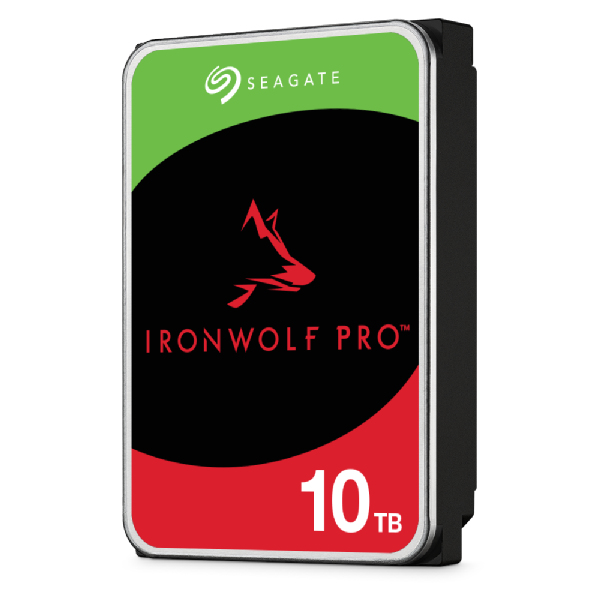

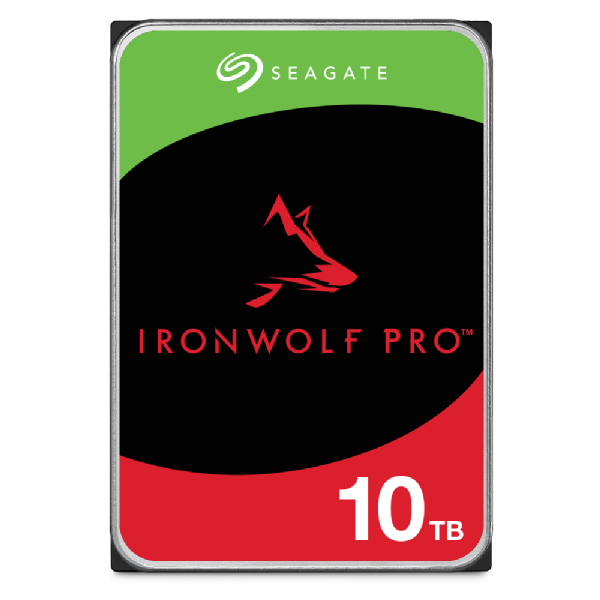

IronWolf Pro ST10000NT001 internal hard drive
10 TB 7200 RPM 256 MB 3.5" Serial ATA III
Model ST10000NT001EAN 5715063541203
29 specifications
- Storage10 TB
- ConnectivitySerial ATA III
- Noise28 dB
- TypeHDD
- Weight720 g
- Power consumption (typical)10.1 W
Overview
- Storage
- 10 TB
- Connectivity
- Serial ATA III
- Noise
- 28 dB
- Type
- HDD
- Weight
- 720 g
- Power consumption (typical)
- 10.1 W
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ST10000NT001
- Part number
- ST10000NT001
- EAN / UPC
- 5715063541203, 763649176306, 5415247302902, 8719706432320 +1 more
- Also known as
- Seagate IronWolf Pro ST10000NT001 internal hard drive 10 TB 7200 RPM 256 MB 3.5" Serial ATA III
Specifications
29 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 10 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | NAS |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 263 MiB/s |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Rotational Vibration (RV) sensors | Yes |
| Workload rate limit | 550 TB/year |
| Noise level (idle) | 28 dB |
| Mean time between failures (MTBF) | 2000000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10.1 W |
| Power consumption (standby) | 1 W |
| Power consumption (off) | 1 W |
| Power consumption (idle) | 7.8 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Non-operating vibration | 2.27 G |
| Operating shock | 70 G |
| Non-operating shock | 250 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 720 g |
