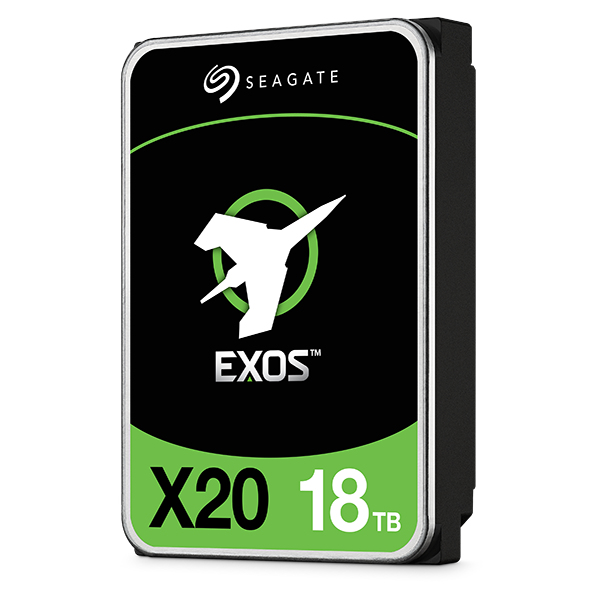

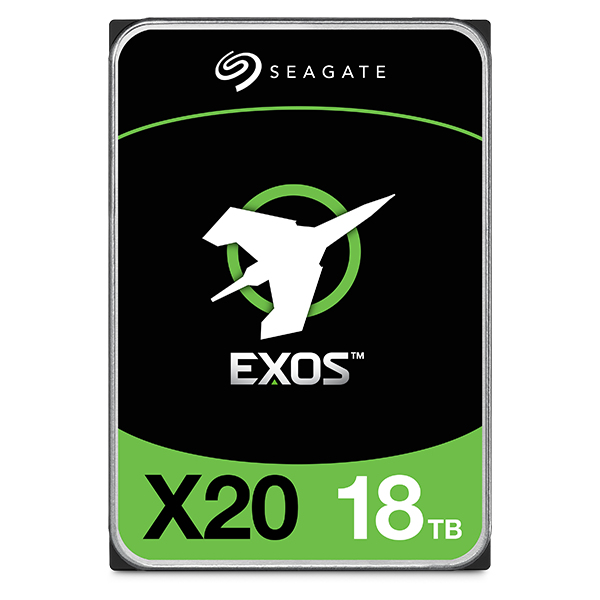

Exos X20
Model Exos X20Part no. ST20000NM007D-FREAN 8719706031554
24 specifications
- Storage18 TB
- ConnectivitySerial ATA III
- TypeHDD
- Weight670 g
- Power consumption (typical)5.4 W
- Operating temperature (T-T)5 - 60 °C
Overview
- Storage
- 18 TB
- Connectivity
- Serial ATA III
- Type
- HDD
- Weight
- 670 g
- Power consumption (typical)
- 5.4 W
- Operating temperature (T-T)
- 5 - 60 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- Exos X20
- Part numbers
- ST20000NM007D-FR, ST18000NM004D, ST18000NM000D, ST20000NM002D, ST18000NM003D, ST18000NM001D +10 more
- EAN / UPC
- 8719706031554, 763649153185, 7636491531858, 8719706031622 +16 more
- Also known as
- Seagate Enterprise Exos X20 internal hard drive 18 TB 7200 RPM 3.5" Serial ATA III
Specifications
24 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 18 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | PC |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 272 MiB/s |
| HDD average transfer rate | 285 MB/s |
| Mean time between failures (MTBF) | 2500000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5.4 W |
| Power consumption (read) | 9.4 W |
| Power consumption (write) | 6.4 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 60 °C |
| Non-operating vibration | 2.27 G |
| Operating shock | 40 G |
| Non-operating shock | 200 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 670 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
