ES.2 2TB
Model ES.2 2TBPart no. ST32000645NS-RFBEAN 5711783350729
25 specifications
- Storage2 TB
- ConnectivitySerial ATA III
- Weight655 g
- Power consumption (typical)10.68 W
- Operating temperature (T-T)5 - 60 °C
- Width101.8 mm
Overview
- Storage
- 2 TB
- Connectivity
- Serial ATA III
- Weight
- 655 g
- Power consumption (typical)
- 10.68 W
- Operating temperature (T-T)
- 5 - 60 °C
- Width
- 101.8 mm
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- ES.2 2TB
- Part numbers
- ST32000645NS-RFB, ST32000645NS
- EAN / UPC
- 5711783350729, 163120652945, 191120074993, 754031122766 +5 more
- Also known as

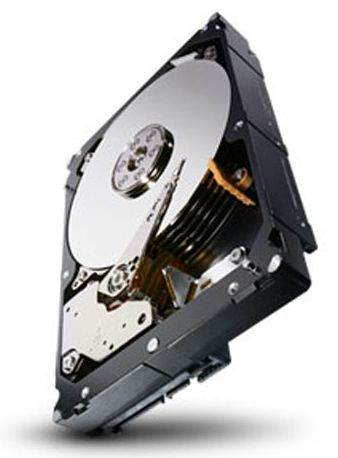

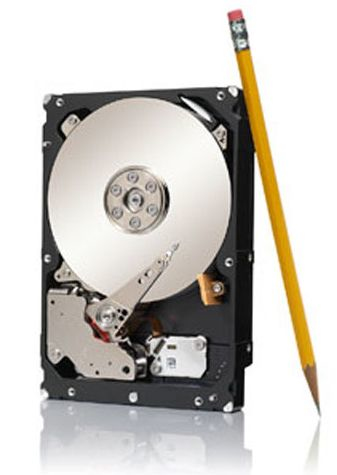

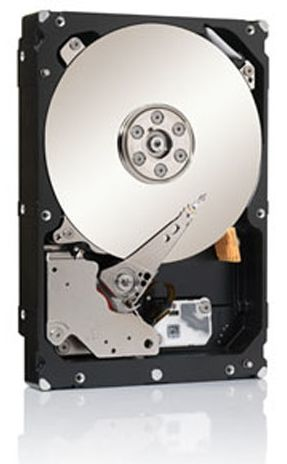

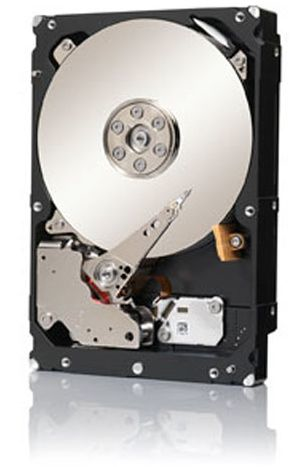

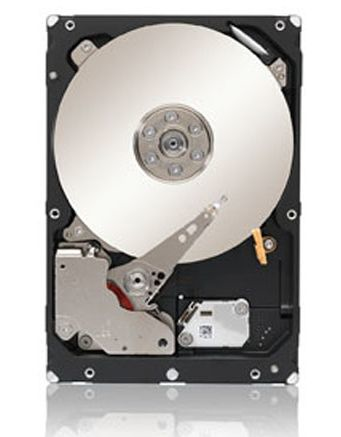

- Seagate Constellation ES.2 2TB internal hard drive 7200 RPM 64 MB 3.5" Serial ATA III
Specifications
25 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 2 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Component for | NAS |
| Storage drive buffer size | 64 MB |
| Read seek time | 8.5 ms |
| Write seek time | 9.5 ms |
| Average latency | 4.16 ms |
| Bytes per sector | 512 |
| Mean time between failures (MTBF) | 1200000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10.68 W |
| Power consumption (idle) | 7.7 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 2.11 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Non-operating vibration | 4.9 G |
| Operating shock | 70 G |
| Non-operating shock | 300 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 655 g |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 6 Gbit/s |
