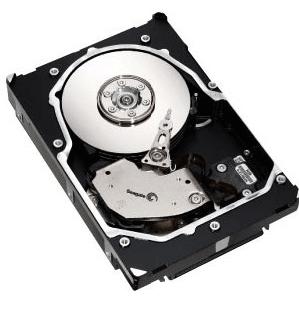

Seagate Cheetah 15K.4 36GB 8MB Fibre Channel
Model Cheetah 15K.4 36GB 8MB Fibre ChannelPart no. ST336854FC
29 specifications
- Storage36.7 GB
- ConnectivityFibre Channel
- Weight771 g
- Power consumption (typical)15.27 W
- Operating temperature (T-T)5 - 55 °C
- Width101.6 mm
Overview
- Storage
- 36.7 GB
- Connectivity
- Fibre Channel
- Weight
- 771 g
- Power consumption (typical)
- 15.27 W
- Operating temperature (T-T)
- 5 - 55 °C
- Width
- 101.6 mm
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- Cheetah 15K.4 36GB 8MB Fibre Channel
- Part number
- ST336854FC
- Also known as
- Seagate Cheetah 15K.4 36GB 8MB Fibre Channel internal hard drive 36.7 GB 15000 RPM 3.5"
Specifications
29 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 36.7 GB |
| HDD speed | 15000 RPM |
| HDD size | 3.5" |
| Interface | Fibre Channel |
| Component for | Server/workstation |
| Storage drive buffer size | 8 MB |
| HDD number of heads | 2 |
| Read seek time | 3.5 ms |
| Write seek time | 4 ms |
| Average latency | 2 ms |
| Mean time between failures (MTBF) | 1400000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15.27 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating shock | 60 G |
| Non-operating shock | 250 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 146.1 mm |
| Height | 25.4 mm |
| Weight | 771 g |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 101.6 x 146.05 x 25.4 mm |
| Drive device, transfer rate | 400 MB/s |
| External power adapter | No |
| Internal | Yes |
| Mac compatibility | No |
| USB powered | No |
| Compatible products | PCs |
| Acoustic pressure emissions | 30 dB |
