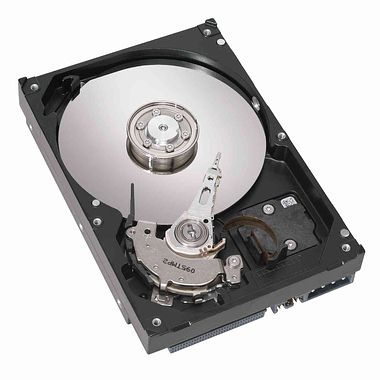

Seagate Barracuda ES 250GB SATA-II
Model Barracuda ES 250GB SATA-IIPart no. ST3250820NS-BD
27 specifications
- Storage250.1 GB
- ConnectivitySerial ATA II
- Weight580 g
- Operating voltage5 / 12 V
- Operating temperature (T-T)5 - 55 °C
- Width101.6 mm
Overview
- Storage
- 250.1 GB
- Connectivity
- Serial ATA II
- Weight
- 580 g
- Operating voltage
- 5 / 12 V
- Operating temperature (T-T)
- 5 - 55 °C
- Width
- 101.6 mm
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- Barracuda ES 250GB SATA-II
- Part number
- ST3250820NS-BD
- Also known as
- Seagate Desktop HDD Barracuda ES 250GB SATA-II internal hard drive 250.1 GB 7200 RPM 8 MB 3.5" Serial ATA II
Specifications
27 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 250.1 GB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA II |
| Storage drive buffer size | 8 MB |
| HDD number of heads | 3 |
| Read seek time | 8.5 ms |
| Write seek time | 9.5 ms |
| Track to track seek time | 0.8 ms |
| Average latency | 4.16 ms |
| Bytes per sector | 512 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 / 12 V |
| Start-up current | 2.8 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating shock | 63 G |
| Non-operating shock | 225 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 580 g |
Other features
| Specification | Value |
|---|---|
| HDD transfer rate | 1030 Mbit/s |
| Dimensions (WxDxH) | 101.6 x 146.99 x 26.1 mm |
| Data transfer rate | 3 Gbit/s |
| Internal | Yes |
| USB powered | No |
| Compatible products | PCs |
