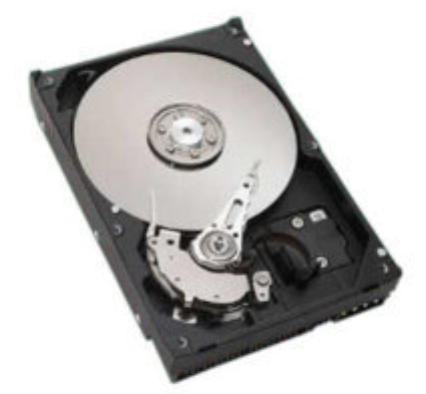

80GB HDD
Model 80GB HDDPart no. ST9808211AEAN 102645803036
37 specifications
- Storage80 GB
- ConnectivityUltra-ATA/100
- TypeHDD
- Weight635 g
- Power consumption (typical)13 W
- Operating temperature (T-T)0 - 60 °C
Overview
- Storage
- 80 GB
- Connectivity
- Ultra-ATA/100
- Type
- HDD
- Weight
- 635 g
- Power consumption (typical)
- 13 W
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- 80GB HDD
- Part numbers
- ST9808211A, ST98823AS, ST980825A, ST980825AS, ST380020ACE, ST380011A-RFB +8 more
- EAN / UPC
- 102645803036, 2000007938786, 102645804064, 102645996974 +46 more
- Also known as
- Seagate Desktop HDD 80GB HDD internal hard drive 7200 RPM 2 MB 3.5" Ultra-ATA/100
Specifications
37 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 80 GB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Ultra-ATA/100 |
| Type | HDD |
| Storage drive buffer size | 2 MB |
| HDD number of heads | 3 |
| Read seek time | 9.4 ms |
| Write seek time | 10.5 ms |
| Track to track seek time | 1.2 ms |
| Average seek time | 9.4 ms |
| Average latency | 4.16 ms |
| Bytes per sector | 512 |
| Start/stop cycles | 50000 |
| Mean time between failures (MTBF) | 600000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 13 W |
| Power consumption (standby) | 0.75 W |
| Power consumption (idle) | 9.5 W |
| Power consumption (read) | 12 W |
| Power consumption (write) | 12 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 2.8 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 0.5 G |
| Non-operating vibration | 5 G |
| Operating altitude | -198.12 - 3048 m |
| Non-operating altitude | -198.12 - 12192 m |
| Operating shock | 63 G |
| Non-operating shock | 350 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 635 g |
Other features
| Specification | Value |
|---|---|
| Drive ready time | 10 s |
