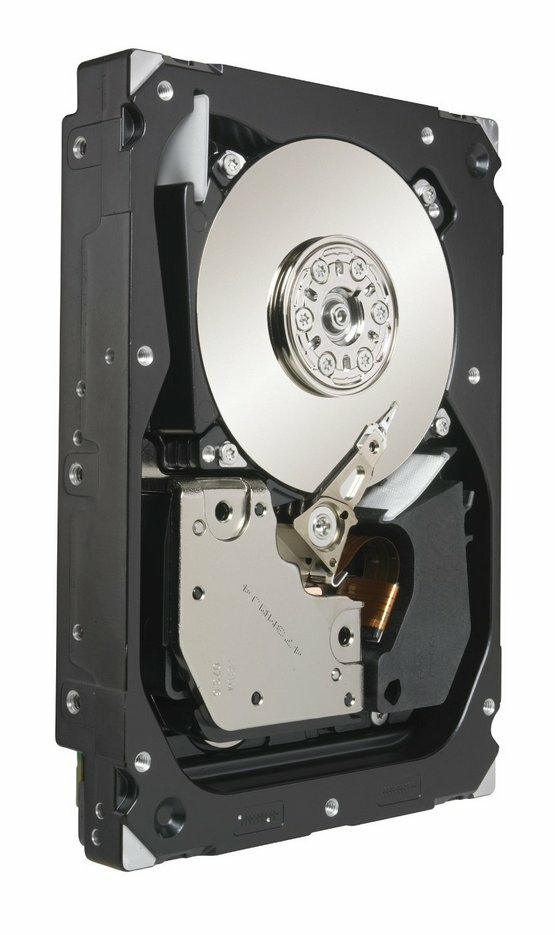

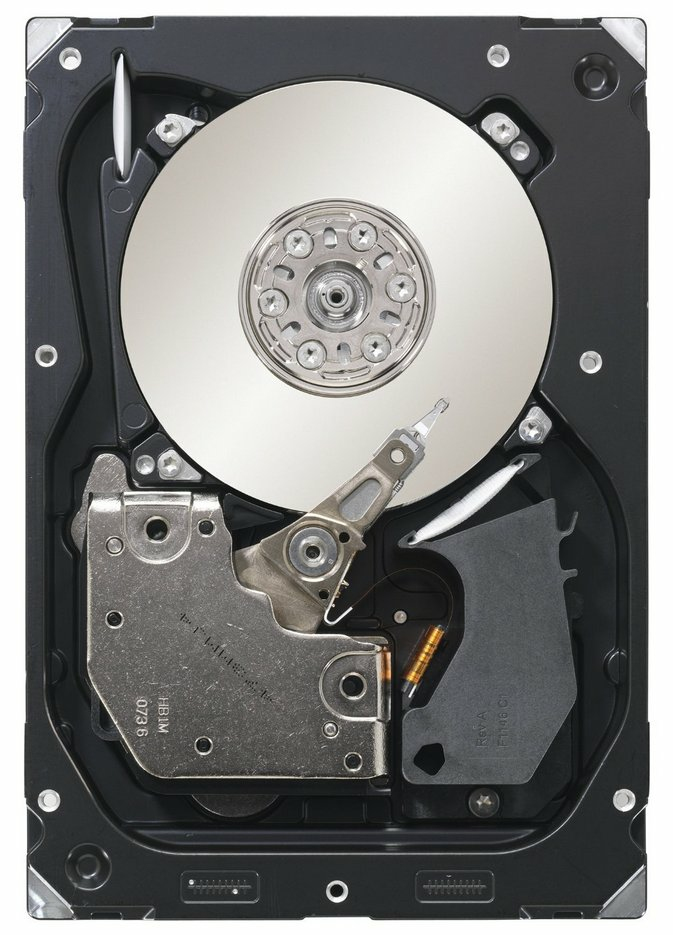

300GB 3.5
Model 300GB 3.5Part no. ST3300007FC-RFBEAN 5711783323457
26 specifications
- Storage300 GB
- ConnectivitySAS
- TypeHDD
- Weight671 g
- Power consumption (typical)12.92 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 300 GB
- Connectivity
- SAS
- Type
- HDD
- Weight
- 671 g
- Power consumption (typical)
- 12.92 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- 300GB 3.5
- Part numbers
- ST3300007FC-RFB, ST3300657SS-RFB, ST3300655SS-RFB, ST3300655LC-RFB, ST3300655FC-RFB
- EAN / UPC
- 5711783323457, 5712505572429, 5715328124059, 5712505612507 +2 more
- Also known as
- Seagate Cheetah 300GB 3.5 internal hard drive 15000 RPM 16 MB 3.5" SAS
Specifications
26 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 300 GB |
| HDD speed | 15000 RPM |
| HDD size | 3.5" |
| Interface | SAS |
| Type | HDD |
| Component for | Server/workstation |
| Storage drive buffer size | 16 MB |
| HDD number of heads | 4 |
| Read seek time | 3.4 ms |
| Write seek time | 3.9 ms |
| Average latency | 2 ms |
| Mean time between failures (MTBF) | 1600000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12.92 W |
| Power consumption (idle) | 8.74 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating vibration | 1 G |
| Non-operating vibration | 3 G |
| Operating shock | 60 G |
| Non-operating shock | 300 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 146.5 mm |
| Height | 25.4 mm |
| Weight | 671 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
