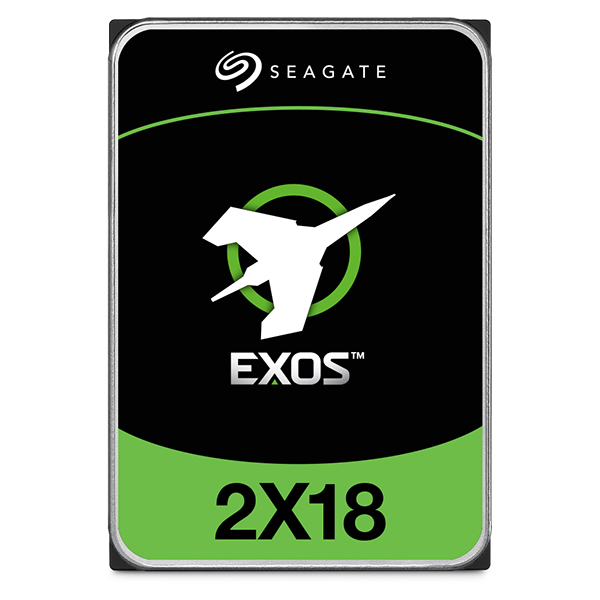

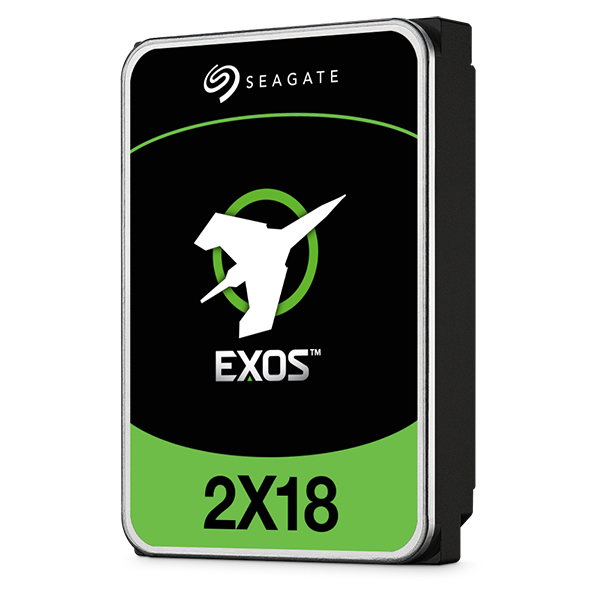

2X18 16 TB
Model 2X18 16 TBPart no. ST16000NM0092-20PK
38 specifications
- Storage16 TB
- ConnectivitySerial ATA III
- Noise3 dB
- TypeHDD
- Weight665 g
- Power consumption (idle)7.8 W
Overview
- Storage
- 16 TB
- Connectivity
- Serial ATA III
- Noise
- 3 dB
- Type
- HDD
- Weight
- 665 g
- Power consumption (idle)
- 7.8 W
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- 2X18 16 TB
- Part number
- ST16000NM0092-20PK
- Also known as
- Seagate Exos 2X18 16 TB internal hard drive 7200 RPM 256 MB 3.5" Serial ATA III
Specifications
38 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 16 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | Server/workstation |
| Hot-swap | Yes |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 520 MiB/s |
| HDD average transfer rate | 545 MB/s |
| Average latency | 4.16 ms |
| Rotational Vibration (RV) sensors | Yes |
| Start/stop cycles | 600000 |
| Noise level (idle) | 3 dB |
| Mean time between failures (MTBF) | 2500000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (idle) | 7.8 W |
| Power consumption (read) | 1.1 W |
| Power consumption (write) | 9.2 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 1.8 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 0.7 G |
| Non-operating vibration | 2.27 G |
| Operating altitude | -304.8 - 3048 m |
| Non-operating altitude | -304.8 - 12192 m |
| Operating shock | 40 G |
| Non-operating shock | 200 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 665 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 20 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet | 40 pc(s) |
| Products per master (outer) case | 20 pc(s) |
