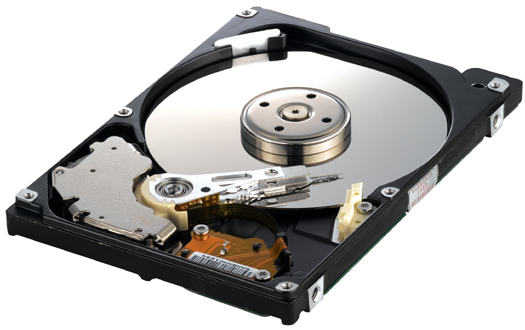

Samsung Spinpoint M5, 80GB HDD
Model Spinpoint M5, 80GB HDDPart no. HM080GCEAN 683728129842
22 specifications
- Storage80 GB
- Speed826 Mbit/s
- ConnectivityIDE/ATA
- Weight96 g
- Power consumption (standby)0.25 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 80 GB
- Speed
- 826 Mbit/s
- Connectivity
- IDE/ATA
- Weight
- 96 g
- Power consumption (standby)
- 0.25 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Samsung
- Category
- Internal Hard Drive
- Model
- Spinpoint M5, 80GB HDD
- Part number
- HM080GC
- EAN / UPC
- 683728129842, 8808987249137
- Also known as
- Samsung Spinpoint M Spinpoint M5, 80GB HDD internal hard drive 5400 RPM 8 MB 2.5" IDE/ATA
Specifications
22 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 80 GB |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| Interface | IDE/ATA |
| Storage drive buffer size | 8 MB |
| Write seek time | 12 ms |
| Average latency | 5.6 ms |
| Bytes per sector | 512 |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.25 W |
| Operating voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating altitude | 300 - 3000 m |
| Non-operating altitude | -400 - 15000 m |
| Operating shock | 325 G |
| Non-operating shock | 1000 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69.8 mm |
| Depth | 100 mm |
| Height | 9.5 mm |
| Weight | 96 g |
Other features
| Specification | Value |
|---|---|
| Internal | Yes |
| Maximum data transfer rate | 826 Mbit/s |
