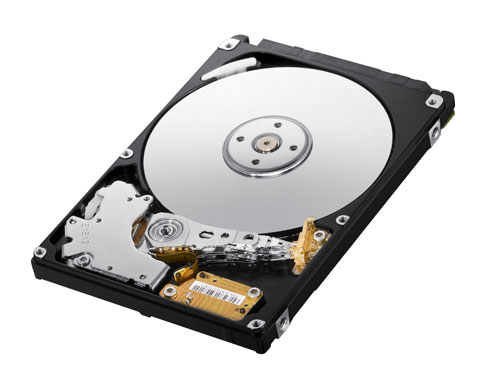

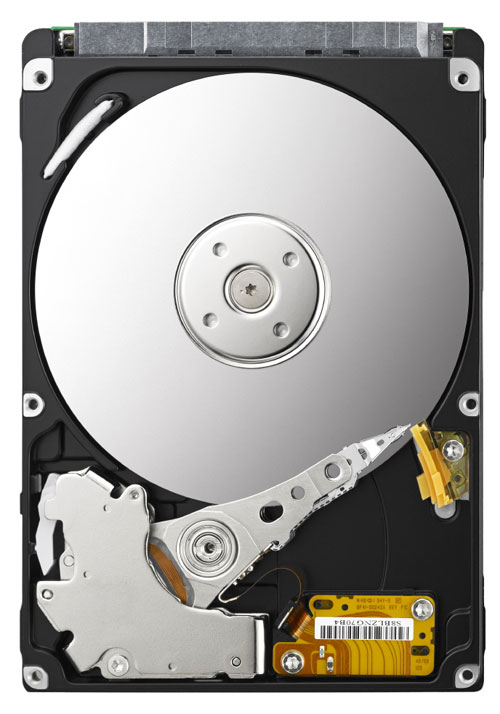

M7E 320GB
Model M7E 320GBPart no. HM320HI
30 specifications
- Storage320 GB
- Weight105 g
- Power consumption (standby)0.25 W
- Operating temperature (T-T)5 - 55 °C
- Width69.8 mm
Overview
- Storage
- 320 GB
- Weight
- 105 g
- Power consumption (standby)
- 0.25 W
- Operating temperature (T-T)
- 5 - 55 °C
- Width
- 69.8 mm
- Brand
- Samsung
- Category
- Internal Hard Drive
- Model
- M7E 320GB
- Part number
- HM320HI
- Also known as
- Samsung Spinpoint M M7E 320GB internal hard drive 5400 RPM 8 MB
Specifications
30 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 320 GB |
| HDD speed | 5400 RPM |
| Storage drive buffer size | 8 MB |
| Average seek time | 12 ms |
| Bytes per sector | 512 |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.25 W |
| Power consumption (PowerSave) | 0.85 W |
| Power consumption (off) | 0.2 W |
| Operating voltage | 5 V |
| Start-up current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 7 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 10 G |
| Operating altitude | -300 - 3.000 m |
| Non-operating altitude | -400 - 15000 m |
| Operating shock | 400 G |
| Non-operating shock | 900 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69.8 mm |
| Depth | 100 mm |
| Height | 9.5 mm |
| Weight | 105 g |
Other features
| Specification | Value |
|---|---|
| Power requirements | Yes |
| Dimensions (WxDxH) | 69.85 x 100 x 9.5 mm |
| Drive device, transfer rate | 300 MB/s |
| Drive ready time | 4 s |
| Internal | Yes |
| eSATA | Yes |
| Acoustic pressure emissions | 2.6 dB |
