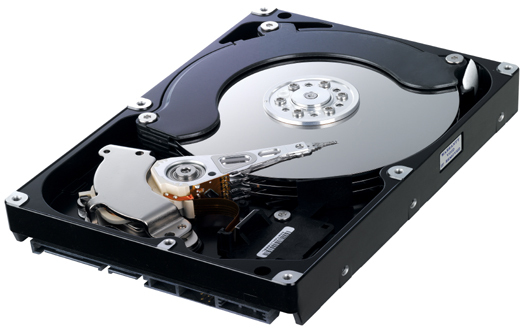

SpinPoint F1 HA751LJ internal hard drive
750 GB 7200 RPM 32 MB Serial ATA
Model HA751LJPart no. HA751LJ/CEC
27 specifications
- Storage750 GB
- ConnectivitySerial ATA
- Weight650 g
- Power consumption (standby)0.7 W
- Operating temperature (T-T)0 - 60 °C
- Width101.5 mm
Overview
- Storage
- 750 GB
- Connectivity
- Serial ATA
- Weight
- 650 g
- Power consumption (standby)
- 0.7 W
- Operating temperature (T-T)
- 0 - 60 °C
- Width
- 101.5 mm
- Brand
- Samsung
- Category
- Internal Hard Drive
- Model
- HA751LJ
- Part number
- HA751LJ/CEC
- Also known as
- Samsung SpinPoint F1 HA751LJ internal hard drive 750 GB 7200 RPM 32 MB Serial ATA
Specifications
27 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 750 GB |
| HDD speed | 7200 RPM |
| Interface | Serial ATA |
| Storage drive buffer size | 32 MB |
| Average seek time | 8.9 ms |
| Average latency | 4.17 ms |
| Bytes per sector | 512 |
| Start/stop cycles | 50000 |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.7 W |
| Power consumption (PowerSave) | 0.7 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -300 - 3000 m |
| Non-operating altitude | -300 - 12000 m |
| Operating shock | 70 G |
| Non-operating shock | 300 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.5 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 650 g |
Other features
| Specification | Value |
|---|---|
| Power requirements | +5V±5%, +12V±10% |
| Data transfer rate | 3 Gbit/s |
| Internal | Yes |
| Supported data transfer rates | 175/300 MB/s |
| Acoustic pressure emissions | 29 dB |
