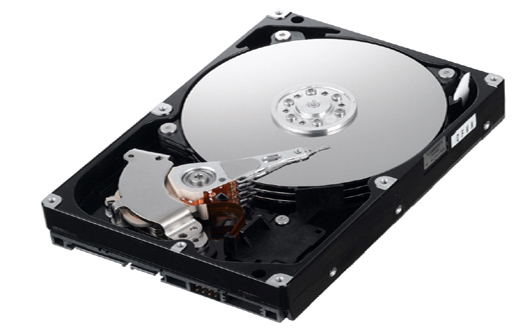

750GB HDD
Model 750GB HDDPart no. HD753LJ?20PKEAN 8808987305512
28 specifications
- Storage750 GB
- ConnectivitySerial ATA II
- Weight640 g
- Power consumption (typical)7.7 W
- Operating temperature (T-T)0 - 60 °C
- Width101.5 mm
Overview
- Storage
- 750 GB
- Connectivity
- Serial ATA II
- Weight
- 640 g
- Power consumption (typical)
- 7.7 W
- Operating temperature (T-T)
- 0 - 60 °C
- Width
- 101.5 mm
- Brand
- Samsung
- Category
- Internal Hard Drive
- Model
- 750GB HDD
- Part numbers
- HD753LJ?20PK, HE753LJ
- EAN / UPC
- 8808987305512, 8808987767761
- Also known as
- Samsung SpinPoint F1 750GB HDD internal hard drive 7200 RPM 32 MB 3.5" Serial ATA II
Specifications
28 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 750 GB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA II |
| Storage drive buffer size | 32 MB |
| Average seek time | 8.9 ms |
| Average latency | 4.17 ms |
| Bytes per sector | 512 |
| Start/stop cycles | 50000 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.7 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (PowerSave) | 1.2 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -300 - 3000 m |
| Non-operating altitude | -300 - 12000 m |
| Operating shock | 70 G |
| Non-operating shock | 350 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.5 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 640 g |
Other features
| Specification | Value |
|---|---|
| Power requirements | +5V±5%, +12V±10% |
| Drive ready time | 12 s |
| Internal | Yes |
