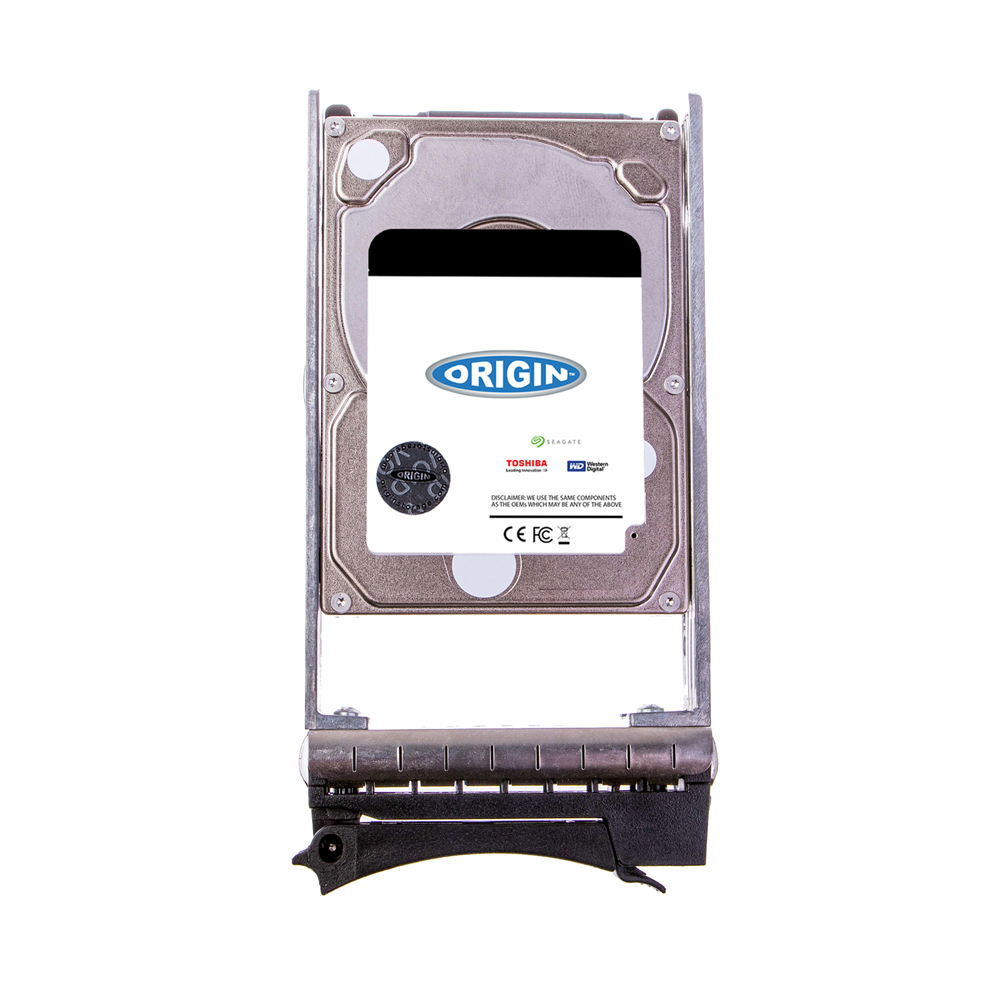

600GB 15k 2.5in SAS IBM DS3524 Hot Swap HDD Incl Caddy
Model IBM-600SAS/15-S16EAN 5056006118480
37 specifications
- Storage600 GB
- ConnectivitySAS
- TypeHDD
- Weight320 g
- Power consumption (typical)8.7 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 600 GB
- Connectivity
- SAS
- Type
- HDD
- Weight
- 320 g
- Power consumption (typical)
- 8.7 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Origin Storage
- Category
- Internal Hard Drive
- Model
- IBM-600SAS/15-S16
- Part number
- IBM-600SAS/15-S16
- EAN / UPC
- 5056006118480
- Also known as
- Origin Storage 600GB 15k 2.5in SAS IBM DS3524 Hot Swap HDD Incl Caddy
Specifications
37 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 600 GB |
| HDD speed | 15000 RPM |
| HDD size | 2.5" |
| Interface | SAS |
| Type | HDD |
| Component for | Server/workstation |
| Hot-swap | Yes |
| Storage drive buffer size | 128 MB |
| HDD interface transfer rate | 12 Gbit/s |
| HDD number of heads | 6 |
| Average latency | 2 ms |
| Bytes per sector | 512 |
| Refurbished | No |
| Mean time between failures (MTBF) | 2000000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 8.7 W |
| Power consumption (idle) | 5.3 W |
| Operating voltage | 5 V |
| Start-up current | 0.54 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 0.5 G |
| Non-operating vibration | 2.4 G |
| Operating altitude | -304.8 - 3048 m |
| Non-operating altitude | -304.8 - 12192 m |
| Operating shock | 40 G |
| Non-operating shock | 400 G |
Packaging content
| Specification | Value |
|---|---|
| Storage drive adapter included | No |
| Storage drive caddy included | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69.8 mm |
| Depth | 100.5 mm |
| Height | 15 mm |
| Weight | 320 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Compatible products | IBM DS3524 |
