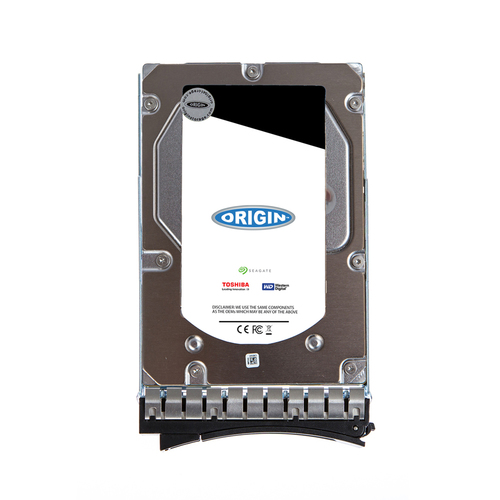

Origin Storage HDD 1TB 3.5in NearLine SAS in Hot Swap Caddy
Model DELL-1000NLS/7-F21EAN 5054629374665
38 specifications
- Storage1 TB
- ConnectivityNL-SAS
- TypeHDD
- Weight850 g
- Power consumption (idle)4.84 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 1 TB
- Connectivity
- NL-SAS
- Type
- HDD
- Weight
- 850 g
- Power consumption (idle)
- 4.84 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Origin Storage
- Category
- Internal Hard Drive
- Model
- DELL-1000NLS/7-F21
- Part number
- DELL-1000NLS/7-F21
- EAN / UPC
- 5054629374665, 5055146593485
- Also known as
- Origin Storage HDD 1TB 3.5in NearLine SAS in Hot Swap Caddy
Specifications
38 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 1 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | NL-SAS |
| Type | HDD |
| Component for | PC |
| Hot-swap | No |
| Storage drive buffer size | 128 MB |
| HDD interface transfer rate | 12 Gbit/s |
| HDD sustained transfer rate | 175 MiB/s |
| Average latency | 4.16 ms |
| 24/7 operation | No |
| Bytes per sector | 512 |
| Refurbished | No |
| Mean time between failures (MTBF) | 2000000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (idle) | 4.84 W |
| Power consumption (read) | 8.93 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -304.8 - 3048 m |
| Non-operating altitude | -304.8 - 12192 m |
| Operating shock | 70 G |
| Non-operating shock | 300 G |
Packaging content
| Specification | Value |
|---|---|
| Storage drive adapter included | No |
| Storage drive caddy included | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.8 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 850 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Compatible products | Dell PWS T7600 |
| Warranty period | 5 year(s) |
