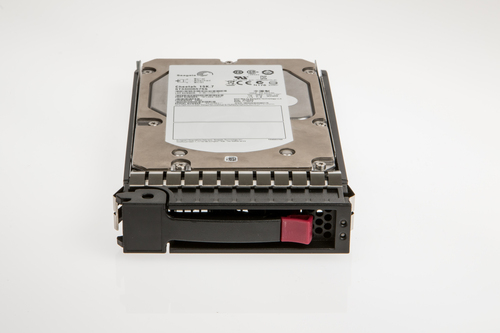

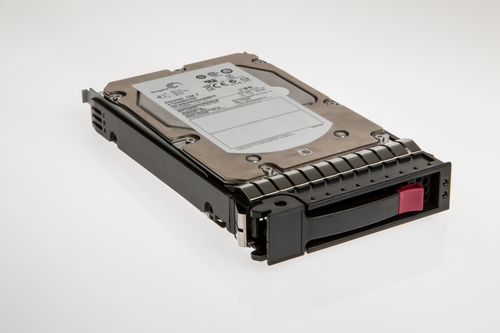

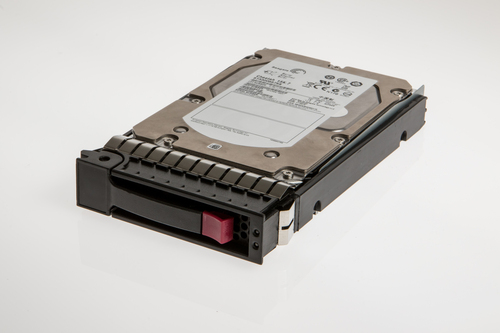

300GB Hot Plug Enterprise 15K
3.5in SAS OEM: 516814-B21
Model CPQ-300SAS/15-S5EAN 5055146563310
30 specifications
- Storage300 GB
- ConnectivitySAS
- TypeHDD
- Weight850 g
- ColourBlack
- Operating voltage5 / 12 V
Overview
- Storage
- 300 GB
- Connectivity
- SAS
- Type
- HDD
- Weight
- 850 g
- Colour
- Black
- Operating voltage
- 5 / 12 V
- Brand
- Origin Storage
- Category
- Internal Hard Drive
- Model
- CPQ-300SAS/15-S5
- Part number
- CPQ-300SAS/15-S5
- EAN / UPC
- 5055146563310
- Also known as
- Origin Storage 300GB Hot Plug Enterprise 15K 3.5in SAS OEM: 516814-B21
Specifications
30 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 300 GB |
| HDD speed | 15000 RPM |
| HDD size | 3.5" |
| Interface | SAS |
| Type | HDD |
| Component for | Server/workstation |
| Hot-swap | Yes |
| Storage drive buffer size | 16 MB |
| HDD interface transfer rate | 6 Gbit/s |
| Read seek time | 3.4 ms |
| Write seek time | 3.9 ms |
| Bytes per sector | 512 |
| Refurbished | No |
| Mean time between failures (MTBF) | 1600000 h |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Storage drive adapter included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 146.5 mm |
| Height | 25.4 mm |
| Weight | 850 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717050 |
Other features
| Specification | Value |
|---|---|
| Product colour | Black |
| Compliance certificates | RoHS |
| Internal | Yes |
| USB powered | No |
| Compatible products | HP/Compaq ProLiant DL160 G6, G5, DL165 G5p, DL165 G6, DL185 G5, DL320 G6, DL360 G7, DL370 G6, DL380 G6, DL380 G7, DL385 G5p, DL385 G6, DL385 G7, ML150 G5, ML150 G6, ML310 G5p, ML330 G6, ML370 G6 |
