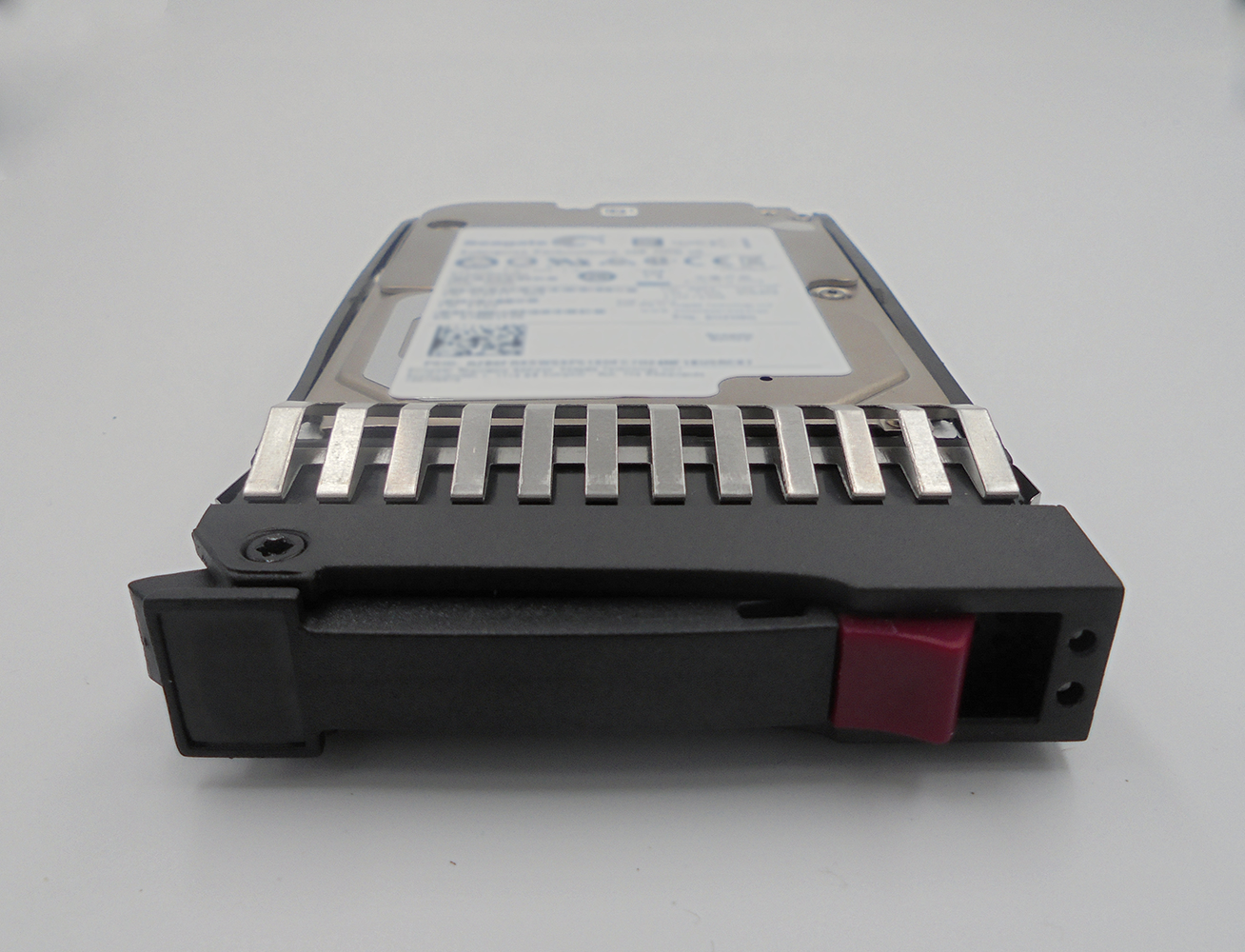

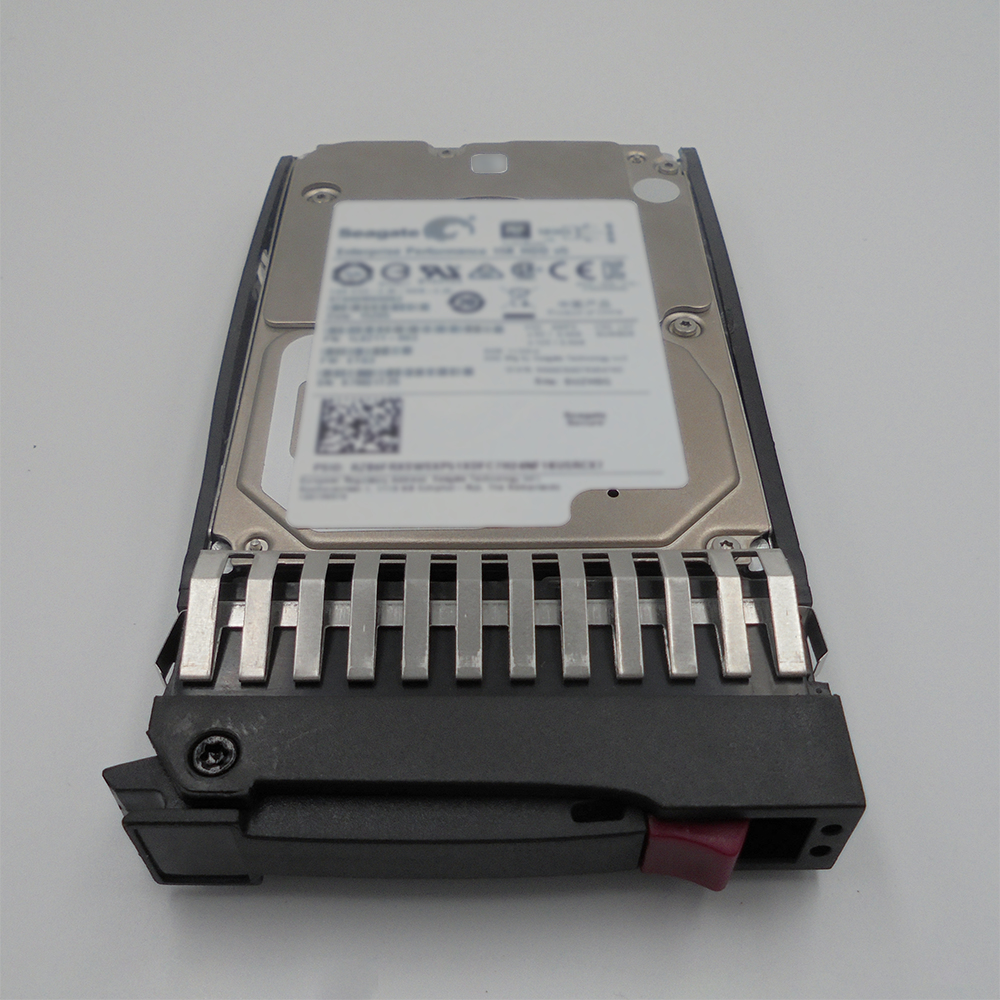

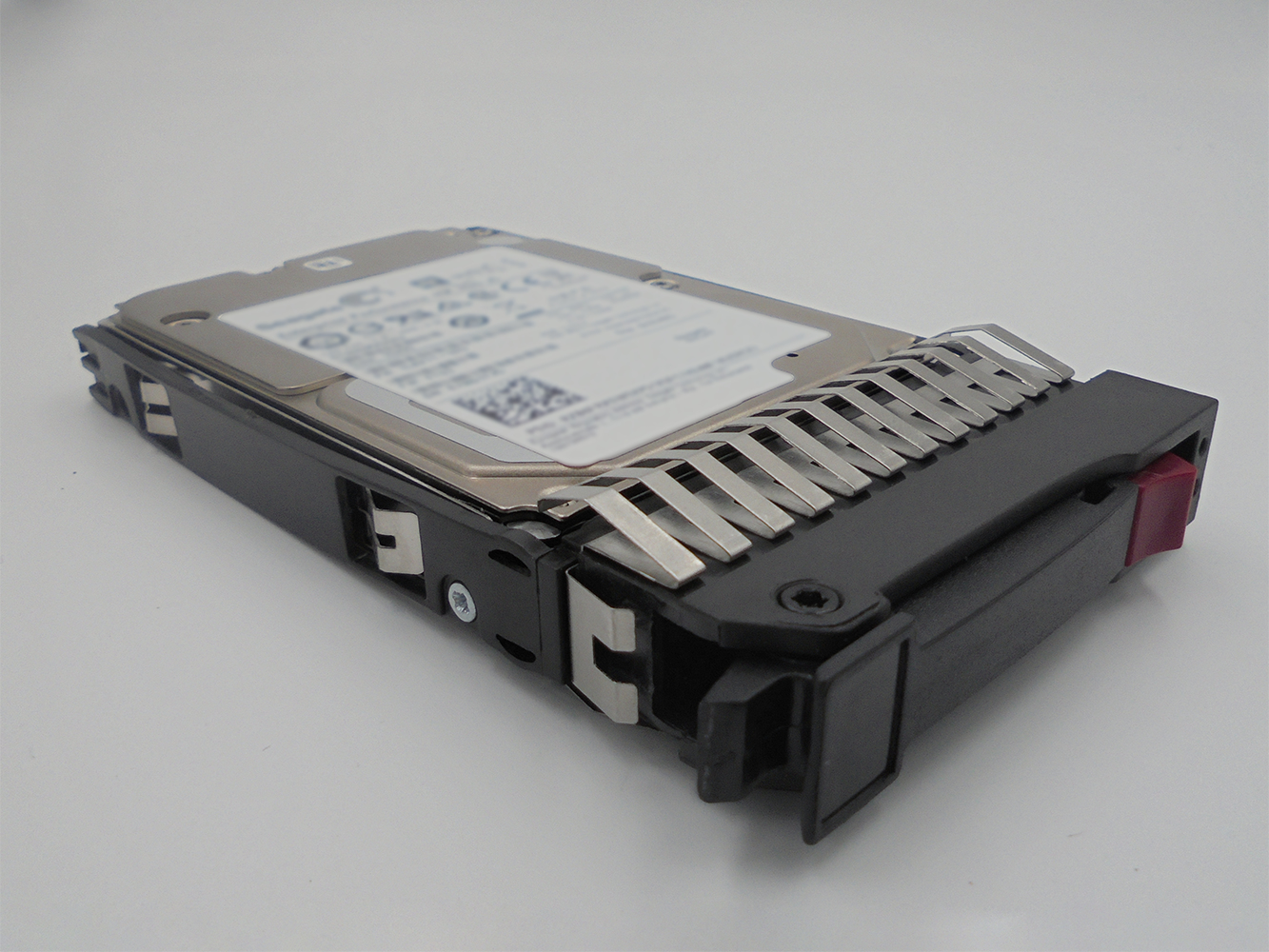

Seagate 146GB Hot Plug Enterprise 15K 2.5in SAS
Model CPQ-146SAS/15-S6/REAN 5056006131236
34 specifications
- Storage146 GB
- ConnectivitySAS
- TypeHDD
- Weight201 g
- Power consumption (idle)4.1 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 146 GB
- Connectivity
- SAS
- Type
- HDD
- Weight
- 201 g
- Power consumption (idle)
- 4.1 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Origin Storage
- Category
- Internal Hard Drive
- Model
- CPQ-146SAS/15-S6/R
- Part number
- CPQ-146SAS/15-S6/R
- EAN / UPC
- 5056006131236
- Also known as
- Origin Storage Seagate 146GB Hot Plug Enterprise 15K 2.5in SAS
Specifications
34 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 146 GB |
| HDD speed | 15000 RPM |
| HDD size | 2.5" |
| Interface | SAS |
| Type | HDD |
| Component for | Server/workstation |
| Storage drive buffer size | 16 MB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD number of heads | 4 |
| Read seek time | 29 ms |
| Write seek time | 3.3 ms |
| Average latency | 2 ms |
| Bytes per sector | 512 |
| Refurbished | Yes |
| Mean time between failures (MTBF) | 1600000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (idle) | 4.1 W |
| Operating voltage | 5 V |
| Start-up current | 0.43 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 0.5 G |
| Non-operating vibration | 2.4 G |
| Operating altitude | -304.8 - 3048 m |
| Non-operating altitude | -304.8 - 12192 m |
| Operating shock | 60 G |
| Non-operating shock | 300 G |
Packaging content
| Specification | Value |
|---|---|
| Storage drive adapter included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100.5 mm |
| Height | 14.8 mm |
| Weight | 201 g |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
