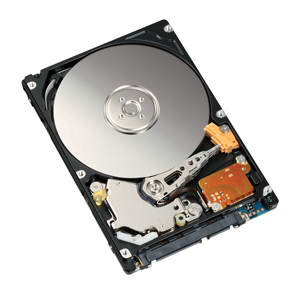

MHZ2160BH internal hard drive
160 GB 5400 RPM 8 MB 2.5" Serial ATA
Model MHZ2160BHPart no. CA07018-B056
32 specifications
- Storage160 GB
- Speed300 Mbit/s
- ConnectivitySerial ATA
- Weight101 g
- Power consumption (standby)0.13 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 160 GB
- Speed
- 300 Mbit/s
- Connectivity
- Serial ATA
- Weight
- 101 g
- Power consumption (standby)
- 0.13 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Fujitsu
- Category
- Internal Hard Drive
- Model
- MHZ2160BH
- Part number
- CA07018-B056
- Also known as
- Fujitsu MHZ2160BH internal hard drive 160 GB 5400 RPM 8 MB 2.5" Serial ATA
Specifications
32 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 160 GB |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| Interface | Serial ATA |
| Storage drive buffer size | 8 MB |
| Full stroke seek time | 22 ms |
| Track to track seek time | 1.5 ms |
| Average seek time | 12 ms |
| Bytes per sector | 512 |
| Mean time between failures (MTBF) | 300000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.13 W |
| Operating voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 9.8m/s² (1.0 G) 5 - 500 Hz |
| Non-operating vibration | 49m/s² (5.0 G) 5 - 500 Hz |
| Operating altitude | -300 - 3000 m |
| Non-operating altitude | -300 - 12000 m |
| Operating shock | 300 G |
| Non-operating shock | 900 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 70 mm |
| Height | 9.5 mm |
| Weight | 101 g |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 100 x 70 x 9.5 mm |
| Interface type | SATA 3.0Gb/s, ATA-8 |
| Internal | Yes |
| Maximum data transfer rate | 300 Mbit/s |
| Acoustic pressure emissions | 28 dB |
| Cartridge load/Unload cycles | 600000 |
