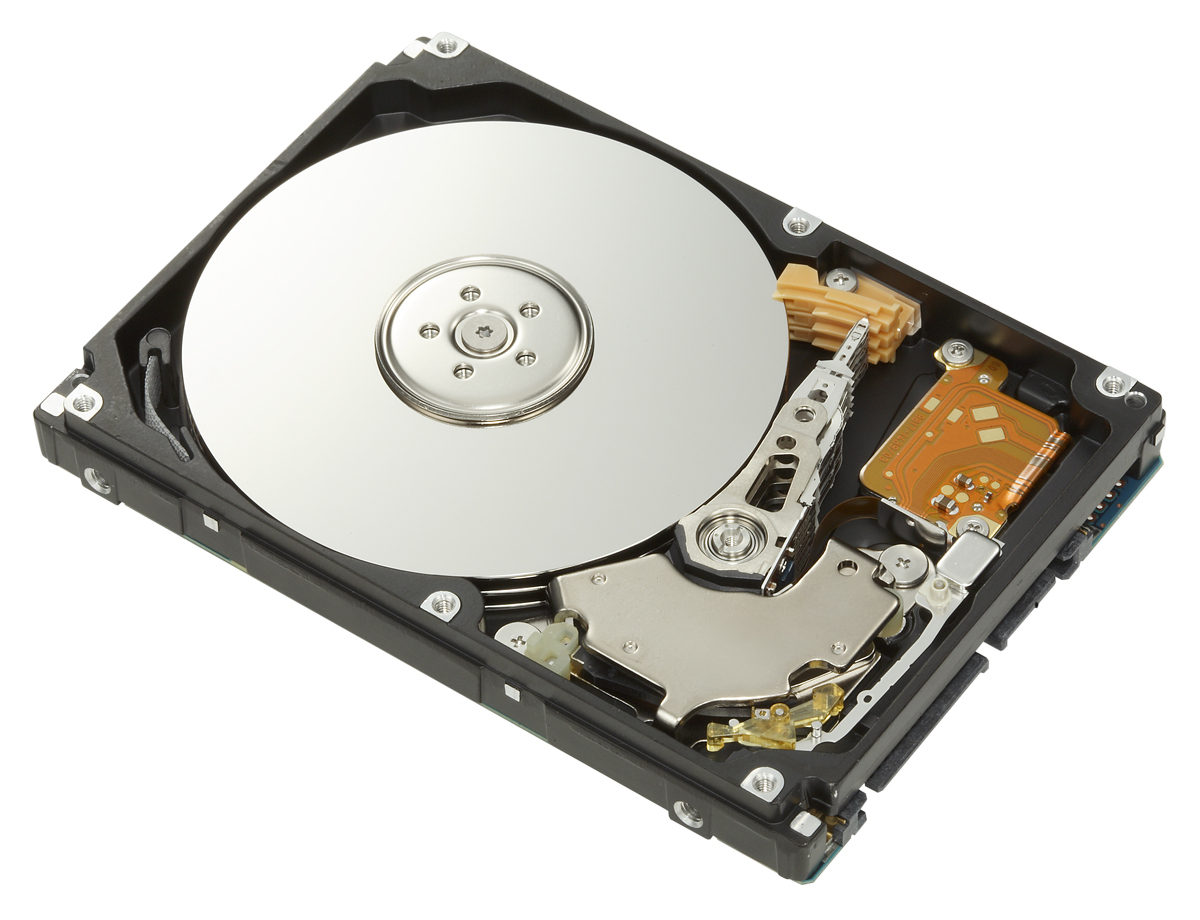

Fujitsu MHX2300BT internal hard drive

Fujitsu MHX2300BT internal hard drive

300 GB 4200 RPM 8 MB 2.5"

Model MHX2300BTPart no. CA06846-B030

32 specifications
  • Storage300 GB
  • Speed150 Mbit/s
  • Weight135 g
  • Power consumption (standby)0.13 W
  • Operating temperature (T-T)5 - 55 °C
  • Width70 mm
See all specifications

Overview

Storage
300 GB
Speed
150 Mbit/s
Weight
135 g
Power consumption (standby)
0.13 W
Operating temperature (T-T)
5 - 55 °C
Width
70 mm
Brand
Fujitsu
Model
MHX2300BT
Part number
CA06846-B030
Also known as
Fujitsu MHX2300BT internal hard drive 300 GB 4200 RPM 8 MB 2.5"

Specifications

32 specifications in 5 groups

Features

HDD capacity300 GB
HDD speed4200 RPM
HDD size2.5"
Storage drive buffer size8 MB
Full stroke seek time22 ms
Track to track seek time1.5 ms
Average seek time12 ms
Average latency7.14 ms
Bytes per sector512
Mean time between failures (MTBF)300000 h

Power

Power consumption (standby)0.13 W
Operating voltage5 V

Operational conditions

Operating temperature (T-T)5 - 55 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)8 - 90%
Storage relative humidity (H-H)5 - 95%
Operating vibration9.8m/s² (1.0 G) 5 - 500 Hz
Non-operating vibration49m/s² (5.0 G) 5 - 500 Hz
Operating altitude-300 - 3000 m
Non-operating altitude-300 - 12000 m
Operating shock300 G
Non-operating shock900 G

Weight & dimensions

Width70 mm
Depth100 mm
Height12.5 mm
Weight135 g

Other features

Power requirements5V ±5% 0.9A
Dimensions (WxDxH)70 x 100 x 12.5 mm
InternalYes
Maximum data transfer rate150 Mbit/s
Acoustic pressure emissions24 dB
Cartridge load/Unload cycles600000
