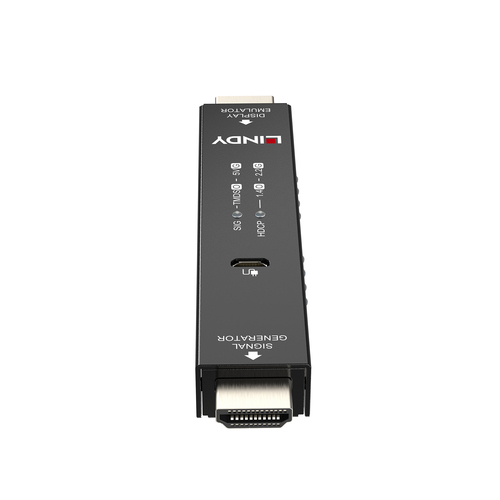

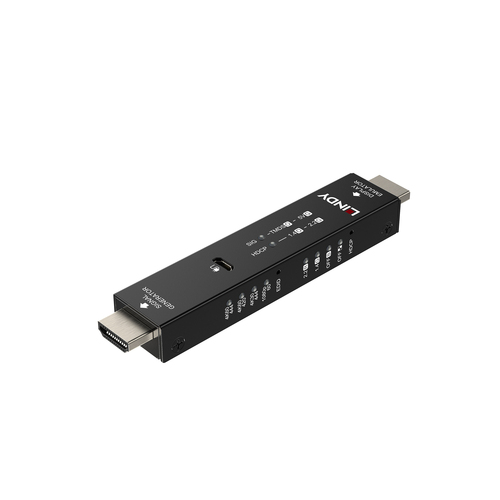

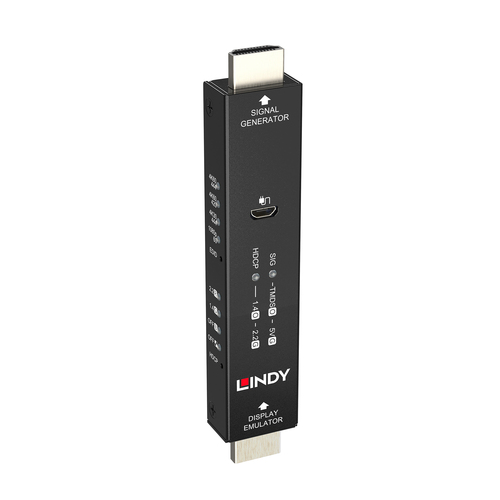

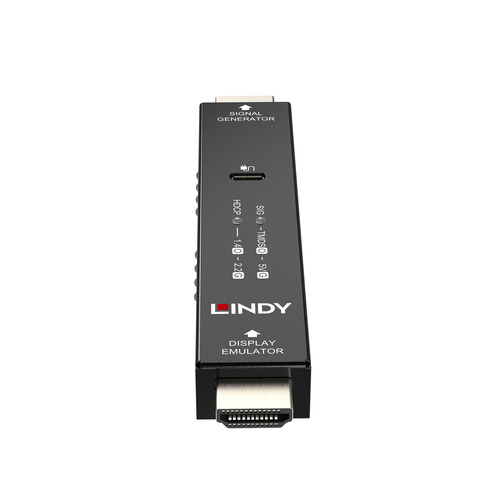

32683 EDID emulator
Model 32683EAN 4002888326834
26 specifications
- Weight40 g
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- Video port typeHDMI
- Power consumption (max)1.2 W
- Operating temperature (T-T)-5 - 55 °C
Overview
- Weight
- 40 g
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- Video port type
- HDMI
- Power consumption (max)
- 1.2 W
- Operating temperature (T-T)
- -5 - 55 °C
- Brand
- Lindy
- Category
- EDID Emulator
- Model
- 32683
- Part number
- 32683
- EAN / UPC
- 4002888326834
- Also known as
- Lindy 32683 EDID emulator
Specifications
26 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Bandwidth | 18 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| Number of video inputs | 1 |
| Number of video outputs | 1 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| USB port | Yes |
| USB connector type | Micro-USB B |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 1.2 W |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-A to USB micro Type-B |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, UKCA, Federal Communications Commission (FCC), REACH, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 22 mm |
| Height | 13.6 mm |
| Weight | 40 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 122 mm |
| Package depth | 60 mm |
| Package height | 18 mm |
| Package weight | 75 g |
