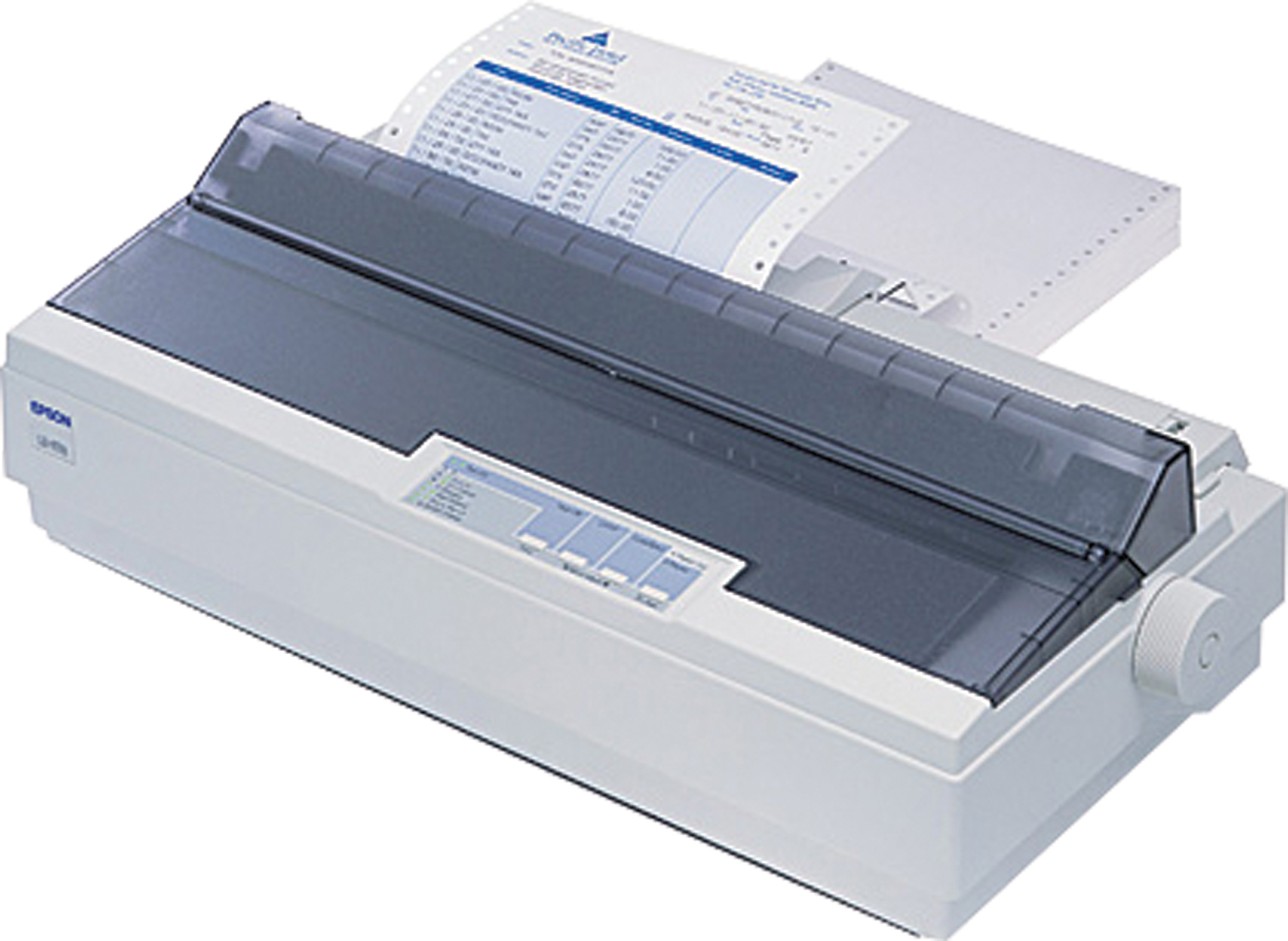

LX-1170 II
Model LX-1170 IIPart no. C11C641002EAN 8715946316970
43 specifications
- Weight6.6 kg
- ColourNo
- Paper tray media typesEnvelopes, Roll
- Buffer size64 KB
- Print head9-pin
- Operating temperature (T-T)5 - 35 °C
Overview
- Weight
- 6.6 kg
- Colour
- No
- Paper tray media types
- Envelopes, Roll
- Buffer size
- 64 KB
- Print head
- 9-pin
- Operating temperature (T-T)
- 5 - 35 °C
- Brand
- Epson
- Category
- Dot Matrix Printer
- Model
- LX-1170 II
- Part numbers
- C11C641002, C11C641001
- EAN / UPC
- 8715946316970, 8715946097800, 8715946316963
- Also known as
- Epson LX-1170+II
Specifications
43 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Maximum resolution | 240 x 144 DPI |
| Maximum printing width (columns) | 136 |
| Maximum print speed | 337 cps |
| Maximum number of copies | 4 copies |
| Built-in barcodes | Code 39, POSTNET, UPC-A, UPC-E |
| Print speed | HighSpeed-Draft: 10 cpi: 300 chars/s, 12 cpi: 337 chars/s, Draft: 10 cpi: 225 chars/s, 12 cpi: 270 chars/s, NLQ: 10 cpi: 56 chars/s, 12 cpi: 67 chars/s |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Envelopes, Roll |
Features
| Specification | Value |
|---|---|
| Buffer size | 64 KB |
| Sound pressure level (printing) | 49 dB |
| Country of origin | Indonesia |
Endurance
| Specification | Value |
|---|---|
| Print head | 9-pin |
| Print head life | 400 million characters |
| Ribbon life (black, draft) | 3 million characters |
| Mean time between failures (MTBF) | 6000 h |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Bundled software | Epson Status Monitor |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 546 mm |
| Depth | 275 mm |
| Height | 164 mm |
| Weight | 6.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 375 mm |
| Package depth | 640 mm |
| Package height | 232 mm |
| Package weight | 8.06 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 546 x 275 x 163 mm |
| Print technology | Dot matrix |
| Fonts included | Bitmap Printer fonts: Draft (10cpi, 12cpi, 15cpi), Roman (10cpi, 12cpi, 15cpi, Proportional), Sans Serif (10cpi, 12cpi, 15cpi, Proportional), Courier (10cpi, 12cpi, 15cpi), Prestige (10cpi, 12cpi), Script (10cpi), OCR-B (10cpi), Orator (10cpi), Orator-S (10cpi), Script C (proportional); Scalable fon |
| Compatible operating systems | Windows 2000, Windows 7, Windows 8, Windows 98, Windows Server 2008 R2, Windows XP |
| Box contents | Driver and utilities, Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document |
| I/O ports | 1 x USB 1 x IEEE 1284 1 x Serial |
| Needles | 9 Needles |
| Standard media sizes | Continuous paper: Width: 101.6-406.4mm Length: 101.6-558.8mm Thickness: 0.065-0.39mm Weight: 52-82 g/m; 40-58 g/m² Single sheet: Width: 148-420mm Length: 100-364mm Thickness: 0.065-0.14mm Weight: 52-90g/m² Single sheet (not Multipart) Cut Sheet Feeder Single-bin: Width: 182-420mm Length: 210-364mm T |
Technical details
| Specification | Value |
|---|---|
| Number of pins | 9 |
| Power consumption | 23 Watt |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 24 pc(s) |
| Products per pallet (UK) | 32 pc(s) |
| Products per pallet layer | 3 pc(s) |
| Products per pallet layer (UK) | 3 pc(s) |
