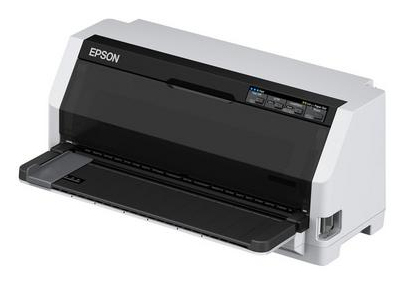

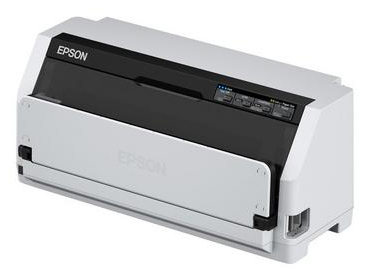

LQ-690IIN
Model LQ-690IINPart no. C11CJ82403A0EAN 8715946695990
53 specifications
- Weight6.8 kg
- ColourNo
- Paper feedManual, Pull tractor
- Product colourBlack, White
- Standard interfacesEthernet, Parallel, USB 2.0
- Print head24-pin
Overview
- Weight
- 6.8 kg
- Colour
- No
- Paper feed
- Manual, Pull tractor
- Product colour
- Black, White
- Standard interfaces
- Ethernet, Parallel, USB 2.0
- Print head
- 24-pin
- Brand
- Epson
- Category
- Dot Matrix Printer
- Model
- LQ-690IIN
- Part number
- C11CJ82403A0
- EAN / UPC
- 8715946695990
- Also known as
- Epson LQ-690IIN
Specifications
53 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Maximum resolution | 360 x 180 DPI |
| Maximum printing width (columns) | 106 |
| Maximum print speed | 487 cps |
| Maximum print speed (draft) | 366 cps |
| Maximum print speed (LQ) | 121 cps |
| Maximum number of copies | 6 copies |
| Built-in barcodes | Code 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, EAN8, Matrix 2/5, POSTNET, Interleaved 2/5, EAN13, Code 39, Industrial 2/5 |
| Character sets | ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, Roman 8 |
| Print speed | HighSpeed-Draft: 10 cpi: 487 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 366 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 121 chars/s, 12 cpi: 132 chars/s |
Paper handling
| Specification | Value |
|---|---|
| Paper feed | Manual, Pull tractor |
| Paper tray media types | Envelopes, Roll |
| Continuous paper thickness range | 0.065 - 0.49 mm |
| Label thickness range | 0.16 - 0.19 mm |
| Multi-part paper thickness range | 0.12 - 0.49 mm |
| Single sheet thickness range | 0.065 - 0.15 mm |
Features
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Buffer size | 128 KB |
| Sound pressure level (printing) | 59 dB |
| Country of origin | Indonesia |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet, Parallel, USB 2.0 |
| Cabling technology | 10/100Base-T(X) |
Endurance
| Specification | Value |
|---|---|
| Print head | 24-pin |
| Print head life | 400 million characters |
| Ribbon life | 10 million characters |
| Ribbon life (black, draft) | 10 million characters |
| Mean time between failures (MTBF) | 20000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 3 W |
| Power consumption (typical) | 38 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Bundled software | Epson Status Monitor |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 301 mm |
| Height | 211 mm |
| Weight | 6.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 333 mm |
| Package depth | 597 mm |
| Package height | 352 mm |
| Package weight | 8.67 kg |
Other features
| Specification | Value |
|---|---|
| Print technology | Dot matrix |
| Fonts included | Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI |
| Compatible operating systems | Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP, Windows XP SP3 or later (32-bit), Windows Server 2003 SP2 or later |
| Box contents | Driver and utilities, Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document |
| Needles | 24 Needles |
Technical details
| Specification | Value |
|---|---|
| Number of pins | 24 |
| Power consumption | 38 Watt, 3 Watt (standby) |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 24 pc(s) |
| Products per pallet (UK) | 36 pc(s) |
| Products per pallet layer | 4 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
