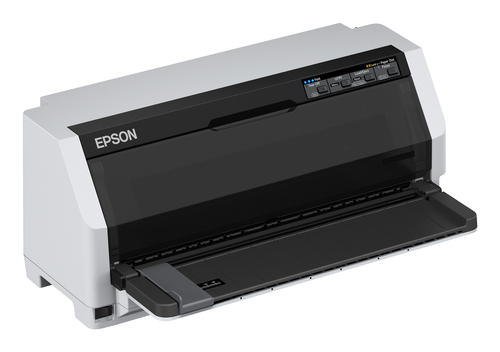

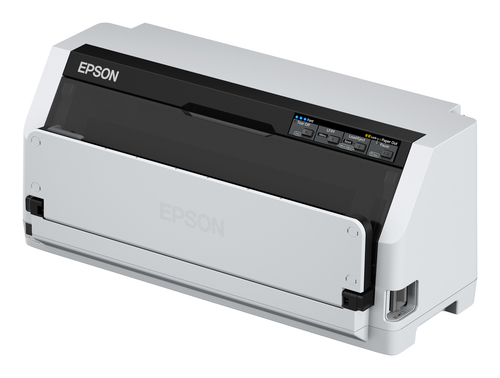

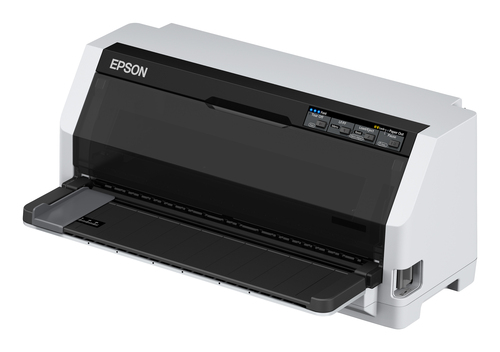

LQ-780N dot matrix printer
360 x 180 DPI 487 cps
Model LQ-780NEAN 8715946696591
50 specifications
- Weight6.7 kg
- ColourNo
- Paper tray media typesEnvelopes
- Product colourBlack, White
- Standard interfacesEthernet, Parallel, USB
- Print head24-pin
Overview
- Weight
- 6.7 kg
- Colour
- No
- Paper tray media types
- Envelopes
- Product colour
- Black, White
- Standard interfaces
- Ethernet, Parallel, USB
- Print head
- 24-pin
- Brand
- Epson
- Category
- Dot Matrix Printer
- Model
- LQ-780N
- Part numbers
- LQ-780N, C11CJ81402, C11CJ81202
- EAN / UPC
- 8715946696591, 010343965348
- Also known as
- Epson LQ-780N dot matrix printer 360 x 180 DPI 487 cps
Specifications
50 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Maximum resolution | 360 x 180 DPI |
| Maximum printing width (columns) | 106 |
| Maximum print speed | 487 cps |
| Maximum print speed (draft) | 487 cps |
| Maximum print speed (LQ) | 366 cps |
| Maximum number of copies | 6 copies |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E |
| Number of barcode fonts | 8 |
| Number of bitmap fonts | 11 |
| Bitmap fonts | Courier, Draft, Prestige, Roman |
| Number of scalable fonts | 4 |
| Scalable fonts | Roman, Roman T, Sans Serif, Sans Serif H |
| Character sets | PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO 8859-15, Roman 8, Italic |
| Number of characters | 15 |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Envelopes |
| Continuous paper thickness range | 0.12 - 0.49 mm |
| Multi-part paper thickness range | 0.12 - 0.49 mm |
| Single sheet thickness range | 0.065 - 0.15 mm |
Features
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Sound pressure level (printing) | 59 dB |
| Country of origin | Indonesia |

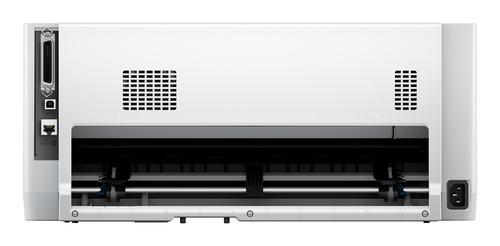

Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet, Parallel, USB |
Endurance
| Specification | Value |
|---|---|
| Print head | 24-pin |
| Print head life | 400 million characters |
| Mean time between failures (MTBF) | 35000 h |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 198-264 V |
| Power consumption (standby) | 8.3 W |
| Power consumption (typical) | 46 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2003, Windows Server 2022 |
| Windows operating systems supported | Windows 11 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 301 mm |
| Height | 211 mm |
| Weight | 6.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 325 mm |
| Package depth | 590 mm |
| Package height | 350 mm |
| Package weight | 8.31 kg |
Other features
| Specification | Value |
|---|---|
| Print technology | Dot matrix |
| Needles | 24 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 24 pc(s) |
| Products per pallet (UK) | 36 pc(s) |
