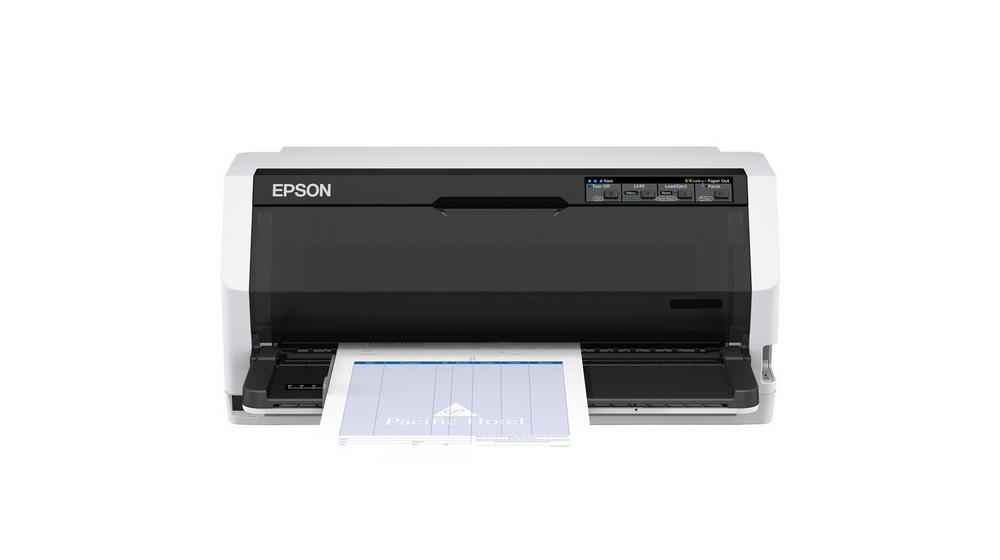

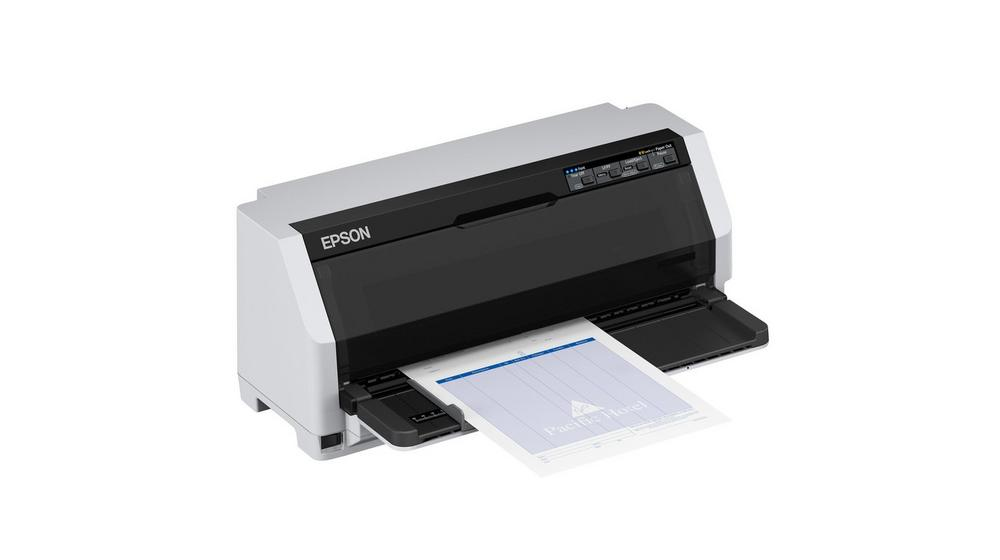

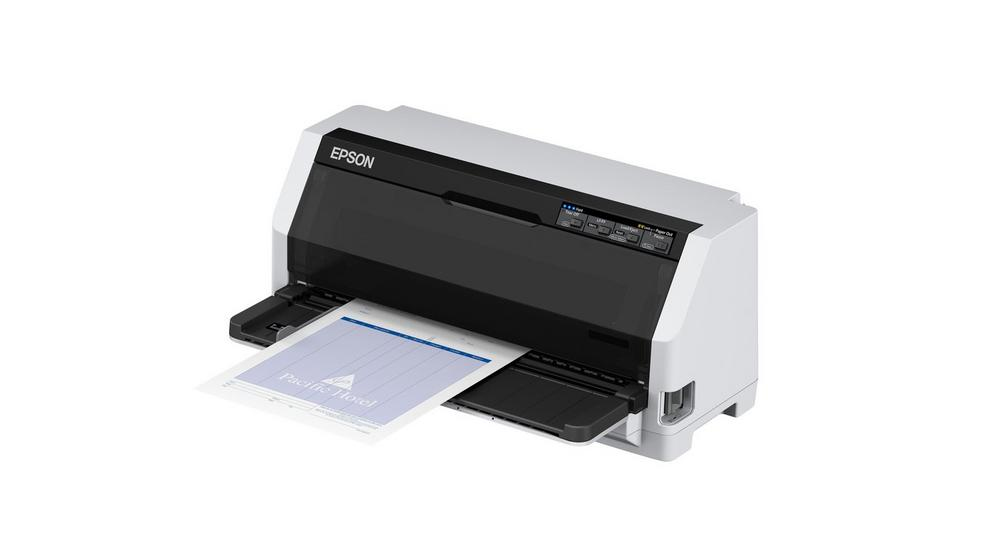

LQ-690II dot matrix printer
360 x 180 DPI 487 cps
Model LQ-690IIPart no. C11CJ82403EAN 8715946695983
33 specifications
- Weight6.8 kg
- ColourNo
- Paper feedManual, Pull tractor
- Product colourBlack, White
- Standard interfacesParallel, USB 2.0
- Print head24-pin
Overview
- Weight
- 6.8 kg
- Colour
- No
- Paper feed
- Manual, Pull tractor
- Product colour
- Black, White
- Standard interfaces
- Parallel, USB 2.0
- Print head
- 24-pin
- Brand
- Epson
- Category
- Dot Matrix Printer
- Model
- LQ-690II
- Part numbers
- C11CJ82403, C11CJ82401
- EAN / UPC
- 8715946695983, 8715946695969
- Also known as
- Epson LQ-690II dot matrix printer 360 x 180 DPI 487 cps
Specifications
33 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Maximum resolution | 360 x 180 DPI |
| Maximum printing width (columns) | 106 |
| Maximum print speed | 487 cps |
| Maximum print speed (draft) | 366 cps |
| Maximum print speed (LQ) | 121 cps |
| Maximum number of copies | 7 copies |
| Built-in barcodes | CODABAR (NW-7), Code 39, Code-128 Codabar Library, EAN128, EAN13, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E |
| Character sets | ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, Roman 8 |
Paper handling
| Specification | Value |
|---|---|
| Paper feed | Manual, Pull tractor |
| Paper tray media types | Envelopes, Labels, Plain paper, Roll |
| Continuous paper thickness range | 0.065 - 0.49 mm |
| Label thickness range | 0.16 - 0.19 mm |
| Multi-part paper thickness range | 0.12 - 0.49 mm |
| Single sheet thickness range | 0.065 - 0.15 mm |
Features
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Buffer size | 128 KB |
| Sound pressure level (printing) | 59 dB |
| Country of origin | Indonesia |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Parallel, USB 2.0 |
Endurance
| Specification | Value |
|---|---|
| Print head | 24-pin |
| Print head life | 400 million characters |
| Ribbon life | 10 million characters |
| Mean time between failures (MTBF) | 20000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 3 W |
| Power consumption (typical) | 38 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
System requirements
| Specification | Value |
|---|---|
| Bundled software | Epson Status Monitor |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 301 mm |
| Height | 211 mm |
| Weight | 6.8 kg |
