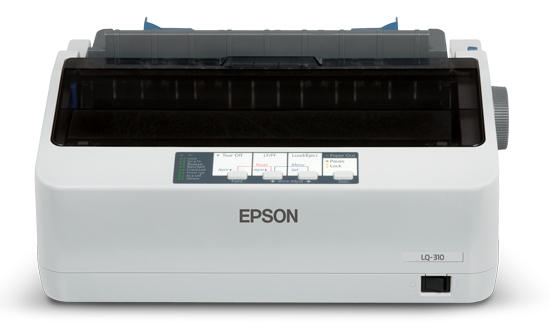

LQ-310 dot matrix printer 416 cps
Model LQ-310Part no. C11CC25301
31 specifications
- Weight4.1 kg
- ColourNo
- Cut sheet width range100 - 257 mm
- Product colourBlack, White
- Standard interfacesSerial, USB
- Print head24-pin
Overview
- Weight
- 4.1 kg
- Colour
- No
- Cut sheet width range
- 100 - 257 mm
- Product colour
- Black, White
- Standard interfaces
- Serial, USB
- Print head
- 24-pin
- Brand
- Epson
- Category
- Dot Matrix Printer
- Model
- LQ-310
- Part numbers
- C11CC25301, C11CC25331, C11CC25321
- Also known as
- Epson LQ-310 dot matrix printer 416 cps
Specifications
31 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Maximum print speed | 416 cps |
| Maximum print speed (draft) | 390 cps |
| Maximum print speed (LQ) | 129 cps |
| Character pitch | 10,12,15 cpi |
| Built-in barcodes | Code 128 (A/B/C), Code 39, EAN13, EAN8, UPC-A, UPC-E |
| Bitmap fonts | Courier, Draft, OCR-B, Orator, Orator-S, Prestige, Sans Serif, Script, Script C |
| Scalable fonts | Roman, Roman T, Sans Serif, Sans Serif H |
| Character sets | Abicomp, BRASCII, ISO 8859-15, ISO Latin 1, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8 |
Paper handling
| Specification | Value |
|---|---|
| Cut sheet width range | 100 - 257 mm |
| Cut sheet length range | 100 - 364 mm |
| Cut sheet thickness range | 0.065 - 14 mm |
| Continuous paper thickness range | 0.065 - 0.32 mm |
Features
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Buffer size | 128 KB |
| Sound pressure level (printing) | 53 dB |
| Page description languages | Epson ESC/P2, PPDS |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Serial, USB |
Endurance
| Specification | Value |
|---|---|
| Print head | 24-pin |
| Print direction | Bidirectional |
| Print head life | 400 million characters |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220 - 240 V |
| Power consumption (typical) | 22 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 362 mm |
| Depth | 275 mm |
| Height | 154 mm |
| Weight | 4.1 kg |
