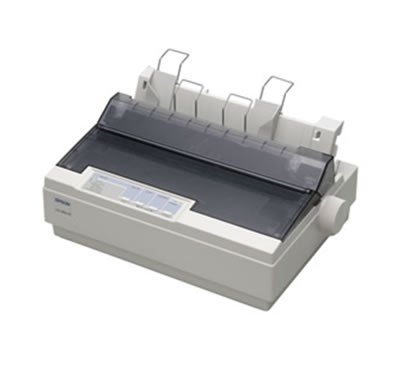

LQ-300+II
Model LQ-300+IIPart no. C11C638002EAN 8715946316956
47 specifications
- Weight4.4 kg
- ColourNo
- Maximum print sizeA4 (210 x 297 mm)
- Buffer size64 KB
- Print head24-pin
- AC input voltage200 - 240 V
Overview
- Weight
- 4.4 kg
- Colour
- No
- Maximum print size
- A4 (210 x 297 mm)
- Buffer size
- 64 KB
- Print head
- 24-pin
- AC input voltage
- 200 - 240 V
- Brand
- Epson
- Category
- Dot Matrix Printer
- Model
- LQ-300+II
- Part numbers
- C11C638002, C11C638001W3
- EAN / UPC
- 8715946316956, 8715946445687
- Also known as
- Epson LQ-300+II
Specifications
47 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Maximum printing width (columns) | 80 |
| Maximum print speed | 300 cps |
| Maximum number of copies | 3 copies |
| Built-in barcodes | Code 39, POSTNET, UPC-A, UPC-E |
| Print speed | HighSpeed-Draft: 10 cpi: 300 chars/s, LQ: 10 cpi: 75 chars/s, Draft: 10 cpi: 225 chars/s |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A4 (210 x 297 mm) |
| Paper tray media types | Envelopes, Roll |
Features
| Specification | Value |
|---|---|
| Buffer size | 64 KB |
| Sound pressure level (printing) | 49 dB |
| Country of origin | Indonesia |
Endurance
| Specification | Value |
|---|---|
| Print head | 24-pin |
| Print head life | 200 million characters |
| Ribbon life (black, LQ) | 2 million characters |
| Mean time between failures (MTBF) | 6000 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 200 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Bundled software | Epson Status Monitor |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 366 mm |
| Depth | 275 mm |
| Height | 159 mm |
| Weight | 4.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 361 mm |
| Package depth | 444 mm |
| Package height | 215 mm |
| Package weight | 5.2 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 366 x 275 x 159 mm |
| Power requirements | 20W |
| Print technology | Dot matrix |
| Fonts included | Epson DRAFT, Bitmap fonts: Roman (10cpi, 12cpi, 15cpi, Proportional), Sans Serif (10cpi, 12cpi, 15cpi, Proportional), Courier (10cpi, 12cpi, 15cpi), Prestige (10cpi, 12cpi), Script (10cpi), OCR-B (10cpi), Orator (10cpi), Orator-S (10cpi), Script C (proportional); Scalable fonts: Roman, Sans Serif, R |
| Compatible operating systems | Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP |
| Box contents | Driver and utilities, Main unit, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document |
| I/O ports | 1 x IEEE1284 1 x USB 1 x Parallel 1 x Serial |
| Needles | 24 Needles |
| Paper handling | Cut sheet paper guide, Optional 50 sheet cut sheet feeder, Push/pull tractor feed, Optional push/pull tractor feed |
| Standard media sizes | A4 |
Technical details
| Specification | Value |
|---|---|
| Number of pins | 24 |
| Sustainability certificates | ENERGY STAR |
| Power consumption | 20 Watt |
Logistics data
| Specification | Value |
|---|---|
| Pallet height (UK) | 2.08 m |
| Pallet length (UK) | 120 cm |
| Products per pallet | 36 pc(s) |
| Products per pallet (UK) | 54 pc(s) |
| Products per pallet layer | 4 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
