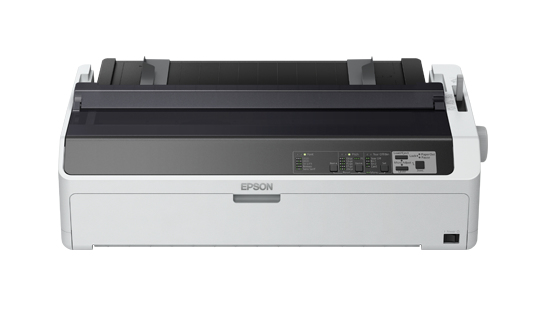

FX-2175II dot matrix printer
Model FX-2175IIPart no. C11CF38509
29 specifications
- Weight9.4 kg
- ColourNo
- Cut sheet width range100 - 420 mm
- Product colourBlack, White
- Standard interfacesParallel, USB 2.0
- Print head9-pin
Overview
- Weight
- 9.4 kg
- Colour
- No
- Cut sheet width range
- 100 - 420 mm
- Product colour
- Black, White
- Standard interfaces
- Parallel, USB 2.0
- Print head
- 9-pin
- Brand
- Epson
- Category
- Dot Matrix Printer
- Model
- FX-2175II
- Part number
- C11CF38509
- Also known as
- Epson FX-2175II dot matrix printer
Specifications
29 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Maximum printing width (columns) | 136 |
| Line spacing | 4.23 mm |
Paper handling
| Specification | Value |
|---|---|
| Cut sheet width range | 100 - 420 mm |
| Cut sheet length range | 100 - 420 mm |
| Continuous paper width range | 101.6 - 406.4 mm |
| Continuous paper length range | 101.6 - 558.8 mm |
| Cut sheet thickness range | 0.065 - 0.14 mm |
| Continuous paper thickness range | 0.065 - 0.39 mm |
Features
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Buffer size | 128 KB |
| Sound pressure level (printing) | 56 dB |
| Page description languages | Epson ESC/P2, PPDS |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Parallel, USB 2.0 |
Endurance
| Specification | Value |
|---|---|
| Print head | 9-pin |
| Print direction | Bidirectional |
| Print head life | 200 million characters |
| Ribbon life | 12 million characters |
| Mean time between failures (MTBF) | 15000 h |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220 - 240 V |
| Power consumption (typical) | 54 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 362 mm |
| Depth | 375 mm |
| Height | 176.5 mm |
| Weight | 9.4 kg |
