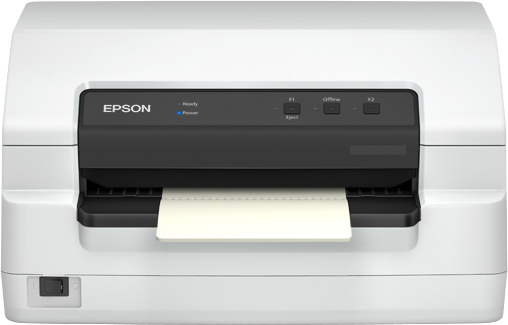

C11CJ11401A0
Model C11CJ11401A0EAN 8715946691497
47 specifications
- Weight7.8 kg
- Maximum resolution180 x 360 DPI
- Multi-part paper thickness range0.12 - 0.53 mm
- Buffer size128 KB
- Standard interfacesRS-232, USB
- Print head24-pin
Overview
- Weight
- 7.8 kg
- Maximum resolution
- 180 x 360 DPI
- Multi-part paper thickness range
- 0.12 - 0.53 mm
- Buffer size
- 128 KB
- Standard interfaces
- RS-232, USB
- Print head
- 24-pin
- Brand
- Epson
- Category
- Dot Matrix Printer
- Model
- C11CJ11401A0
- Part number
- C11CJ11401A0
- EAN / UPC
- 8715946691497
- Also known as
- Epson PLQ-35
Specifications
47 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Maximum resolution | 180 x 360 DPI |
| Maximum printing width (columns) | 94 |
| Maximum print speed | 10 cps |
| Maximum print speed (draft) | 10 cps |
| Maximum print speed (LQ) | 10 cps |
| Maximum print speed (NLQ) | 10 cps |
| Normal print speed | 10 cps |
| Character pitch | 10,12,15 cpi |
| Maximum number of copies | 6 copies |
| Built-in barcodes | Code 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, EAN8, Matrix 2/5, POSTNET, Interleaved 2/5, EAN13, Code 39, Industrial 2/5 |
| Bitmap fonts | Courier, Draft, OCR-B, Orator, Orator-S, Prestige, Roman, Sans Serif, Script, Script C |
| Character sets | ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAPTEC, PCAR864, Roman 8 |
| Number of characters | 14 |
| Print speed | HighSpeed-Draft: 480 cpi: 10 chars/s, Draft: 360 cpi: 10 chars/s, LQ: 120 cpi: 10 chars/s, Ultra Speed-Draft: 540 cpi: 10 chars/s |
Paper handling
| Specification | Value |
|---|---|
| Multi-part paper thickness range | 0.12 - 0.53 mm |
| Single sheet thickness range | 0.065 - 0.19 mm |
Features
| Specification | Value |
|---|---|
| Buffer size | 128 KB |
| Sound pressure level (printing) | 55 dB |
| Sound pressure level (quiet mode) | 52 dB |
| Country of origin | Indonesia |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | RS-232, USB |
| Optional connectivity | Serial (RS-232) |
Endurance
| Specification | Value |
|---|---|
| Print head | 24-pin |
| Print head life | 400 million characters |
| Mean time between failures (MTBF) | 35000 h |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220 - 240 V |
| Power consumption (standby) | 0.7 W |
| Power consumption (typical) | 61 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 38 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 384 mm |
| Depth | 280 mm |
| Height | 203 mm |
| Weight | 7.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 365 mm |
| Package depth | 455 mm |
| Package height | 255 mm |
| Package weight | 9.27 kg |
Other features
| Specification | Value |
|---|---|
| Print technology | Dot matrix |
| Fonts included | Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI |
| Box contents | Power cable, Ribbon, Setup guide, User manual (CD) |
| Needles | 24 Needles (2 x 12) |
Technical details
| Specification | Value |
|---|---|
| Number of pins | 24 |
| Power consumption | 61 Watt, 0.7 Watt (standby) |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet (UK) | 48 pc(s) |
