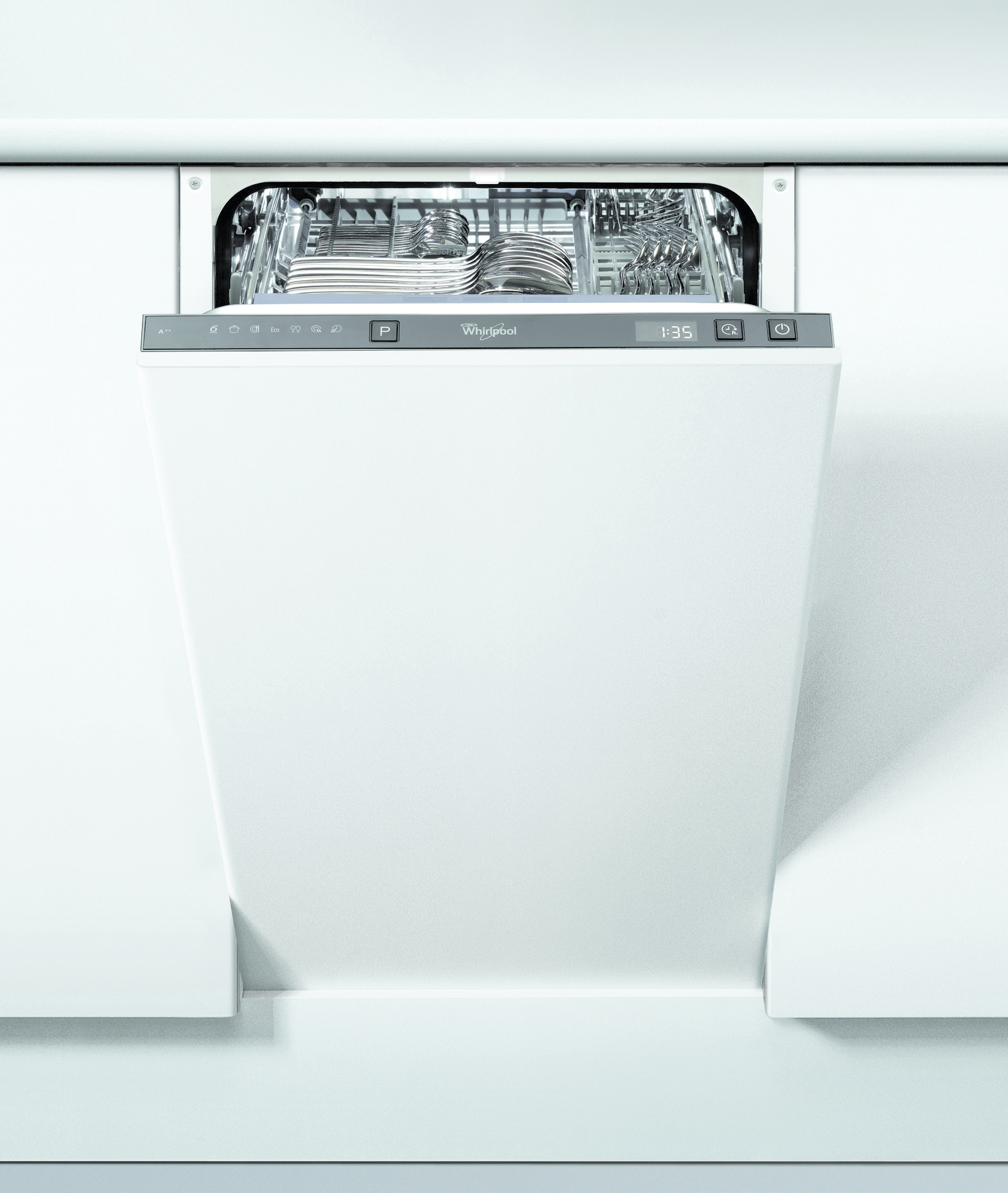

Whirlpool ADG 196
Model ADG 196EAN 8003437216305
38 specifications
- Energy classA++
- Noise45 dB
- Weight37.5 kg
- Appliance placementFully built-in
- Number of place settings10 place settings
- Multitab optionYes
Overview
- Energy class
- A++
- Noise
- 45 dB
- Weight
- 37.5 kg
- Appliance placement
- Fully built-in
- Number of place settings
- 10 place settings
- Multitab option
- Yes
- Brand
- Whirlpool
- Category
- Dishwasher
- Model
- ADG 196
- Part number
- ADG 196
- EAN / UPC
- 8003437216305
- Also known as
- Whirlpool ADG 196 dishwasher Fully built-in 10 place settings
Specifications
38 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Appliance placement | Fully built-in |
| Door colour | Not applicable |
| Control panel colour | Stainless steel |
| Built-in display | Yes |
| Cord length | 1.5 m |
| Inlet hose length | 1.5 m |
| Outlet hose length | 1.6 m |
Performance
| Specification | Value |
|---|---|
| Number of place settings | 10 place settings |
| Number of washing programs | 7 |
| Noise level | 45 dB |
| Dishwashing programs | Eco, Glass/Delicate, Quick |
| Number of temperature settings | 6 |
| Cycle time | 170 min |
| Delayed start timer | Yes |
| Delay start (max) | 24 h |
| AquaStop function | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Multitab option | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (legacy scale) | A++ |
| Energy consumption per cycle | 0.75 kWh |
| Water consumption per cycle | 8 L |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Current | 10 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 448 mm |
| Depth | 550 mm |
| Height | 715 mm |
| Weight | 37.5 kg |
| Installation compartment width | 45 cm |
| Installation compartment depth | 58 cm |
| Installation compartment height (min) | 82 cm |
| Installation compartment height (max) | 87 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 485 mm |
| Package depth | 635 mm |
| Package height | 884 mm |
| Package weight | 42.5 kg |
Other features
| Specification | Value |
|---|---|
| Annual energy consumption | 211 kWh |
| Annual water consumption | 2380 L |
| Drying class | A |
