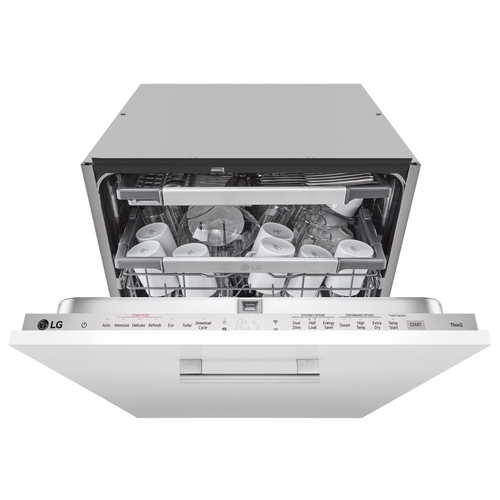

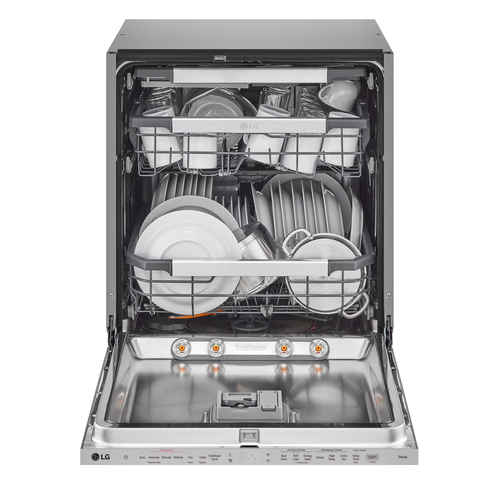

DB476TXS dishwasher Fully built-in 14 place settings
Model DB476TXSEAN 8806096108475
173 specifications
- Energy classA
- Noise43 dB
- Weight45 kg
- Appliance placementFully built-in
- Number of place settings14 place settings
- Automatic door openingYes
Overview
- Energy class
- A
- Noise
- 43 dB
- Weight
- 45 kg
- Appliance placement
- Fully built-in
- Number of place settings
- 14 place settings
- Automatic door opening
- Yes
- Brand
- LG
- Category
- Dishwasher
- Model
- DB476TXS
- Part number
- DB476TXS
- EAN / UPC
- 8806096108475, 8806096350447
- Also known as
- LG DB476TXS dishwasher Fully built-in 14 place settings
Specifications
173 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Appliance placement | Fully built-in |
| Inner components colour | Grey |
| Product size | Full size (60 cm) |
| Product height | Standard (80 - 85 cm) |
| Custom panel-ready | Yes |
| Door colour | Not applicable |
| Control panel colour | Silver |
| Control type | Touch |
| Built-in display | Yes |
| Display type | LED |
| Display digits | 4 digits |
| Built-in water softener | No |
| Concealed heating element | Yes |
| Water fill | Cold |
| Number of baskets | 3 basket(s) |
| Baskets adjustable placement | Lower, Upper |
| Upper basket adjustable height | Yes |
| Upper basket adjustable height levels | 3 |
| Upper basket rack | Foldable |
| Maximum dish size (upper basket) | 16.5 cm |
| Lower basket rack | Foldable |
| Lower basket rack type | Double |
| Lower basket safety stop | No |
| Suitable for undercounter installation | No |
| Maximum dish size (lower basket) | 30 cm |
| Cutlery compartment colour | Grey |
| Cutlery compartment type | Drawer |
| Removable cutlery basket | No |
| Additional cutlery tray | Yes |
| Included number of shelves | 3 |
| Tub material | Stainless steel |
| Languages | English |
| Door hinge | Sliding |
| Self-balancing hinge | Yes |
| Door panel included | No |
| Adjustable upper basket cup racks | Yes |
| Control panel type | English |
| Electronic control | Yes |
| Lower basket folding tines | 8 |
Performance
| Specification | Value |
|---|---|
| Number of place settings | 14 place settings |
| Number of washing programs | 10 |
| Noise emission class | B |
| Noise level | 43 dB |
| Dishwashing programs | Auto, Delicate, Download Cycle, Eco, Express, Intensive, Maintenance wash, Rinse, Steam, Turbo |
| Drying system | Condensation |
| AI wash | No |
| Automatic programs | Yes |
| Drying performance | B |
| Number of temperature settings | 2 |
| Temperature (max) | 80 °C |
| Cycle time | 299 min |
| Cycle time (quick washing program) | 78 min |
| Integrated timer | Yes |
| Delay start (min) | 1 h |
| Delayed start timer | Yes |
| Countdown timer | Yes |
| Delay start (max) | 12 h |
| Left-on mode duration | 10 min |
| AquaStop function | Yes |
| Extra dry | Yes |
| Glass protection | Yes |
| Overflow protection | Yes |
| Overflow protection system | AquaStop |
| Downloadable additional programs | Yes |
| Half-load | Yes |
| Auto power off | Yes |
| Load sensor | No |
| Self-cleaning | No |
| Automatic load recognition | No |
| Fast+ function | No |
| Inverter technology | Yes |
| Motor type | Brushless |
| Number of spray zones | 2 |
| Powder detergent function | Yes |
| Rinse Plus function | No |
| Tablet detergent function | Yes |
| Tray clean function | No |
| Dirt sensor | Yes |
| Eco program duration | 299 min |
Ergonomics
| Specification | Value |
|---|---|
| Automatic door opening | Yes |
| Dosage assistant | No |
| Automatic detergent detection | No |
| Multitab option | Yes |
| Adjustable rinse dosage | Yes |
| Child lock | Yes |
| Adjustable feet | Yes |
| Feet adjustment | 6 cm |
| Removable top | No |
| Floor indicator light | Yes |
| Ready indicator | No |
| Backlight colour | White |
| Buzzer | Yes |
| Customizable interior | Yes |
| Hose extender compatible | No |
| Independently connects to the internet | No |
| Interior light | No |
| LED backlight | Yes |
| LED program stage indicator | Yes |
| Remaining time indication | Yes |
| Rinse aid indicator | Yes |
| Salt indicator | Yes |
| Smartphone/tablet remote support | Yes |
| App required for full functionality | No |
| Apps functions | Favourite programs, Notifications, Remote diagnostics, Remote monitoring |
| Apps supported | LG ThinQ |
| Bluetooth | No |
| Wi-Fi controlled | Yes |
| Near Field Communication (NFC) | No |
| Feet adjustment type | Front & Rear |
| Feet extension (min) | 6 cm |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Energy efficiency scale | A to G |
| Energy consumption per cycle | 0.543 kWh |
| Water consumption per cycle | 9.5 L |
| Energy consumption per 100 cycles | 54 kWh |
| Power consumption (standby) | 0.49 W |
| Power consumption (off) | 0.49 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Energy efficiency index (EEI) | 31.9 |
| Washing efficiency index (EU 2017/1369) | 1.121 |
| Drying efficiency index (EU 2017/1369) | 1.061 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 598 mm |
| Depth | 554 mm |
| Height | 815 mm |
| Weight | 45 kg |
| Installation compartment width | 60.5 cm |
| Installation compartment depth | 60 cm |
| Installation compartment height | 88 cm |
| Installation compartment height (max) | 88 cm |
Brand-specific features
| Specification | Value |
|---|---|
| LG technologies (dish washing) | Auto Open Dry, DirectDrive Motor™, Dual Zone Wash, EasyRack™ Plus, Height Adjustable 3rd Rack, Inverter Direct Drive™, QuadWash™, Smart Rack+™, Smart diagnosis, ThinQ™, TrueSteam™, Turbo cycle |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | No |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 683 x 654 x 840 mm |
| Package volume | 375213 cm³ |
| Package width | 683 mm |
| Package depth | 654 mm |
| Package height | 840 mm |
| Package weight | 48.9 kg |
Supplier features
| Specification | Value |
|---|---|
| Language version | English |
| Manual languages | English |
| Product or Article Information Sheet available? | Yes |
Technical details
| Specification | Value |
|---|---|
| PSTI certified | Yes |
| Extra Drying function | Yes |
| Furniture door required | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | South Korea |
| Dimensions (WxDxH) | 598 x 554 x 815 mm |
| Installation compartment dimensions (WxDxH) | 605 x 600 x 880 mm |
| Number of cycles | 10 |
| Professional installation required | No |
| Quick wash | Yes |
| Required tools | Standard tool box |
| Spare part retention | 7 year(s) |
| Steam Clean function | Yes |
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Expanded Polystyrene (EPS) packaging weight | 669.9 g |
| Metal packaging weight | 0 g |
| Paper packaging weight | 2.97 kg |
| Plastic packaging weight | 212.1 g |
| Wood packaging weight | 0 g |
| Harmonized System (HS) code | 84221100 |
| Master (outer) case gross weight | 48.9 kg |
| Master (outer) case height | 840 mm |
| Master (outer) case length | 654 mm |
| Master (outer) case width | 683 mm |
| Polyethylene (PE) packaging weight | 65.34 g |
| Polypropylene (PP) packaging weight | 134.76 g |
| Polystyrene (EPS/EPP) packaging weight | 12 g |
| Quantity per pack | 1 pc(s) |
| Rubber packaging weight | 0 g |
| Total packaging weight | 3.86 kg |
| Minimum order quantity | 1 pc(s) |
| UK Trade Tariff code | 8422110000 |
