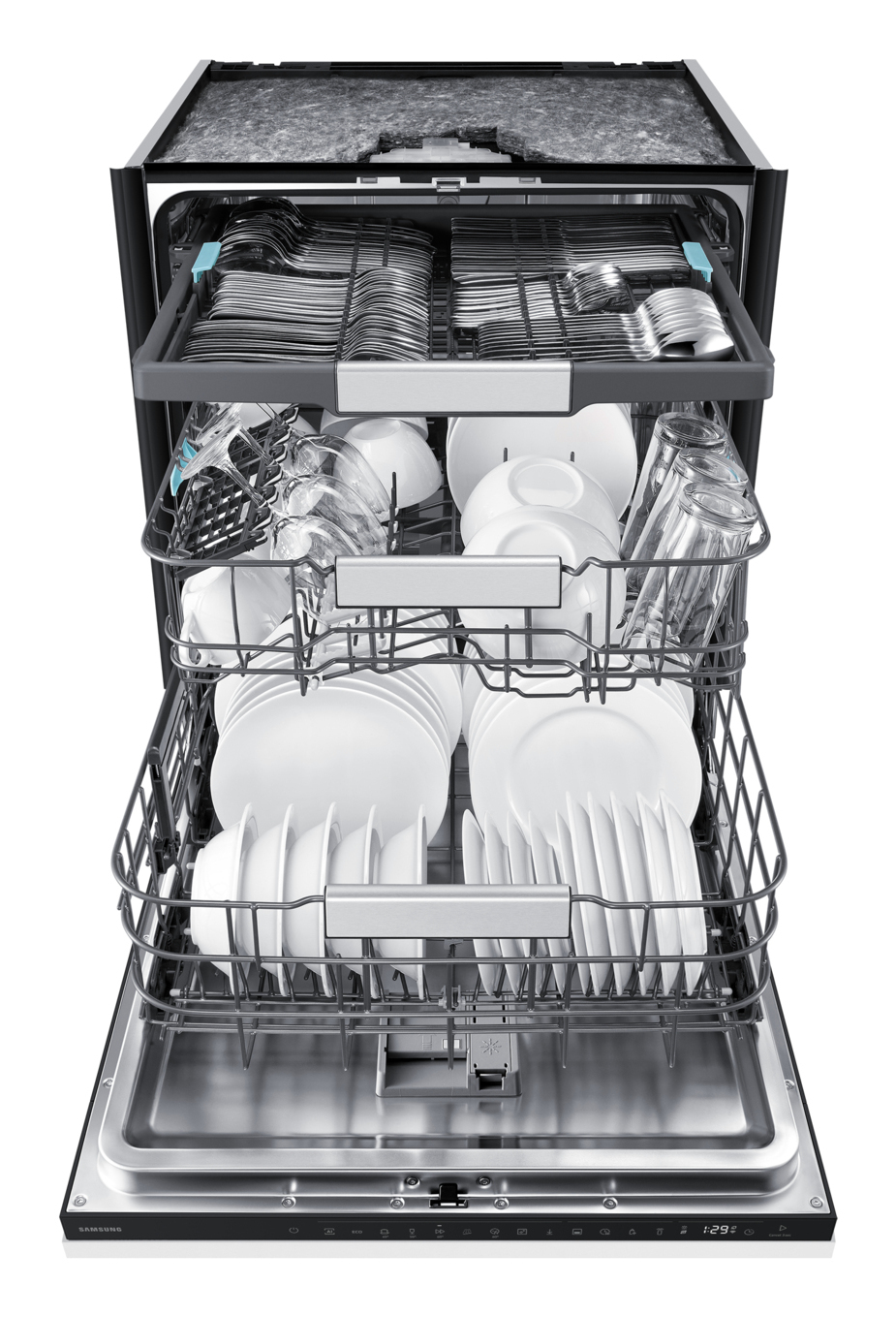

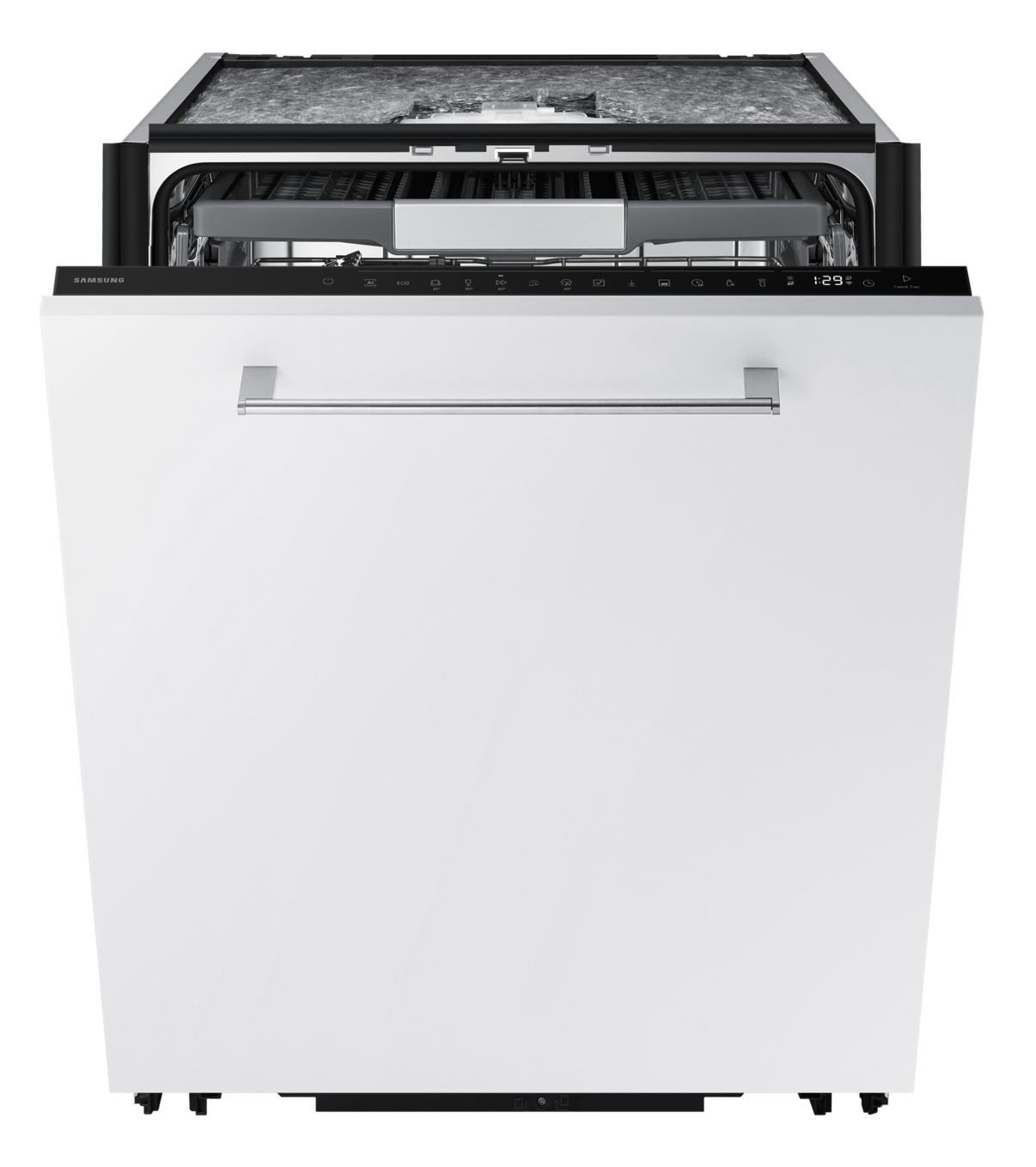

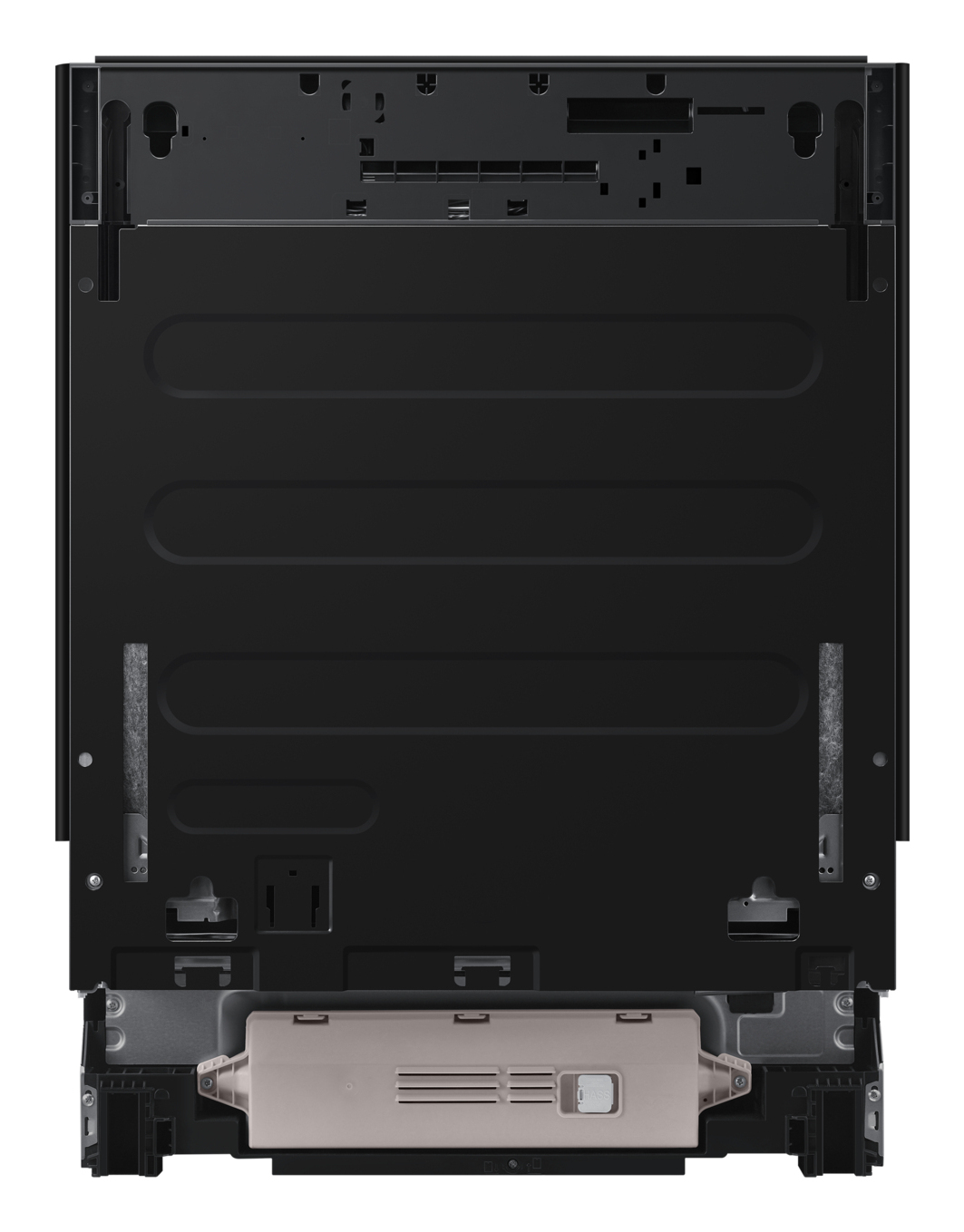

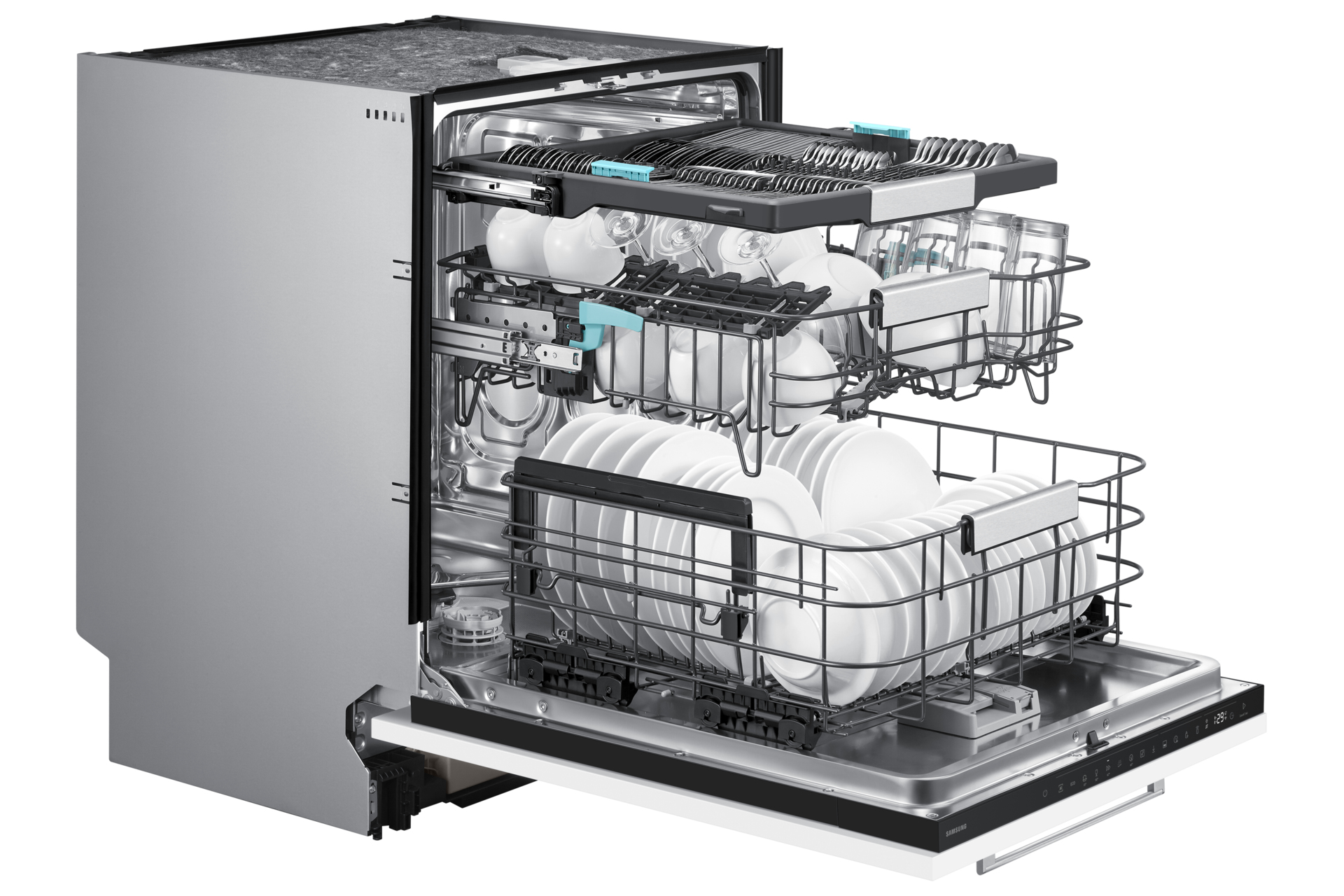

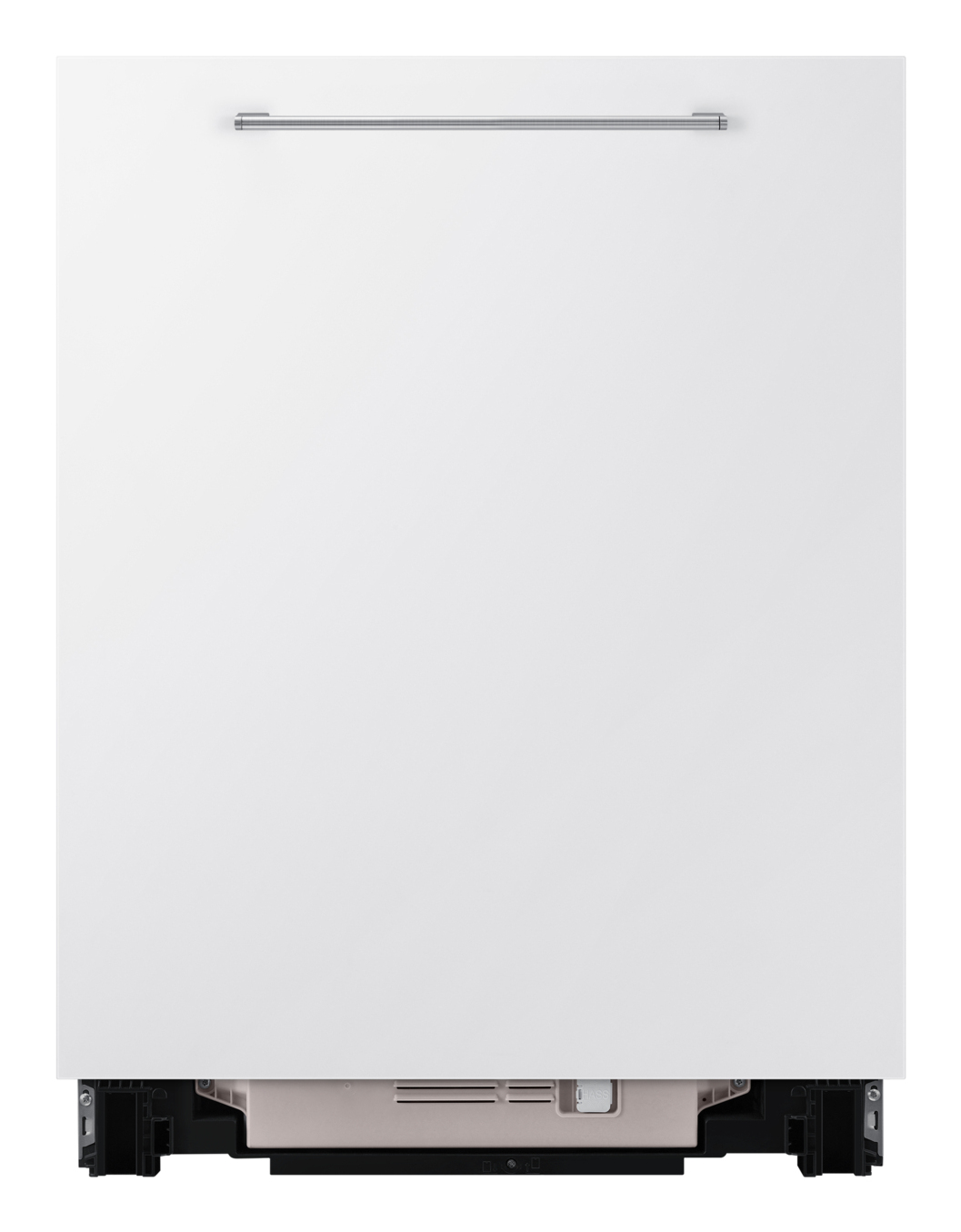

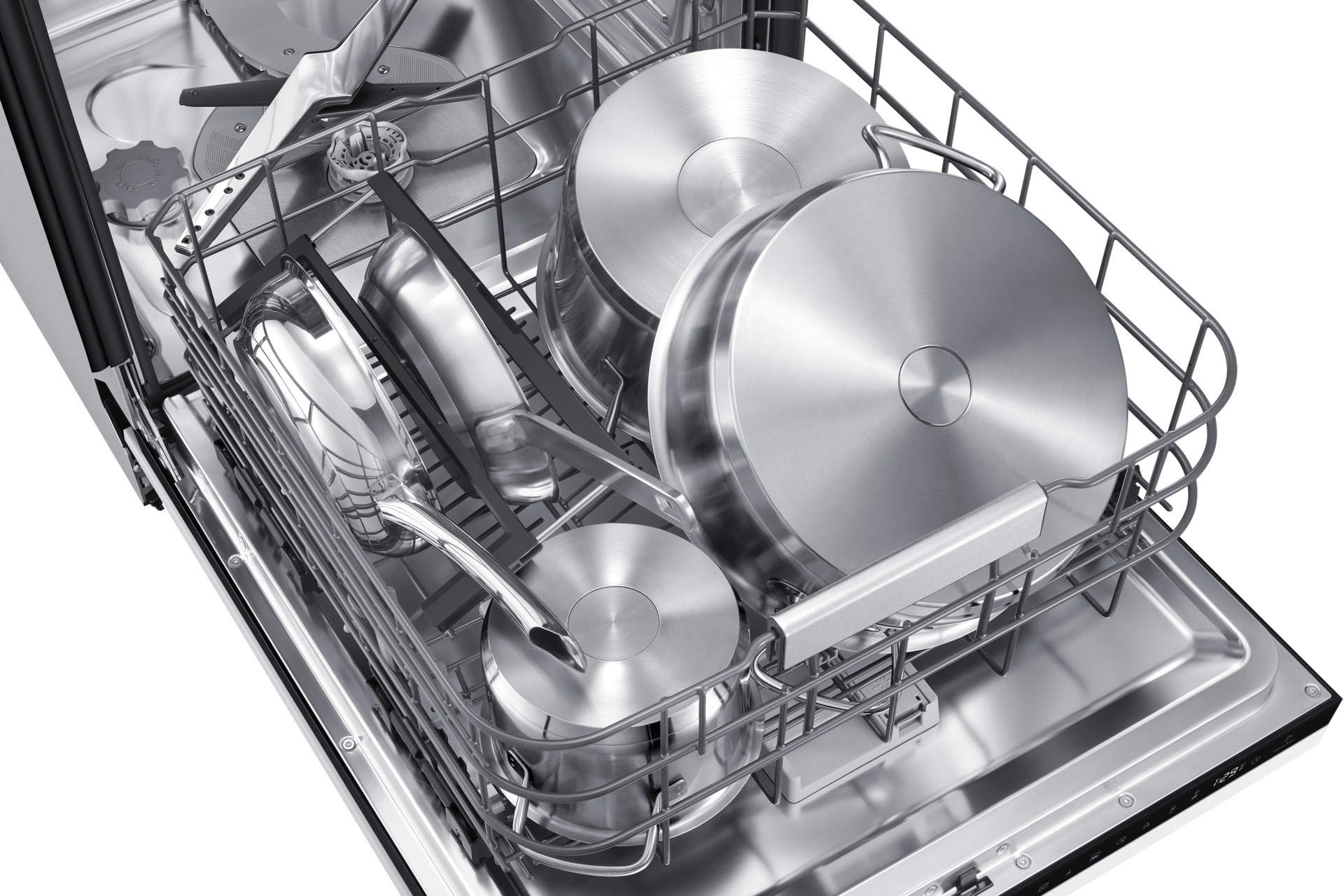

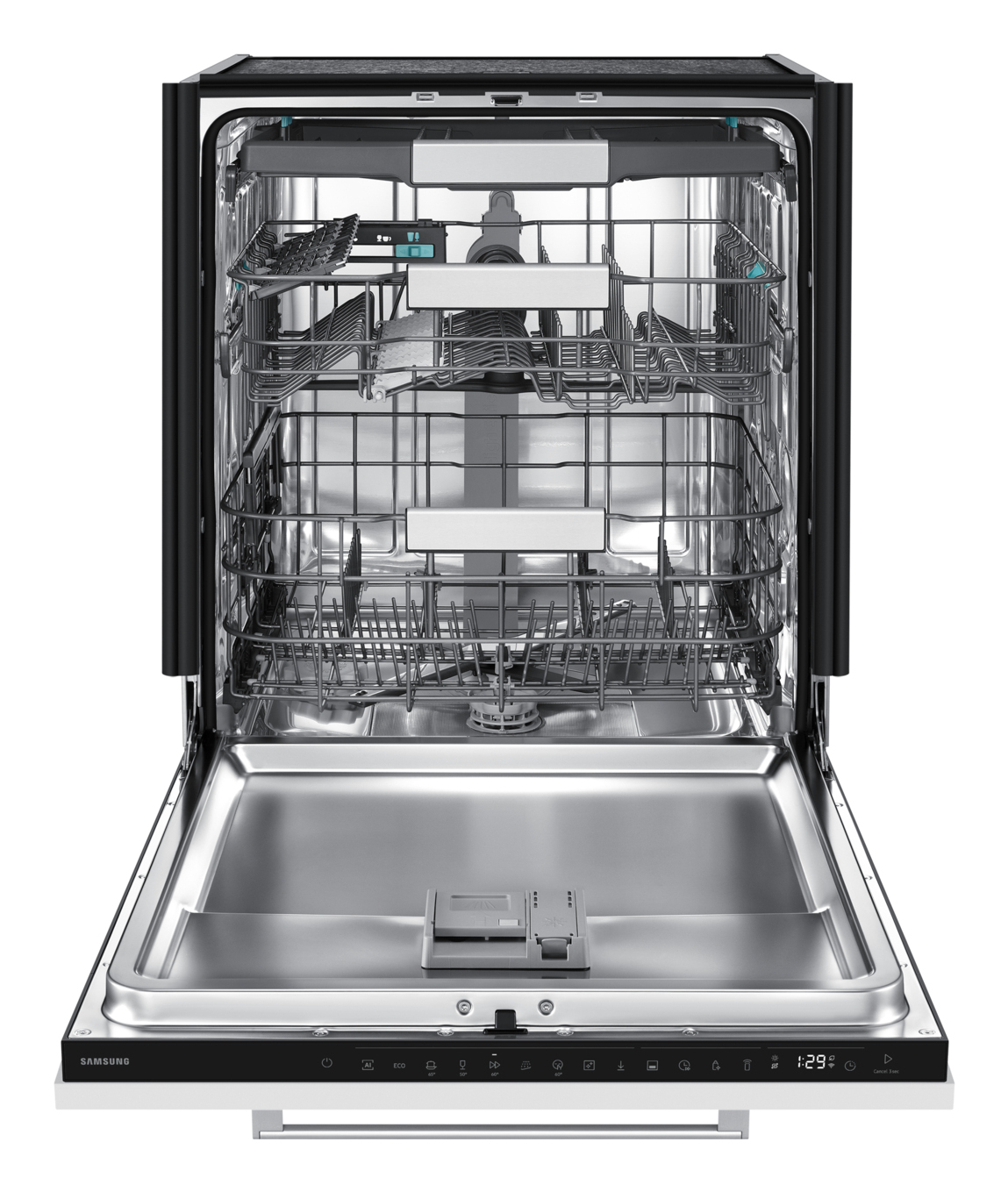

DW80H77VAB0U1 dishwasher Fully built-in 14 place settings
Model DW80H77VAB0U1EAN 8806097970552
56 specifications
- Energy classA
- Noise42 dB
- Weight42.5 kg
- Appliance placementFully built-in
- Number of place settings14 place settings
- Adjustable feetYes
Overview
- Energy class
- A
- Noise
- 42 dB
- Weight
- 42.5 kg
- Appliance placement
- Fully built-in
- Number of place settings
- 14 place settings
- Adjustable feet
- Yes
- Brand
- Samsung
- Category
- Dishwasher
- Model
- DW80H77VAB0U1
- Part number
- DW80H77VAB0U1
- EAN / UPC
- 8806097970552
- Also known as
- Samsung DW80H77VAB0U1 dishwasher Fully built-in 14 place settings
Specifications
56 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Appliance placement | Fully built-in |
| Product size | Full size (60 cm) |
| Custom panel-ready | Yes |
| Door colour | Not applicable |

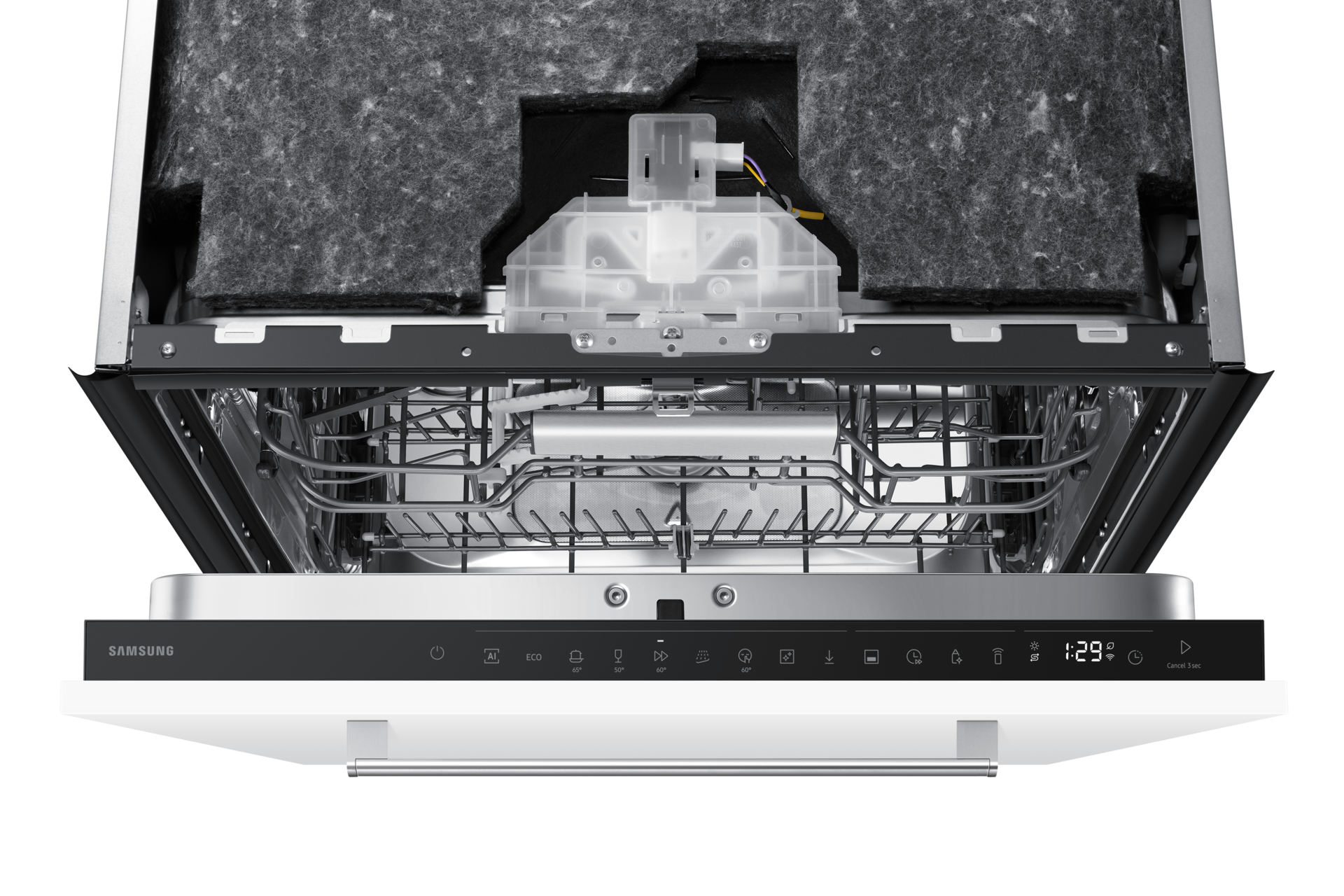

| Control type | Touch |
| Built-in display | Yes |
| Built-in water softener | Yes |

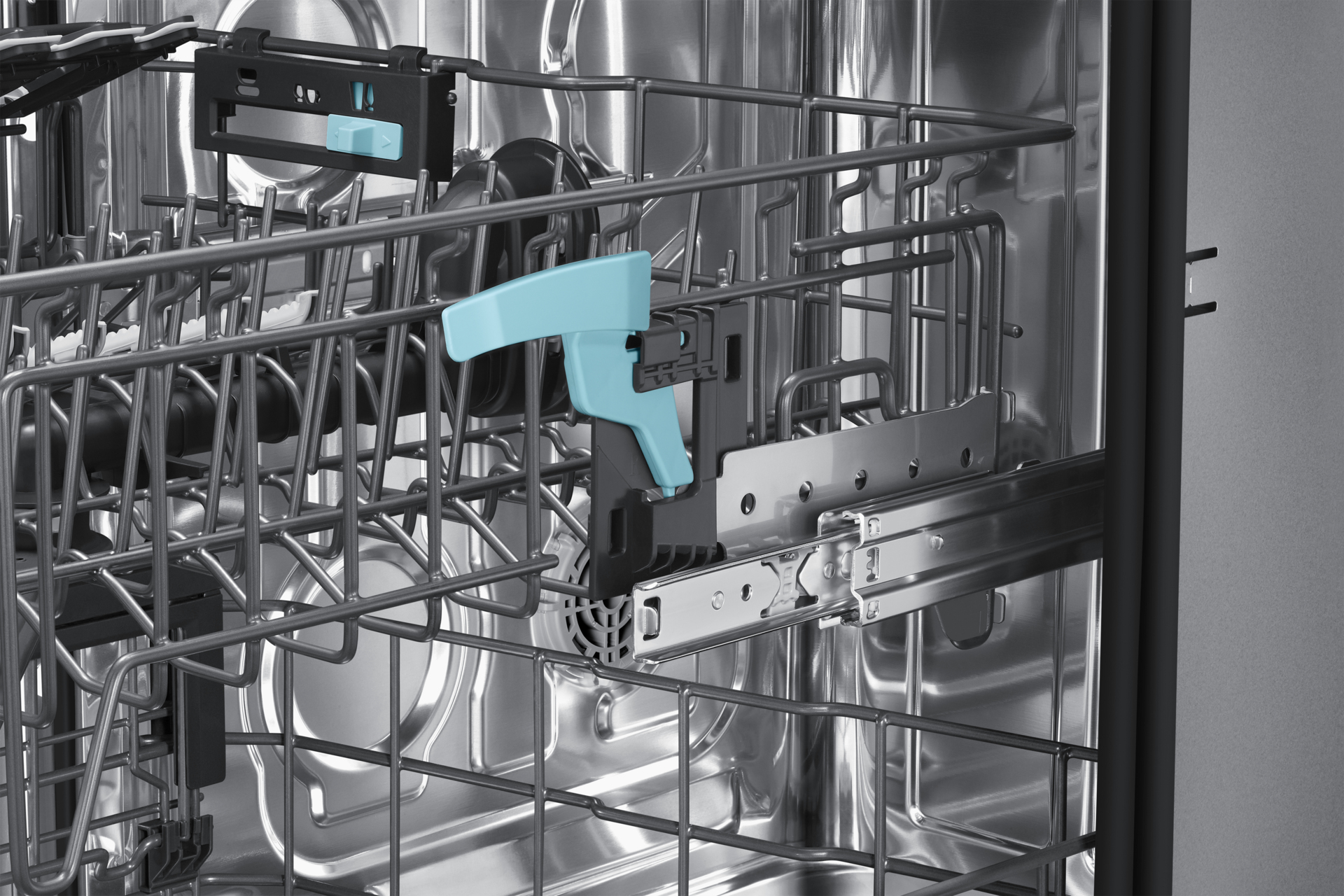

| Upper basket adjustable height | Yes |
| Cutlery compartment type | Tray |
Performance
| Specification | Value |
|---|---|
| Number of place settings | 14 place settings |
| Number of washing programs | 9 |
| Noise emission class | B |
| Noise level | 42 dB |
| Dishwashing programs | Intensive, Delicate, Eco, Express, Prewash, Extra quiet, Hygiene+ |
| AI wash | Yes |
| Wash performance | 1.121 |
| Drying performance | 1.061 |
| Cycle time | 314 min |
| Delayed start timer | Yes |
| AquaStop function | Yes |
| Downloadable additional programs | Yes |
| Half-load | Yes |
| Number of spray zones | 3 |
Ergonomics
| Specification | Value |
|---|---|
| Adjustable feet | Yes |
| Feet adjustment | 8 cm |
| Floor indicator light | Yes |
| Interior light | Yes |
| Remaining time indication | Yes |
| Smartphone/tablet remote support | Yes |
| Apps supported | SmartThings |
| Wi-Fi controlled | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Energy efficiency scale | A to G |
| Water consumption per cycle | 9.4 L |
| Energy consumption per 100 cycles | 54 kWh |
| Connected load (max) | 2100 W |
| Circulation motor power | 53 W |
| Drain pump power | 35 W |
| Power consumption (off) | 0.48 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Energy efficiency index (EEI) | 31.9 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 595 mm |
| Depth | 555 mm |
| Height | 815 mm |
| Weight | 42.5 kg |
| Installation compartment width | 60 cm |
| Installation compartment depth | 55.5 cm |
| Installation compartment height (min) | 82 cm |
| Installation compartment height (max) | 90 cm |
Brand-specific features
| Specification | Value |
|---|---|
| Samsung technologies (dish washing) | WaterJetClean, Active Fan Dry, AutoRelease, Machine Care, Speed Booster, AI Energy Mode |
Packaging data
| Specification | Value |
|---|---|
| Package width | 670 mm |
| Package depth | 660 mm |
| Package height | 882 mm |
| Package weight | 47 kg |
Other features
| Specification | Value |
|---|---|
| Country of origin | Thailand |
